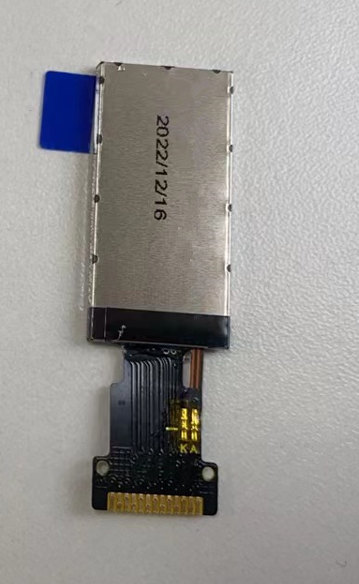

0.95 inch 120X240 resolution AMOLED display

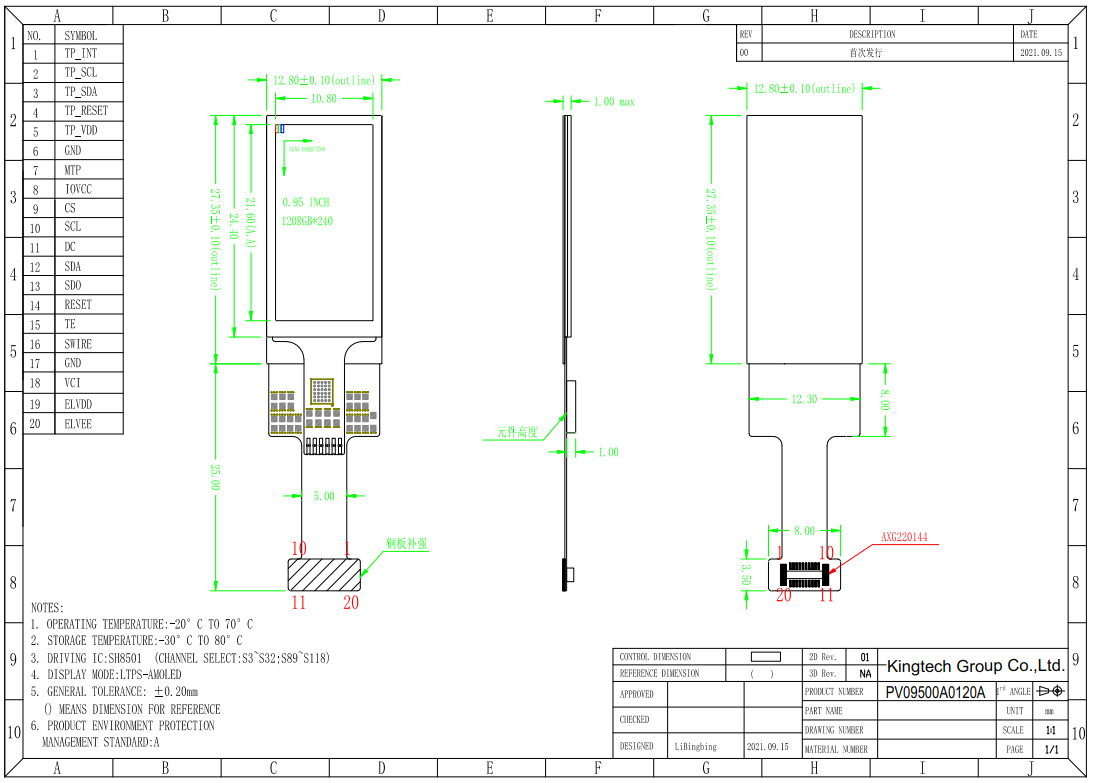

| Item | 0.95 inch IPS 120×240 SPI AMOLED display |
| Model No. | PV09500A0120A |
| Resolution | 120*240 |
| Outline Dimension (mm) | 16.32*29.76*1.68 |
| Active Area (mm) | 13.82*23.04 |
| Viewing Angle | IPS |
| Brightness | 450nits |
| Interface | SPI |
| Backlight | / |
| Driving IC | SH8501 |
| PIN No. | 20 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- AMOLED
- 120X240
- Stable supply
- IPS / Wide viewing angle / All viewing angle
- SPI interface
- 450nits brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
