1.2 inch 390×390 resolution MIPI/SPI super thiner round wearable AMOLED display
| Item | 1.2 inch 390×390 round AMOLED display |
| Model No | PV01202PY24C |
| Resolution | 390×390 |
| Outline Dimension | 33.22(W)×34.72(H)×0.68(T) |
| Active Area(mm) | φ30.42 |
| Brightness | 350nits |
| Viewing Angle | All |
| Interface | MIPI /SPI |
| Driving IC | RM67162 |
| PIN | 24 |
| Operating Temperature | -20 to +60℃ |
| Storage Temperature | -30 to +70℃ |
| Touch | Can custom capacitive touch |
For product pricing,customization,or other inquiries:
Share to:
1.2 inch390x390 resolution MIPI/SPI super thiner round wearable AMOLED display
1. PV01202PY24C mainly application smart watch and wearable devices
2. It with IPS viewing angle , RM67162 driver IC , MIPI+SPI Interface.
3. And it can custom the touch panel as customer ‘s requirement .
4. AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super power saving of … power. It can be well used for both indoor and outdoor.
1.2 inch sunlight readable AMOLDE front view
1.2 inch sunlight readable round AMOLDE back view

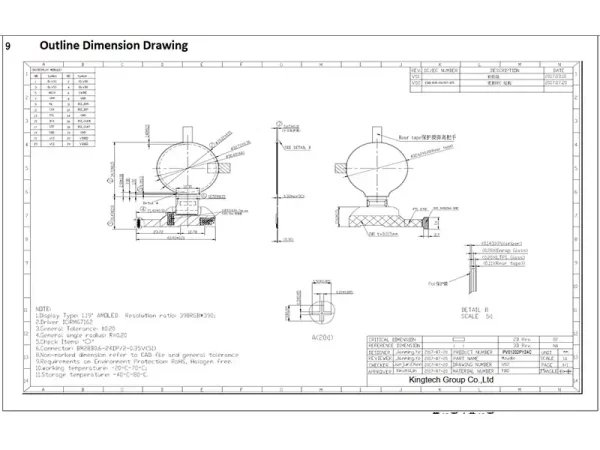

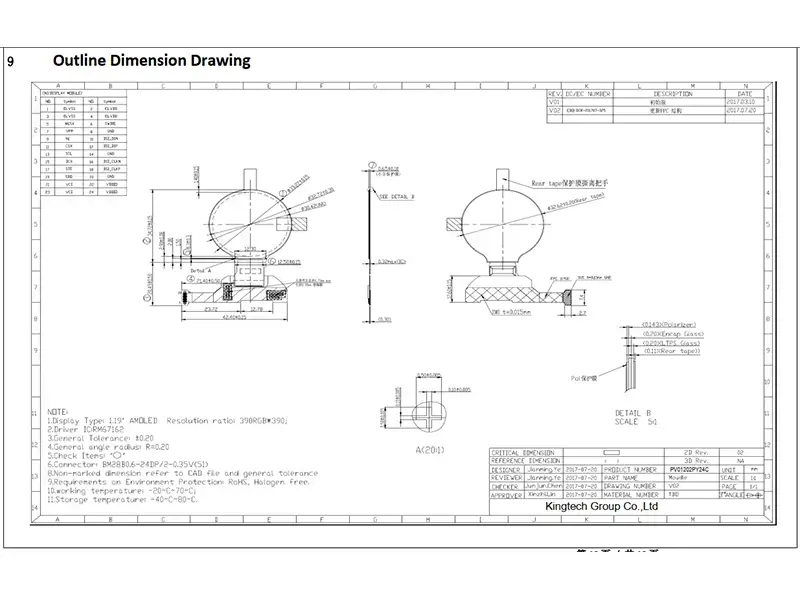

1.2 inch round AMOLDE Machine Drawing
