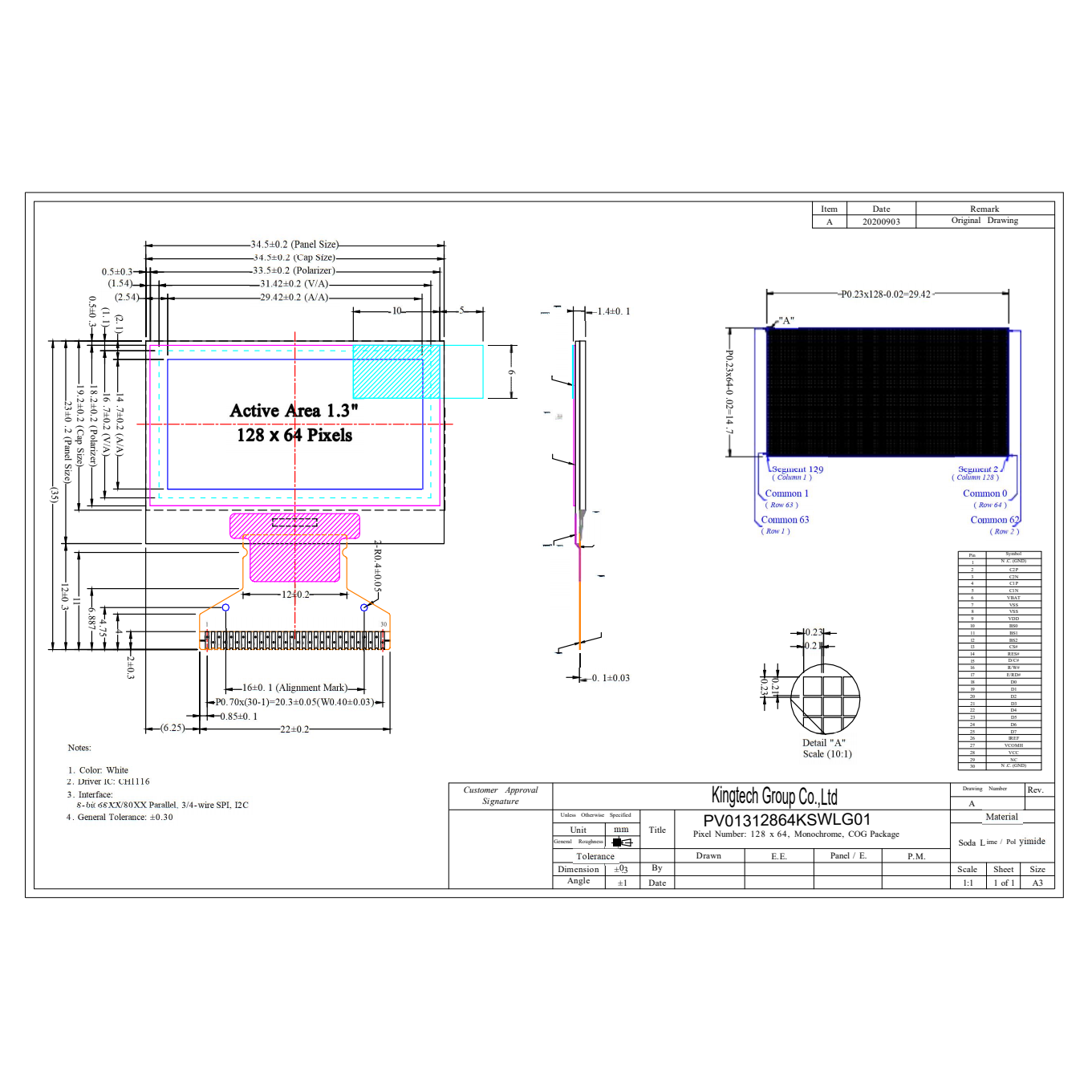

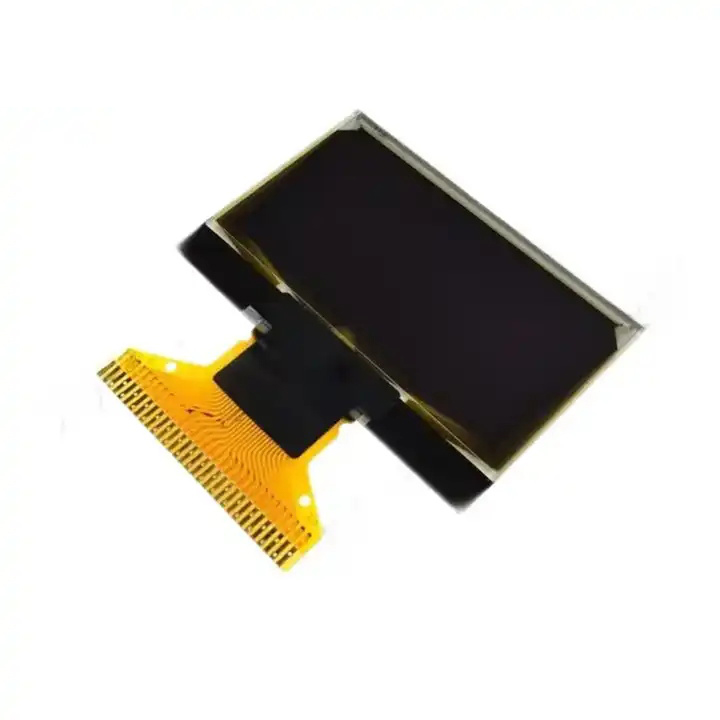

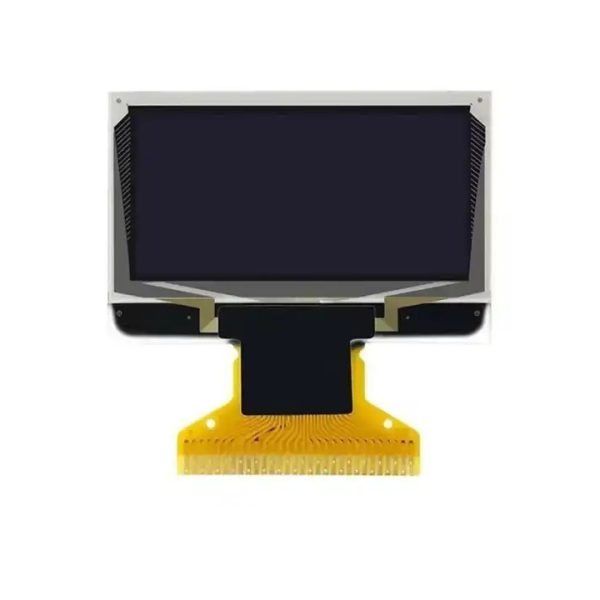

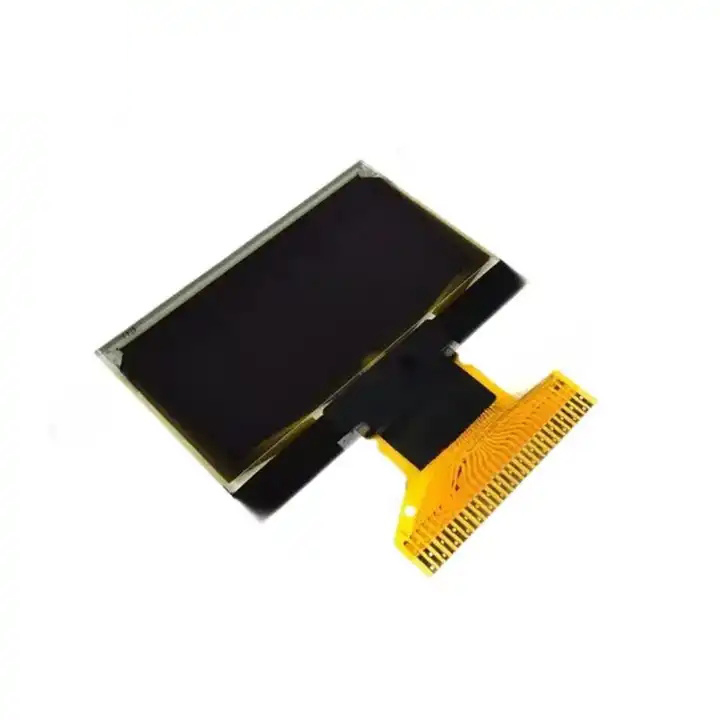

1.3 inch 128×64 resolution PMOLED LCD display module
| Item | 1.3 inch 128×64 PMOLED display |
| Model No. | PV01312864KSWLG01 |
| Resolution | 128*64 |
| Outline Dimension (mm) | 34.5*23*1.4 |
| Active Area (mm) | 29.42*14.7 |
| Viewing Angle | IPS |
| Brightness | 110nits |
| Interface | 8bit 68XX/80XX parallel, 3/4 wire SPI, I2C |
| Backlight | / |
| Driving IC | CH1116 |
| PIN No. | 30 |
| Operating Temperature | -40~85 |
| Storage Temperature | -40~85 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- Wide temperature PMOLED
- 128×64
- Stable supply
- IPS viewing angle /Wide viewing angle /All viewing angle
- 8bit 68XX/80XX parallel, 3/4 wire SPI, I2C
- Small display
- Wide working temperature / -40℃~+85℃
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
