1.3 inch 240×240 IPS 350 nits square TFT LCD display

Item	1.3inch IPS square TFT display
Model No	PV013004AR24E
Resolution	240×240
Outline Dimension	26.16(W)x29.22(H)x1.6(T)
Active Area(mm)	23.40(W)x23.40(H)
Interface	8bit parallel & SPI
Viewing Angle	IPS
Driving IC	ST7789
Display Mode	Transmission/Normally Black
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	350nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

1.3 inch 240×240 IPS square wearable Super thiner TFT LCD display

1. PV013004AR24E mainly application for smart watch and wearable devices
2. It with IPS free full viewing angel , 240×240 resolution , 8bit parallel & SPI interface , ST7789 Driver IC, 350 nits brightness .
3. And it can custom HDMI board to support Raspberry PI;
4. It is super thin. The small size popular for smart watch market.

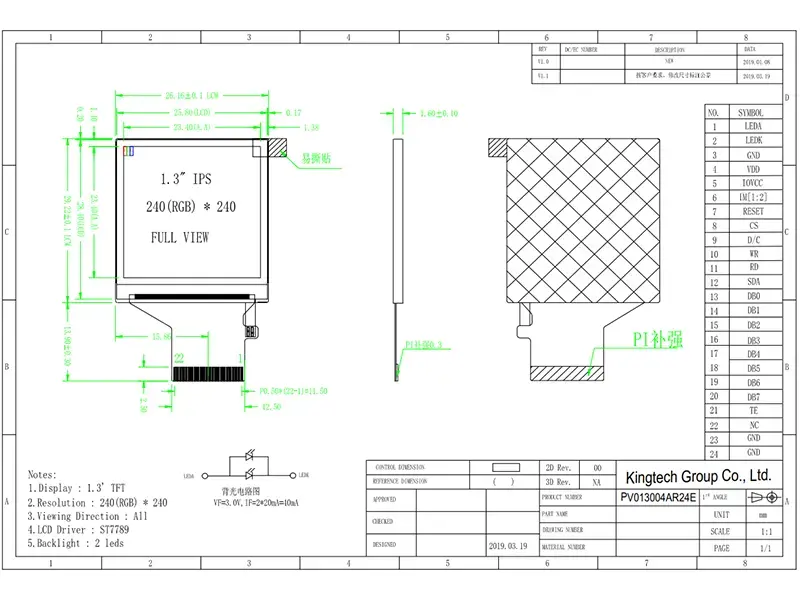

1.3 inch IPS square LCD display front view
