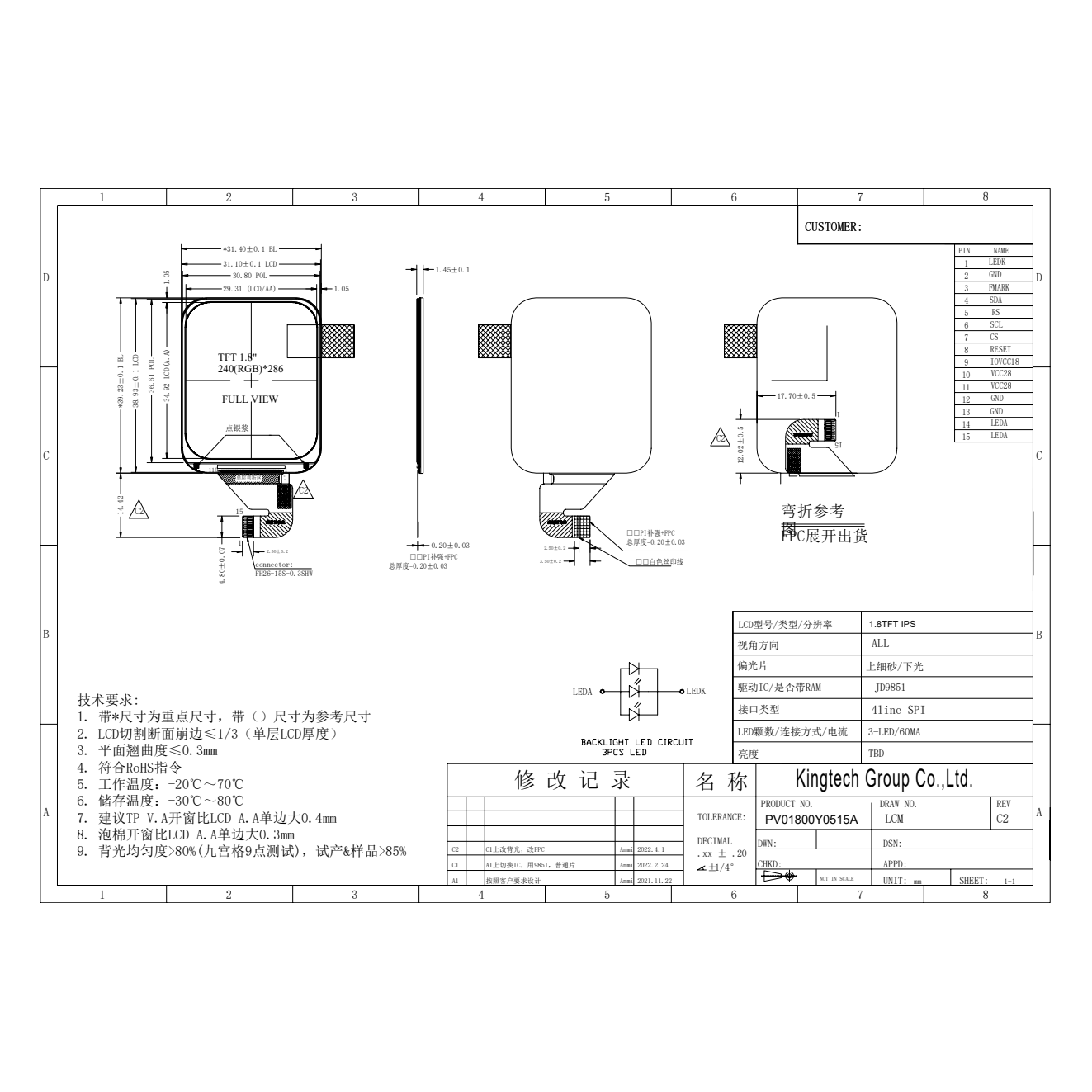

1.8 inch 240*286 resolution TFT LCD display
| Item | 1.8 inch 240*286 IPS 4 Line SPI display |
| Model No. | PV01800Y0515A |
| Resolution | 240*286 |
| Outline Dimension (mm) | 31.4*39.23*1.45 |
| Active Area (mm) | 29.31*34.92 |
| Viewing Angle | IPS |
| Brightness | / |
| Interface | 4 Line SPI |
| Backlight | 1*3 LED |
| Driving IC | JD9851 |
| PIN No. | 15 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT LCD DISPLAY
- 240*286
- Stable supply
- All/Full/Wide/IPS viewing angle
- SPI interface
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
