40 PIN WXGA 10.1 inch tft lcd module

Item	10.1inch 1280×800 TFT LCD module
Model No	PV101033Y0140W
Resolution	1280 x 800

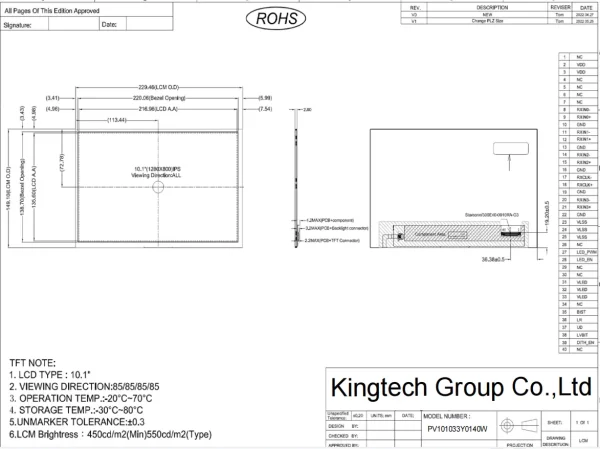

Outline Dimension	229.46149.102.8
Active Area(mm)	216.96 *135.36
Interface	LVDS 8bit or 6bit Interface
Viewing Angle	All
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃ to +80℃
Brightness	550nits
Touch screen	Support capacitive touch
PIN	40

For product pricing,customization,or other inquiries:

10.1 inch 1280×800 LVDS 8bit or 6bit Interface IPS TFT LCD display module

1.PV101033Y0140W mainly application handheld device , Industrial ,medical equipment.
2. It with 1280×800 resolution , IPS all view angle , LVDS 8bit or 6bit interface, 550nits high brightness/ sunlight readable,
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application .

10.1 inch IPS lcd display front view
