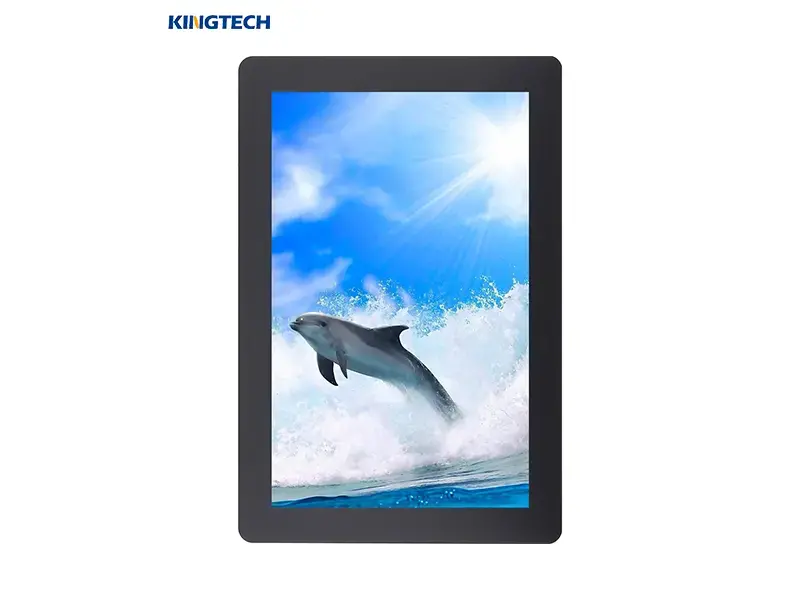

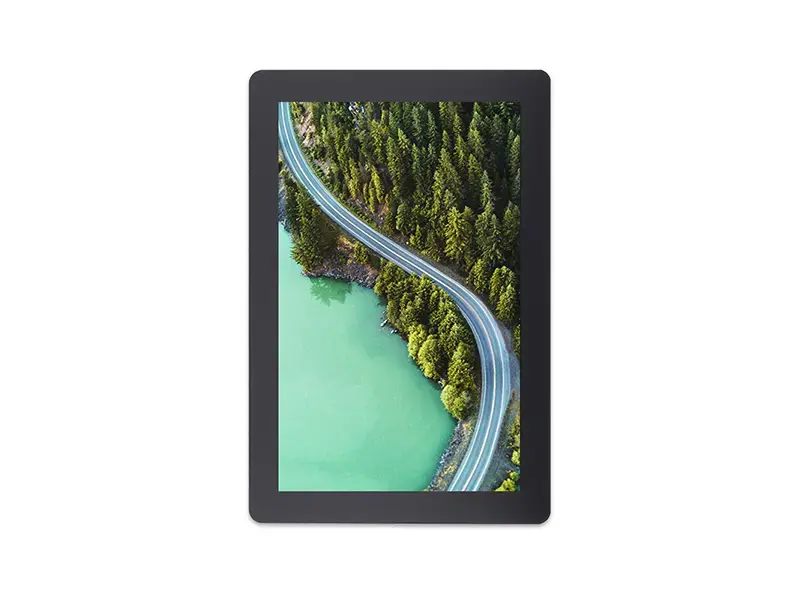

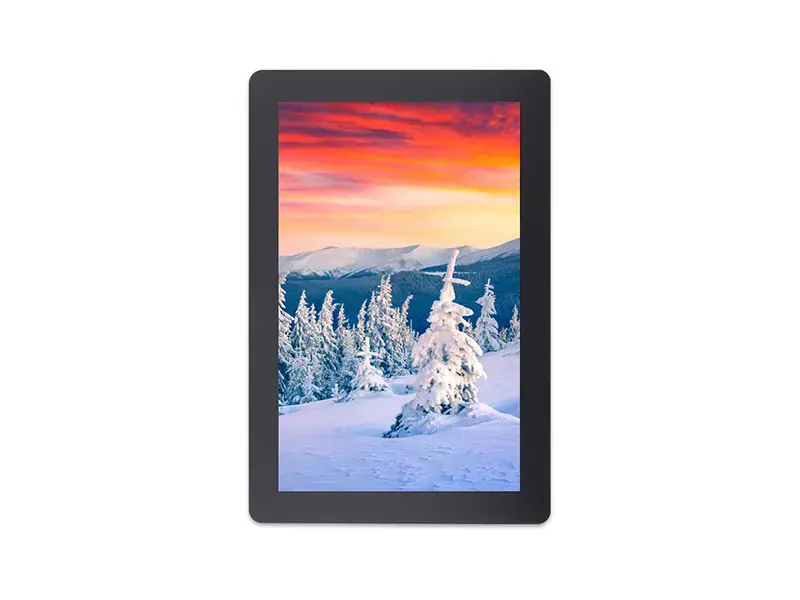

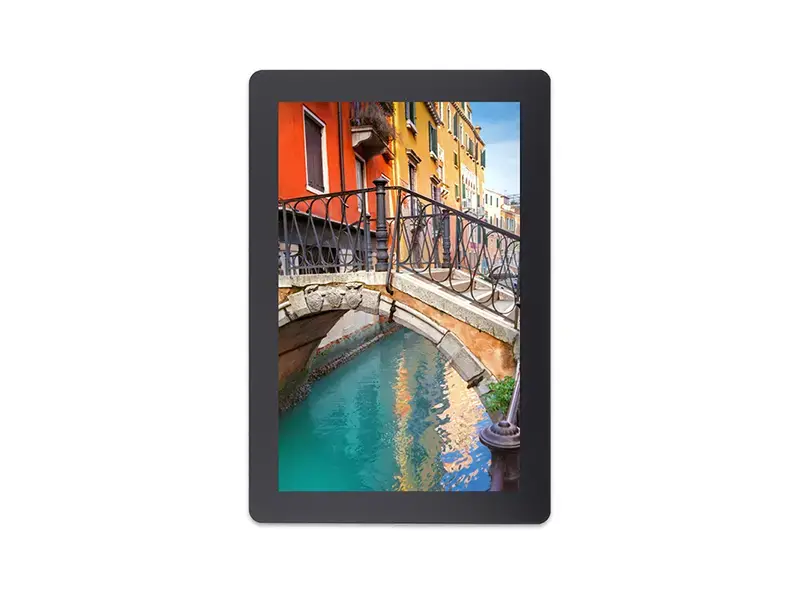

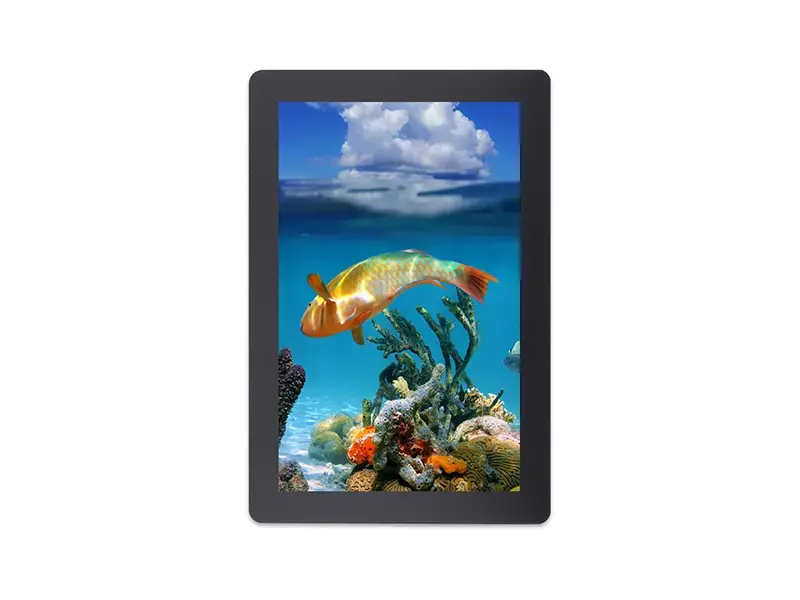

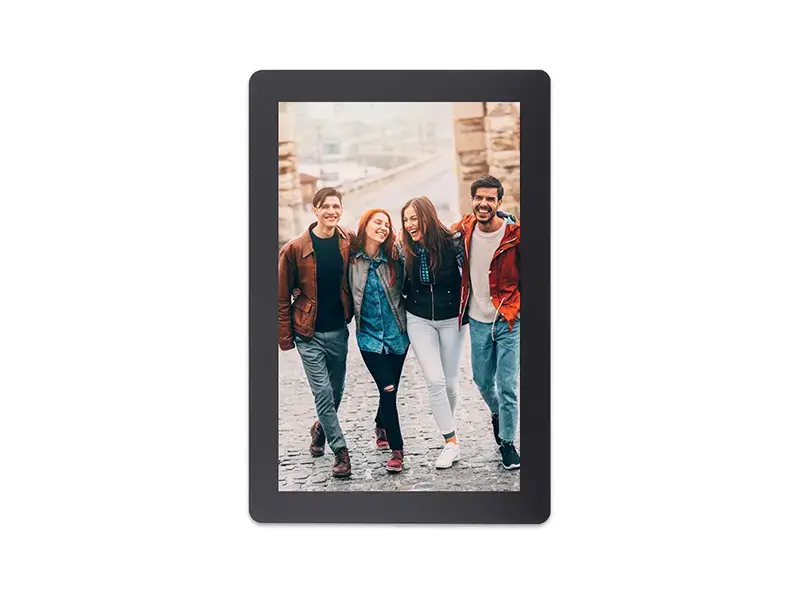

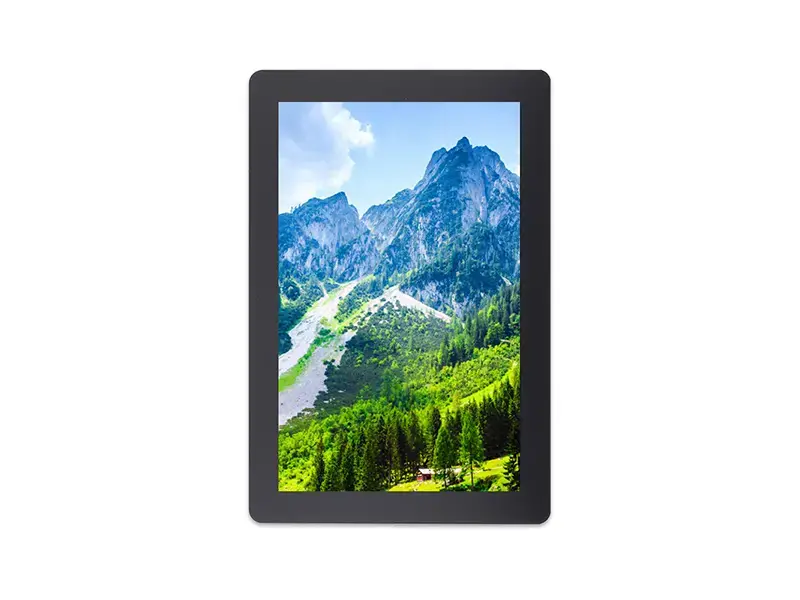

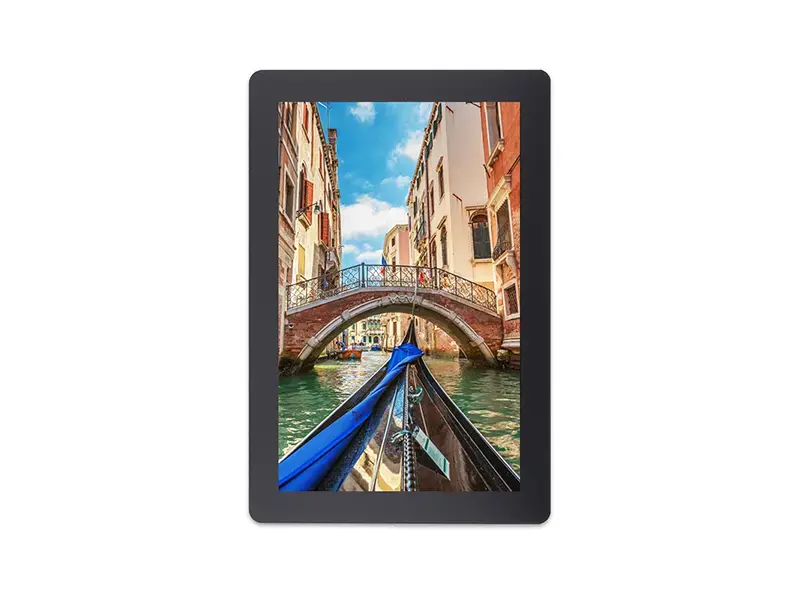

Ips 1200×1920 10.1 inch capactitive mipi lcd touch screen

Item	10.1 inch 1200×1920 MIPI touch scree
Model No	PV10103TD40D-C
Resolution	1200×1920

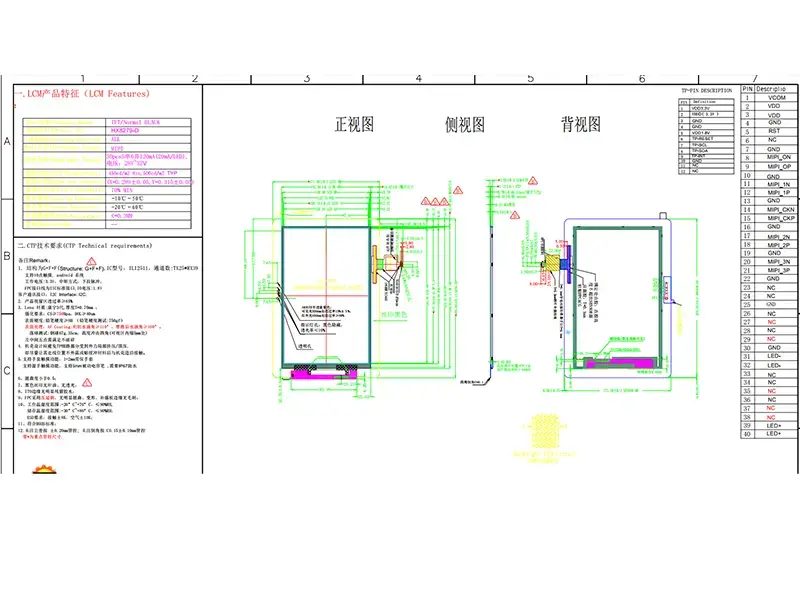

Outline Dimension	171.8255.83.95
Active Area(mm)	216.58 *135.36
Brightness	500nits
Viewing Angle	All
Interface	MIPI
Driving IC	HX8279-D
PIN	40
Operating Temperature	-10 to +50℃
Storage Temperature	-20 to +60℃
Touch	Capacitive touch

For product pricing,customization,or other inquiries:

10.1 inch 1200×1920 high brightness MIPI IPS Vertical lcd touch scree display

1. PV10103TD40D-C mainly application for industrial device , logistics device
2. It with 1280×1920 resolution , IPS full viewing angle, 500nits brightness, MIPI interface , HX8279-D driver IC, existing capacitive touch .
3. And it can custom the capacitive or resistive touch panel as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application
