1280X800 1000nits ips 10.1 inch lcd display

Item	kingtech 10.1 inch ips1280x800 display
Model No	PV10109LZR40G
Resolution	1280 x 800

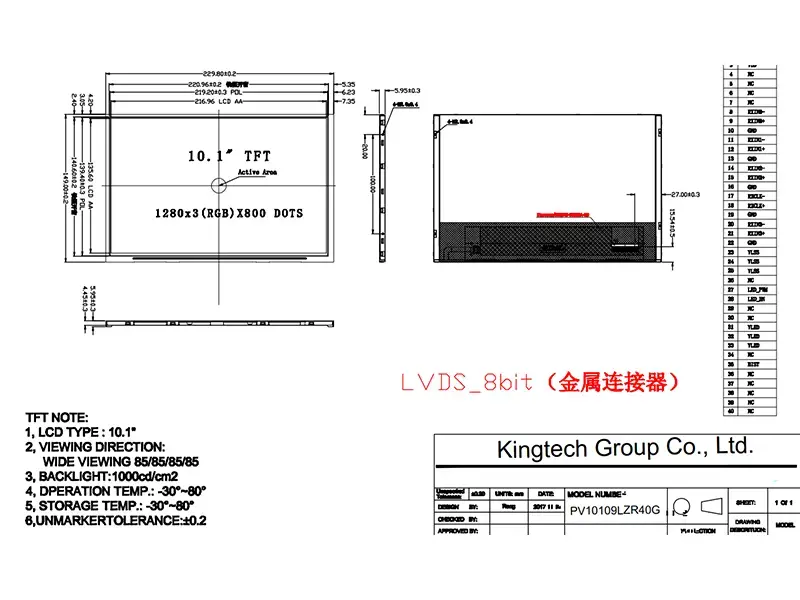

Outline Dimension	229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)	216.96(W) x 135.60(H)
Interface	8-BIT LVDS Interface
Viewing Angle	All
LED life	50000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-30℃ to +80℃
Storage Temperature	-30℃ to +80℃
Brightness	1000nits
Touch screen	I2C / USB capacitive touch screen
Board	HDMI board

For product pricing,customization,or other inquiries:

10.1 inch1280x800 wide temperature 1000nits LVDS IPS LCD display

1. PV10109LZR40G mainly application for industrial device, vehicale and medical devices
2. It with 1280×800 resolution high definition , LVDS interface , IPS full viewing angle , 1000nits high brightness , -30℃~80℃wide work temperature, it with existing capacitive touch panel and HDMI board to support Raspberry PI .
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. It is sunlight readable , it can be well used for both indoor and outdoor .

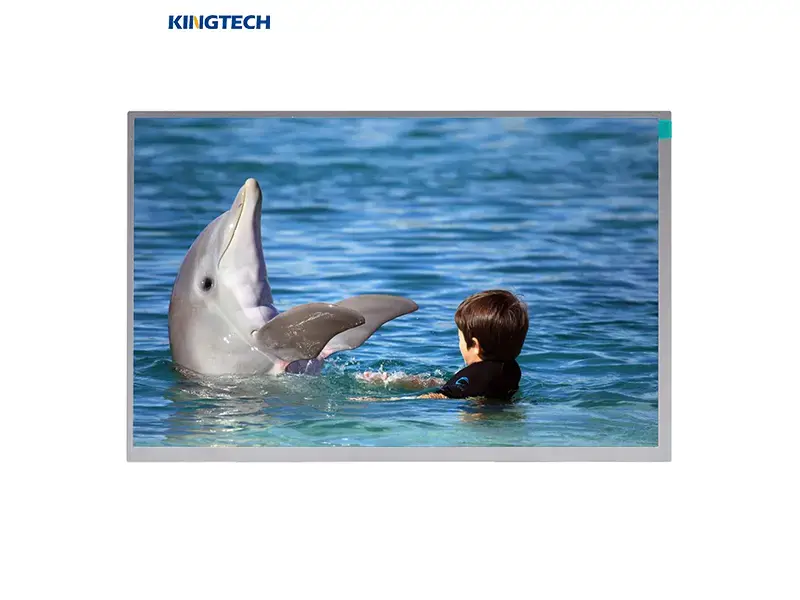

10.1 inch sunlight readable LCD display front view
