Home > Products > Transmissive 31 PIN 1280*800 10.1 inch tft lcd module

Transmissive 31 PIN 1280*800 10.1 inch tft lcd module

Item	10.1 inch 1280×800 lcd display
Model No	PV101010LZR40H
Resolution	1280 x 800
Outline Dimension	229.80(W) x 149.00(H) x 5.95(T)
Active Area(mm)	216.96(W) x 135.60(H)
Interface	8-BIT LVDS Interface
Viewing Angle	All
LED life	50000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-30℃ to +80℃
Storage Temperature	-30℃ to +80℃
Brightness	500nits – 1000nits
Touch screen	I2C / USB capacitive touch screen
Board	HDMI board

For product pricing,customization,or other inquiries:

10.1 inch 1280×800 wide temperature 1000nits LVDS IPS LCD display

1. PV101010LZR40H mainly application for industrial device .
2. It with 1280×800 resolution high definition , LVDS interface , IPS full viewing angle , 1000nits high brightness , -30℃~80℃wide work temperature, it with existing capacitive touch panel .
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. It is sunlight readable , it can be well used for both indoor and outdoor .

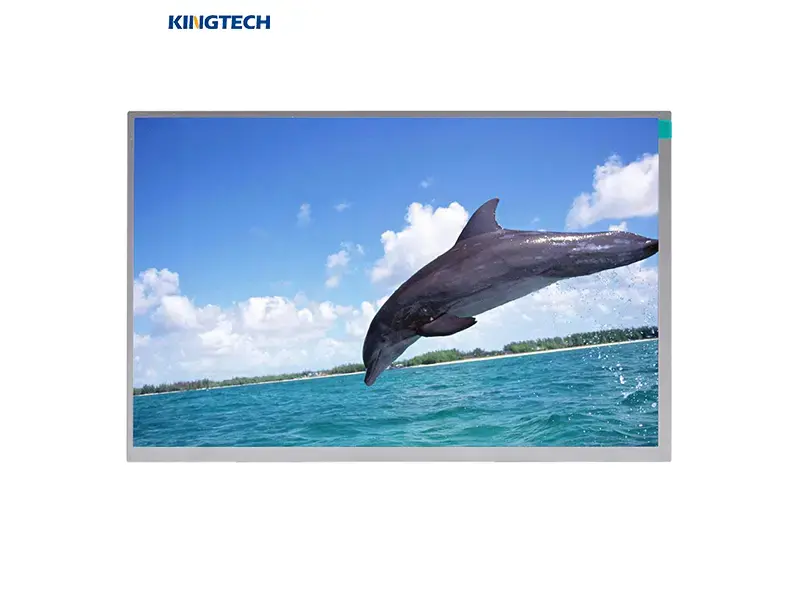

10.1 inch 1280×800 IPS LCD display front view
