12.1 inch 1024*768 TFT LCD module

Item	12.1 inch 1024*768 TFT LCD module
Model No	PV012104TX20E
Resolution	1024*768

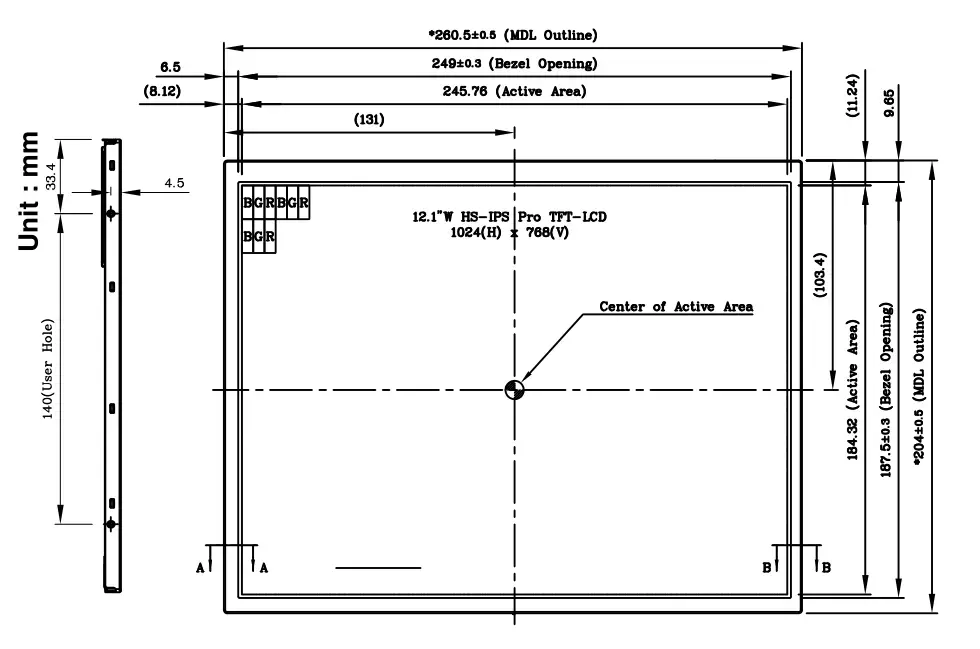

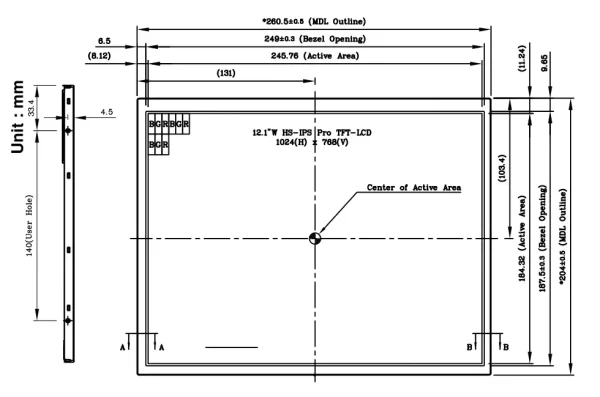

Outline Dimension	260.5 (H) x 204 (V) x 8.6 (D)
Active Area(mm)	245.76(H)x184.32(V)
Interface	LVDS
Viewing Angle	IPS
Driving IC	HX8678
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	0 to +50℃
Storage Temperature	-30 to +80℃
Brightness	850nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

12.1 inch 1024×768 resolution IPS 950nits high brightness lcd display
1.PV012104TX20E mainly application for industrial device
2.It with all view angle ,1024×768 resolution , LVDS interface , 950nit high brightness .
3.And it can custom capacitive or resistive touch panel as customer ‘s requirement .
4.The high brightness support sunlight readable , It can be well used for outdoor .

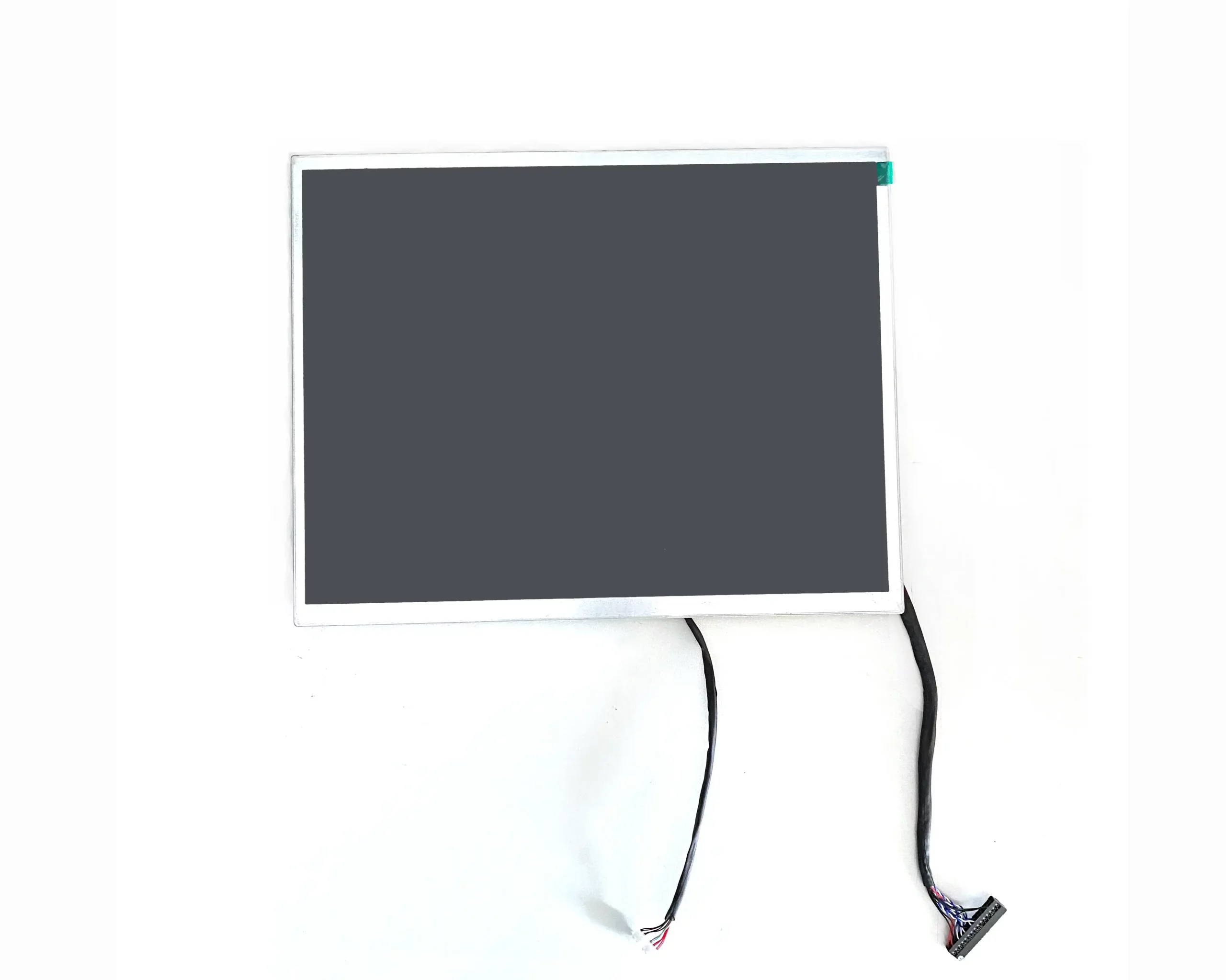

850nits brightness sunlight readable Front View 12.1 inch 1024*768 TFT LCD module
