Lvds ips screen 15.6 inch 40 pin lcd

Item	15.6 inch IPS TFT lcd display
Model No	DW1560B6Y1
Resolution	1920*1080
Outline Dimension	222.0360.05.7
Active Area(mm)	193.59*344.16
Interface	LVDS
Viewing Angle	ALL
Driving IC	ILI6145A
Display Mode	Normally Black
Operating Temperature	0℃~70℃
Storage Temperature	-10℃~70℃
Brightness	1000nits
Touch screen	Can custom capacitive touch and resistive touch
Board	HDMI board

For product pricing,customization,or other inquiries:

15.6 inch 1920×1080 resolution eDP/lLVDS interface high brightness lcd display

1. DW1560B6Y1 mainly application for Industrial device .
2. It with IPS all viewing angle , 30 pins LVDS interface and ILI6145A driver IC , wide work temperature , high color gamut.
3. It with 1920×1080 High resolution, eDP and LVDS interface available, 250/600/1000nits high brightness, with great display effect and supports sunlight readable /outdoor device,existing HDMI board to to support Raspberry PI.
4. It also can custom touch panel as customer ‘s requirement .
5. It is A grade product , the good quality well use for Industrial ，medical application .

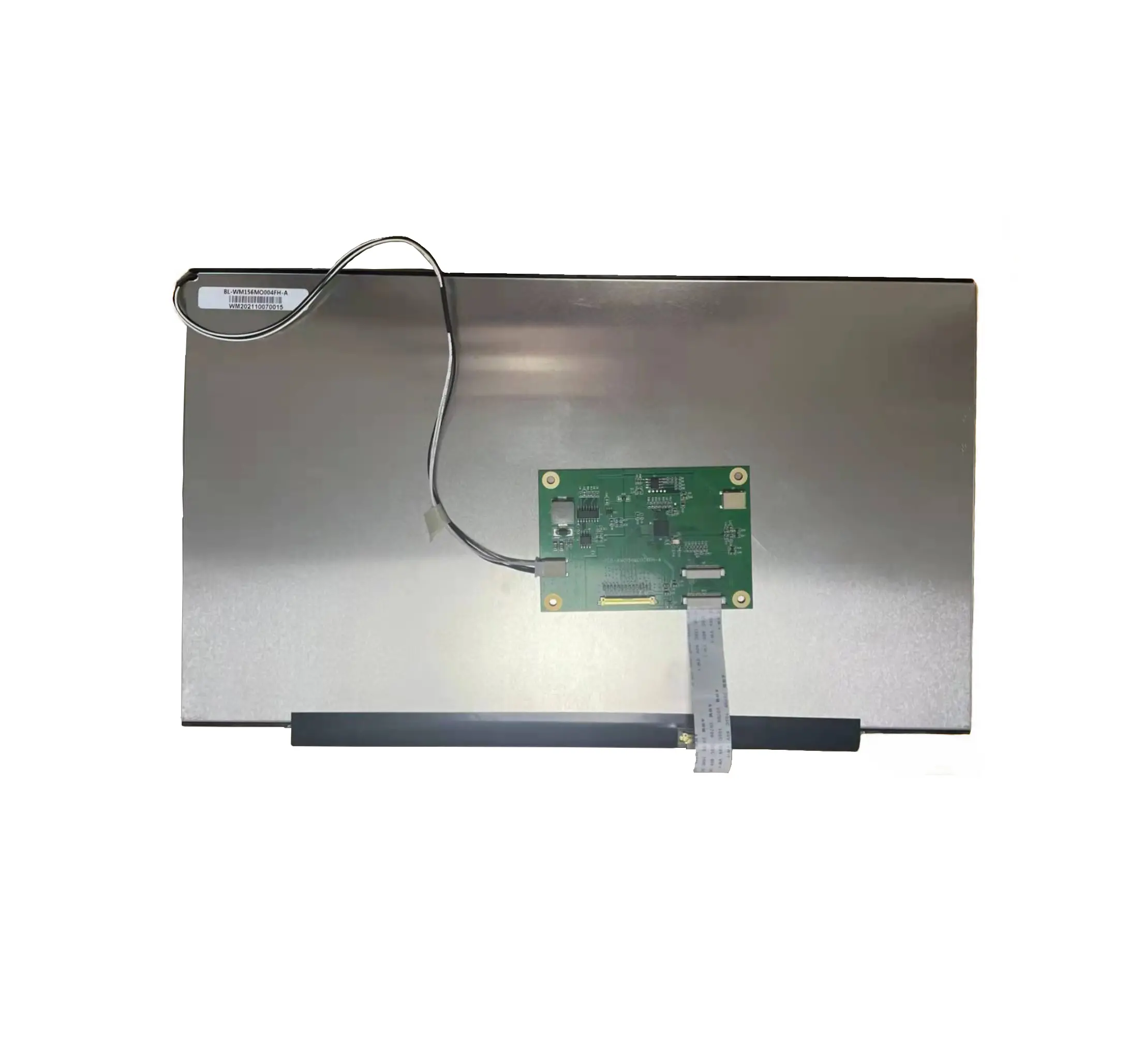

15.6 inch IPS TFT lcd display Front View

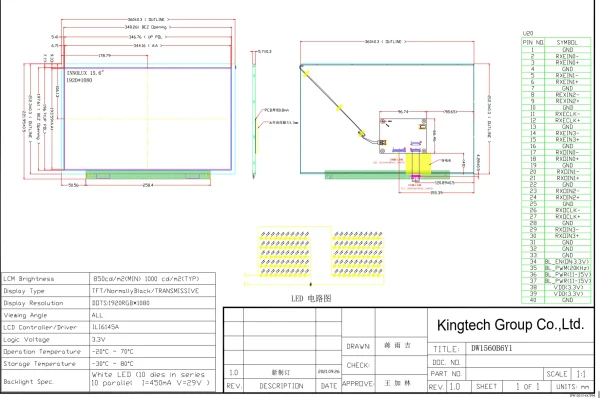

lcd screen 15.6
