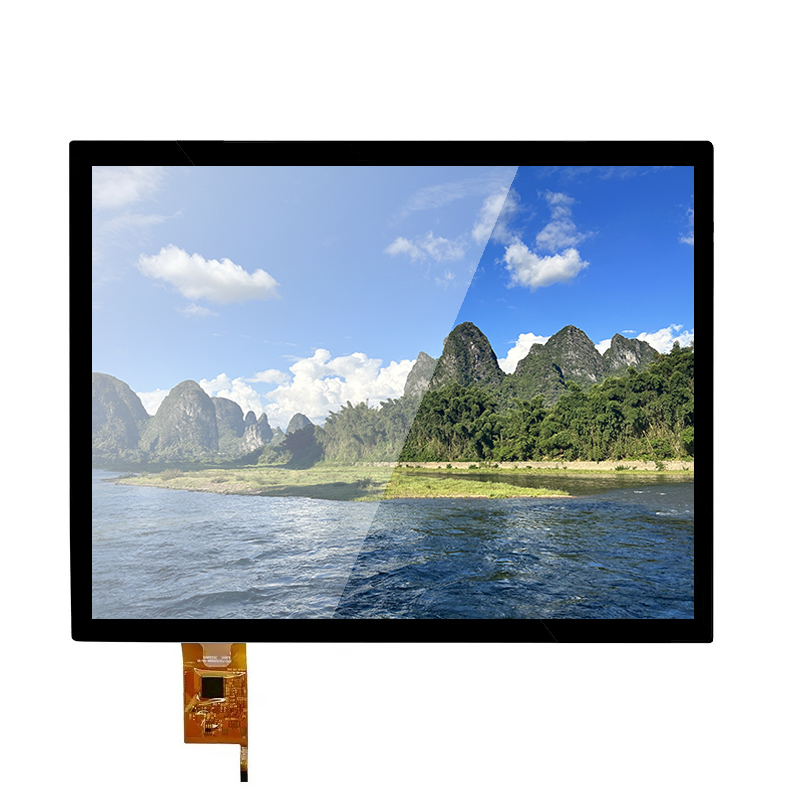

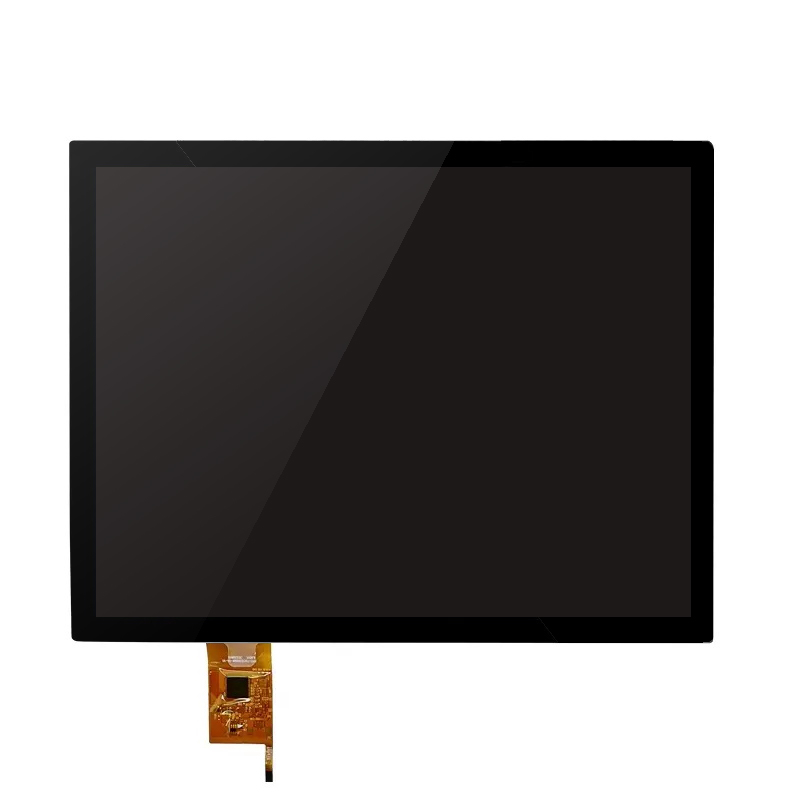

15 inch 1024*768 TFT LCD display
| Item | 15 inch IPS 1024*768 TFT display |
| Model No. | PV15002YH20C |
| Resolution | 1024*768/XGA |

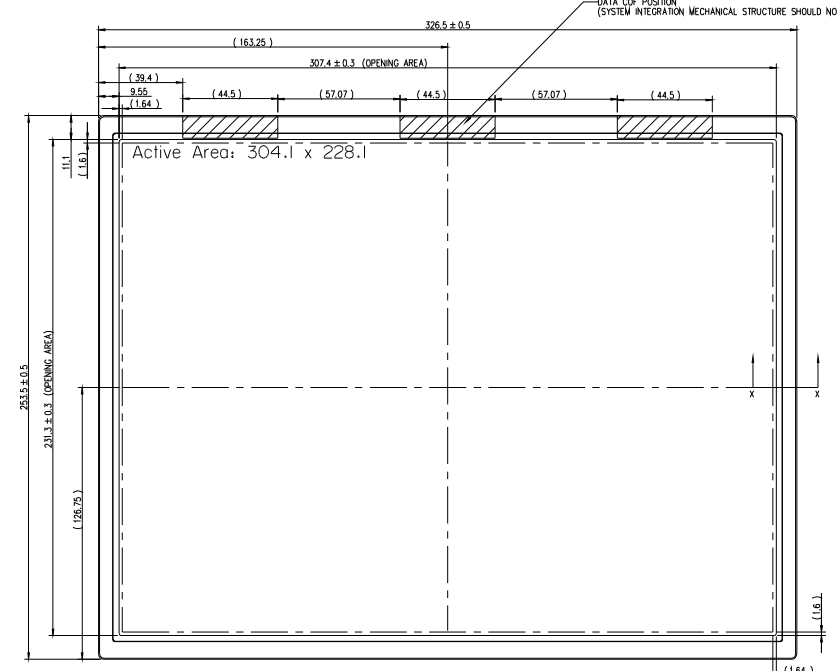

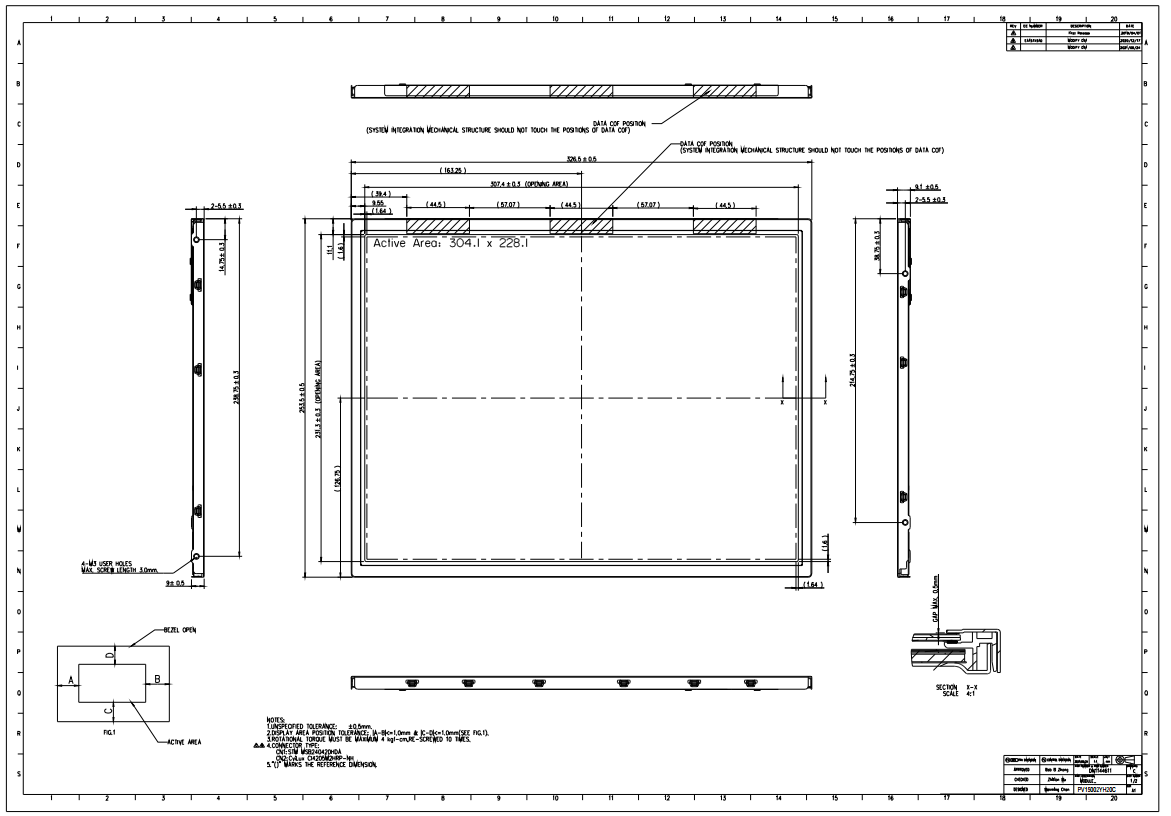

| Outline Dimension (mm) | 326.5*253.5*9.1 |
| Active Area (mm) | 304.1*228.1 |
| Viewing Angle | All |
| Brightness | 350nits |
| Interface | LVDS |
| Backlight | / |
| Driving IC | / |
| PIN No. | 20 |
| Operating Temperature | -30~70C |
| Storage Temperature | -40~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- 15 inchTFT display
- 1024*768/XGA
- Stable supply
- IPS/Full/Wide/All viewing angle
- LVDS interface
- 350nits brightness/Sunlight readable/High brightness
- Wide operating temperature/-30~+70C
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
