180 nits 240×320 2.8 inch touch screen

Item	2.8 inch 240×320 IPS touch screen
Model No	PV02808LZR50H-R
Resolution	240×320
Outline Dimension	50.069.22.5
Active Area(mm)	57.6*43.2
Brightness	250nits
Viewing Angle	All
Interface	SPI / RGB / MCU
Driving IC	ST7789V
PIN	50
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch	support capacitive touch and resistive touch

For product pricing,customization,or other inquiries:

2.8 inch 240×320 IPS TFT resistive touch screen

1. PV02808LZR50H-R mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ST7789V Driver IC, 250nits brightness, IPS/All/Full/Free viewing angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

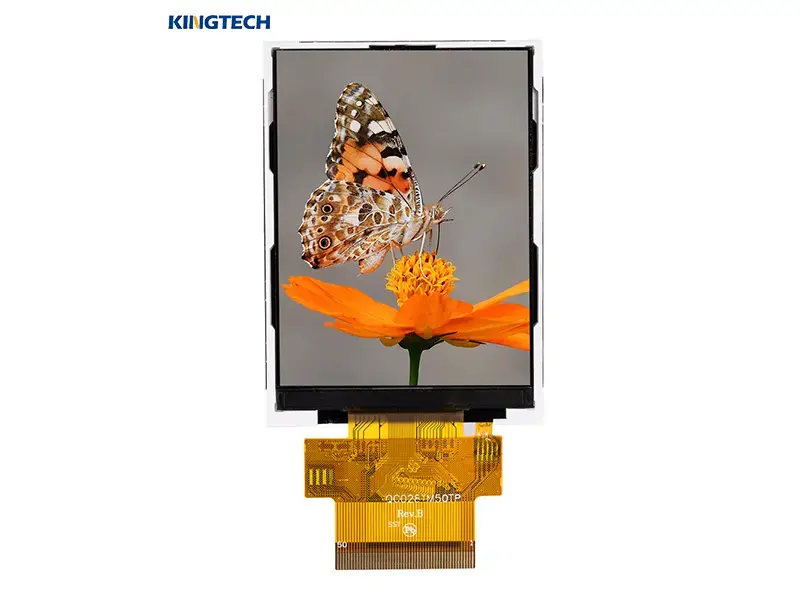

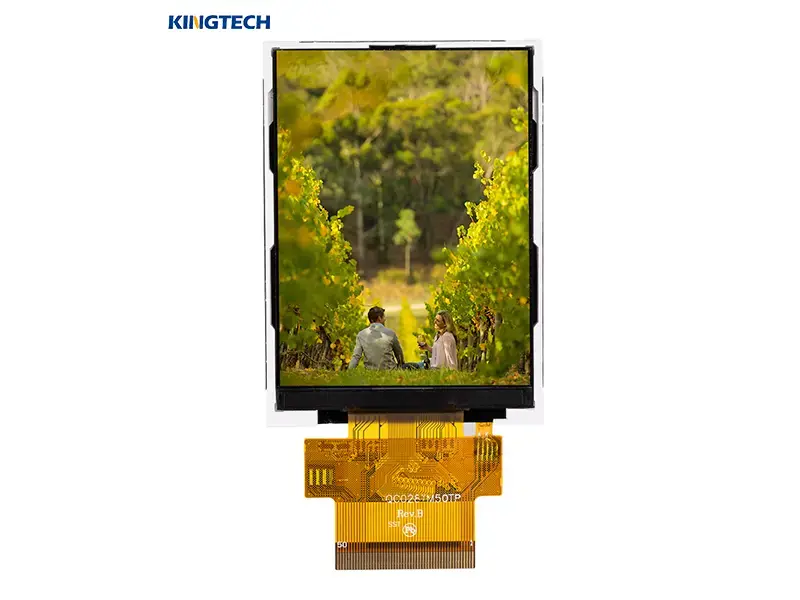

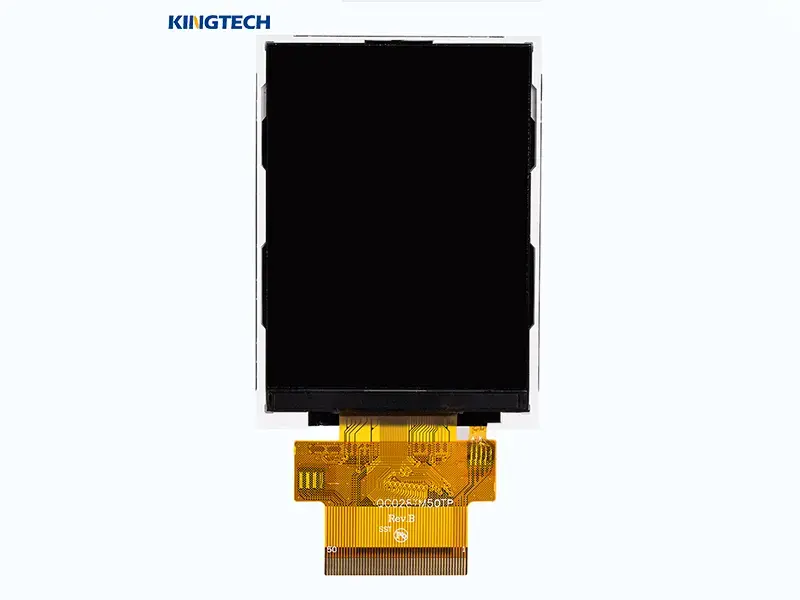

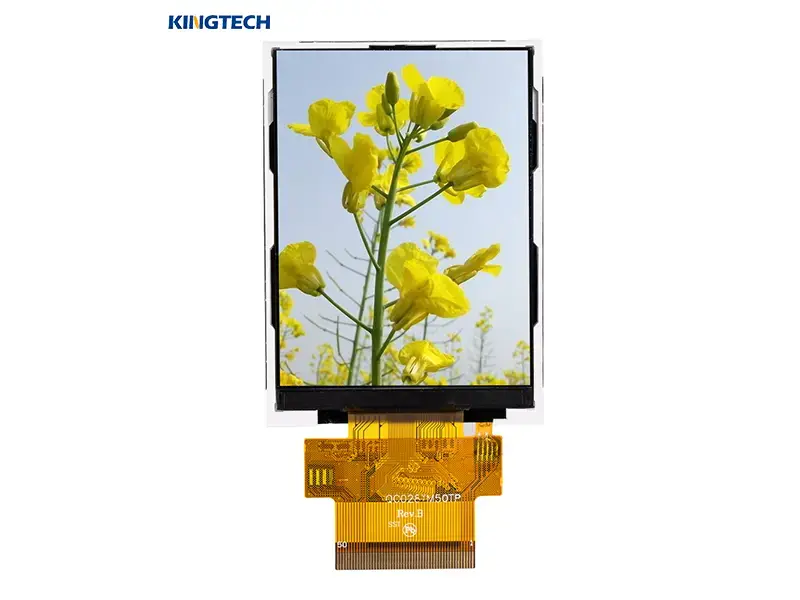

2.8 inch 240×320 IPS TFT LCD display front view

2.8 capacitive touch screen
