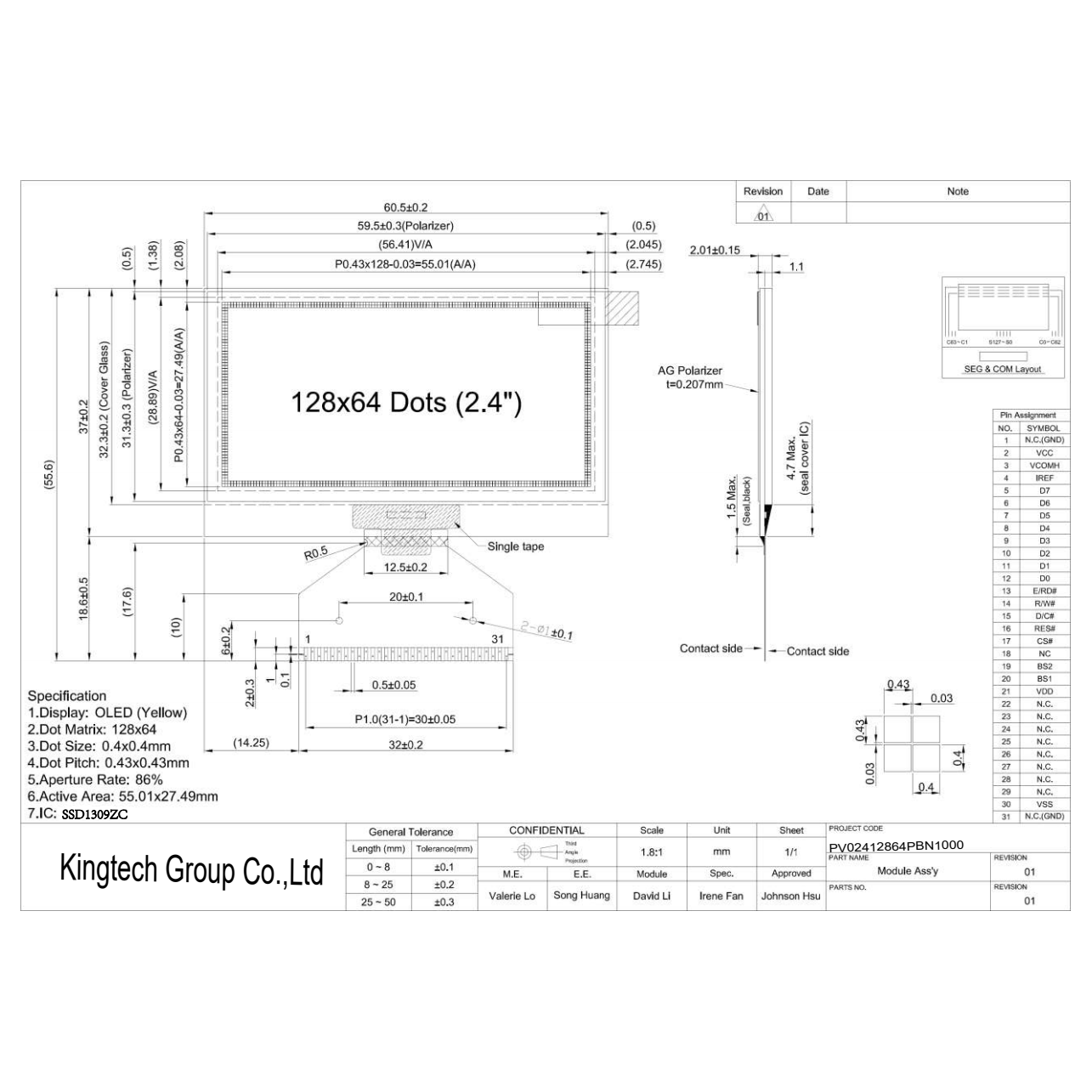

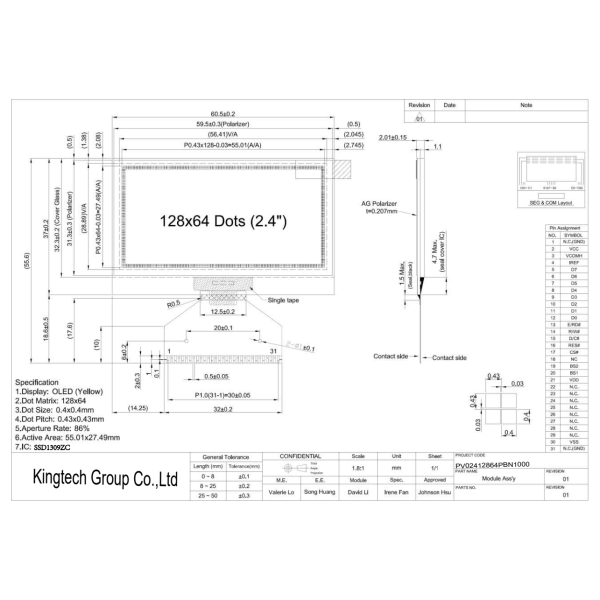

2.4 inch 128*64 resolution PMOLED display
| Item | 2.4 INCH 128X64 resolution IPS PMOLED display |
| Model No. | PV02412864PBN1000 |
| Resolution | 128*64 |
| Outline Dimension (mm) | 60.5*37*2.01 |
| Active Area (mm) | 55.01*27*49 |
| Viewing Angle | IPS |
| Brightness | 70nits |
| Interface | 8-bit 6800/8080-series parallel interface,Serial Peripheral Interface,I2c |
| Backlight | / |
| Driving IC | SSD1309ZC |
| PIN No. | 31 |
| Operating Temperature | -40~70C |
| Storage Temperature | -40~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- PMOLED
- 128*64
- Stable supply
- IPS viewing angle
- 8-bit 6800/8080-series parallel interface, Serial Peripheral Interface, I2c
- Wide temperature, -40~70C
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart watch
