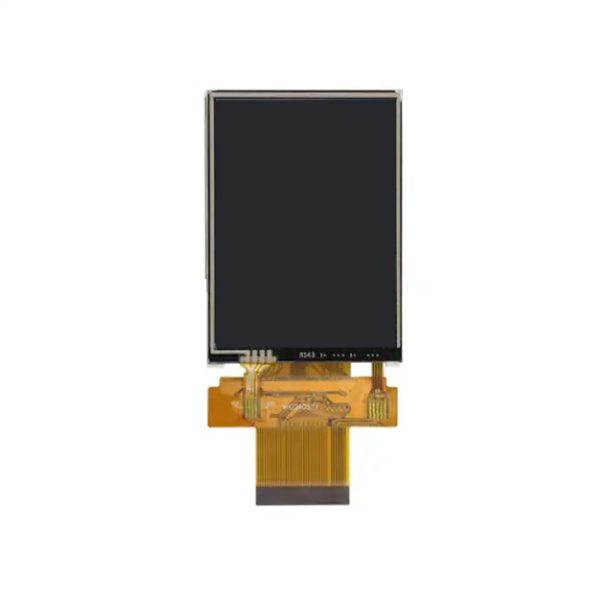

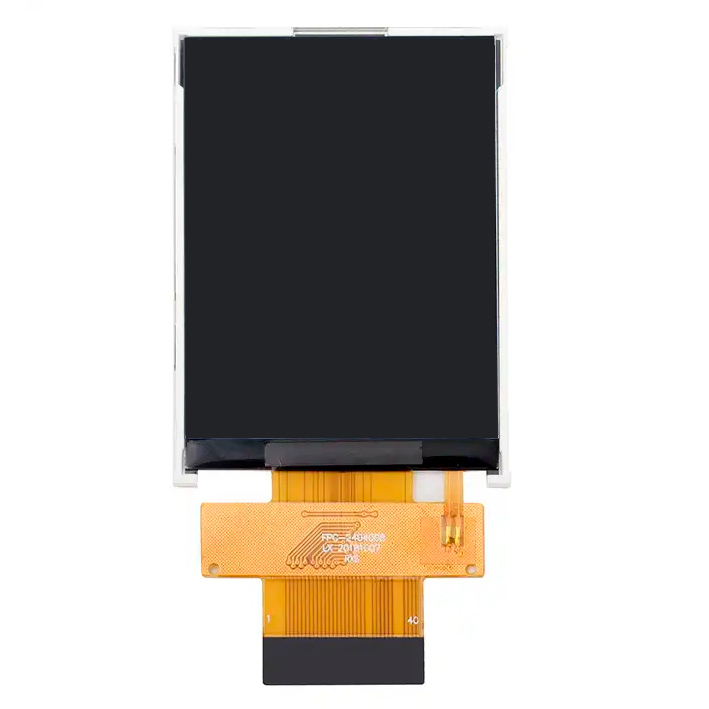

2.4 inch 240*320 resolution LCD display
| Item | 2.4 inch 240*320 resolution SPI LCD display |
| Model No. | PV024002YP40C-R |
| Resolution | 240*320 |
| Outline Dimension (mm) | 42.72*60.26*3.85 |
| Active Area (mm) | 48.96*36.72 |
| Viewing Angle | 6 O’clock |
| Brightness | 800nits |
| Interface | MCU |
| Backlight | 1*5LED |
| Driving IC | ST7789VI |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- TFT lcd display
- Stable supply
- QVGA resolution
- High brightness/outdoor/Sunlight readable
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, out door application, charging station, forklift
