ST7789VI 40 pin 240 x 320 pixels 2 4 lcm

Item	2.4 inch 240×320 high brightness LCD display
Model No	PV024002YP40C
Resolution	240×320
Outline Dimension	59.9142.802.40
Active Area(mm)	48.96*36.72
Interface	MCU
Viewing Angle	6 O’clock
Brightness	1000nits
Driving IC	ST7789VI
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃ to +80℃
Touch screen	Can custom resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

2.4 inch 240×320 QVGA IPS MPU interface portrait LCD display

1. PV024002YP40C mainly application for handheld device , Industrial ，medical equipment .
2. It with 240X320 resolution QVGA , MCU interface , 6 O’clock/TN viewing angle , ST7789VI driver IC, 1000nits high brightness .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is high brightness can be sunlight readable , it can be well used for both indoor and outdoor .

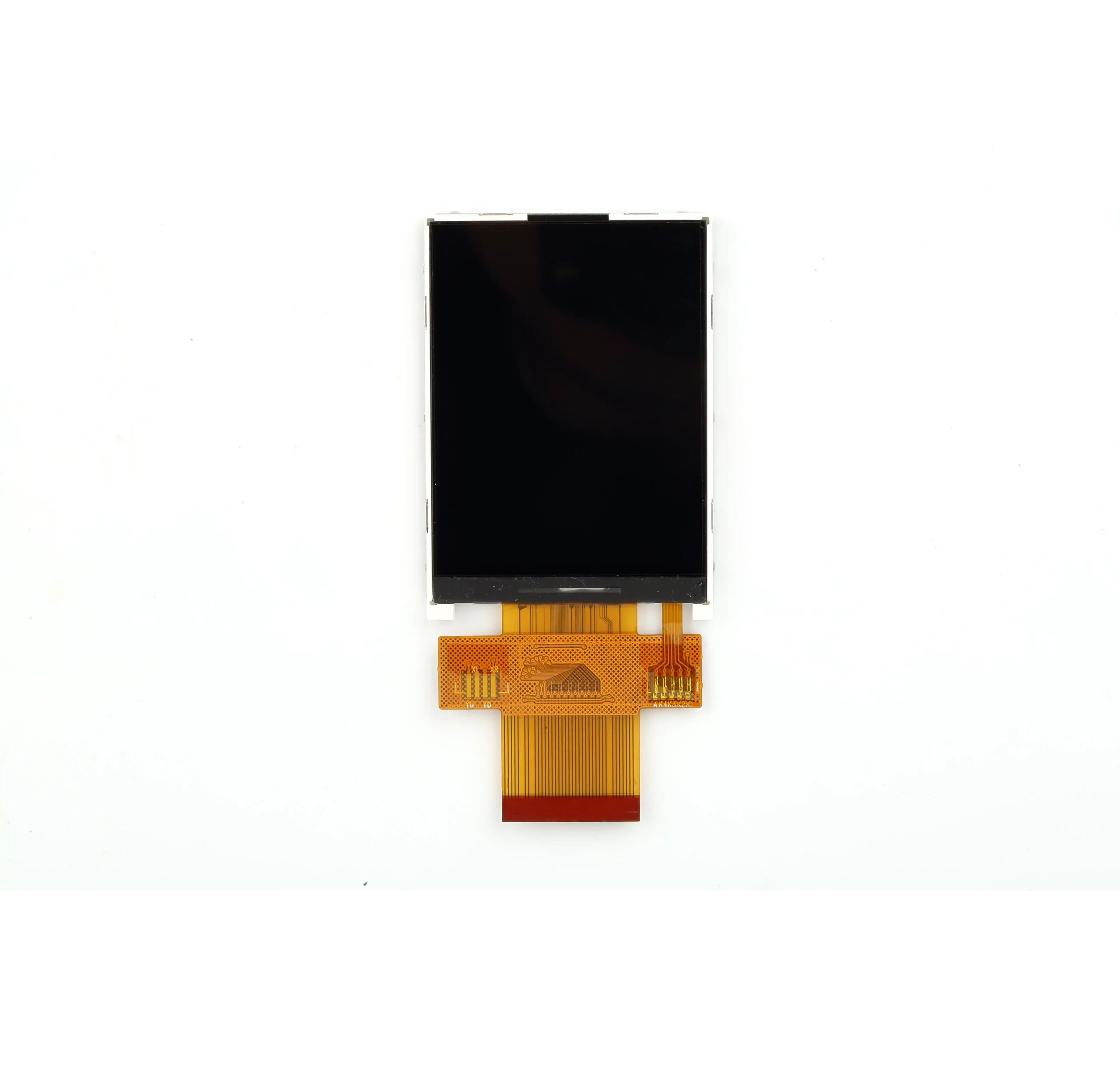

2.4 inch 240×320 screen front view

6 O'clock 240 x 320 pixels
