2.47 inch 480×480 MIPI interface IPS TFT round LCD display

Item	2.5 inch 480×480 circular TFT screen
Model No	PV024701SY35B
Resolution	480×480
Outline Dimension	69.1971.742.45
Active Area(mm)	62.64*62.64
Interface	MIPI-DSI Interface
Viewing Angle	All
Driver IC	HX8379-C
Display Mode	Transmissive / Normally Black
Operating Temperature	-10℃ to +60℃
Storage Temperature	-30℃ to +70℃
Brightness	400nits

For product pricing,customization,or other inquiries:

2.47 inch 480×480 IPS MIPI-DSI Round TFT LCD display

1. PV024701SY35B mainly application for handheld device , Industrial ，medical equipment .
2. It with 480×480 resolution, MIPI-DSI interface , IPS viewing angle , HX8379-C driver IC, 400nits brightness .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

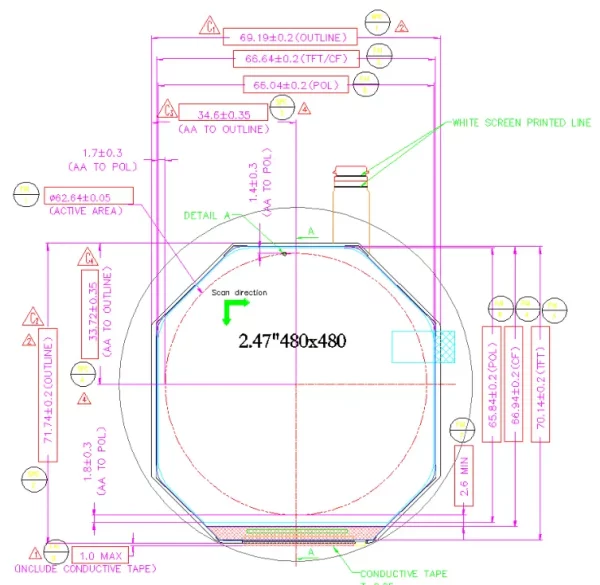

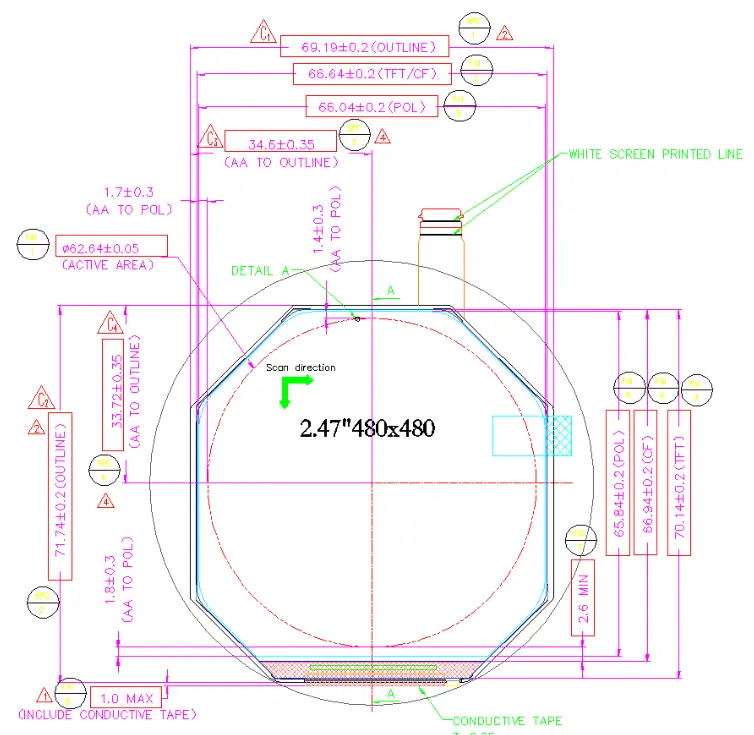

2.47” round 480×480 tft lcd front view
