2.7 inch bar lcd display 240×960 RGB interface ILI8961 touch screen

Item	2.7 inch 240×960 bar TFT display
Model No	PV02701TD40A-R
Resolution	240×960
Outline Dimension	39.1868.423.65
Active Area(mm)	33.06*58.8
Interface	RGB 18bit Interface
Viewing Angle	9 O’clock
Driver IC	ILI8961
Display Mode	Transmissive / Normally Black
Operating Temperature	-10℃ to +60℃
Storage Temperature	-20℃ to +70℃
Brightness	180nits
Touch screen	resistive touch screen

For product pricing,customization,or other inquiries:

2.7 inch resistive touch panel 240×960 RGB bar display

1. PV02701TD40A-R mainly application for handheld device , Industrial ，medical equipment .
2. It with 240X960 resolution, RGB 18bit interface , 9 O’clock/ TN viewing angle , ILI8961 driver IC, 180nits brightness, with resistive touch screen .
3. It also can custom touch panel, interface and brightness as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

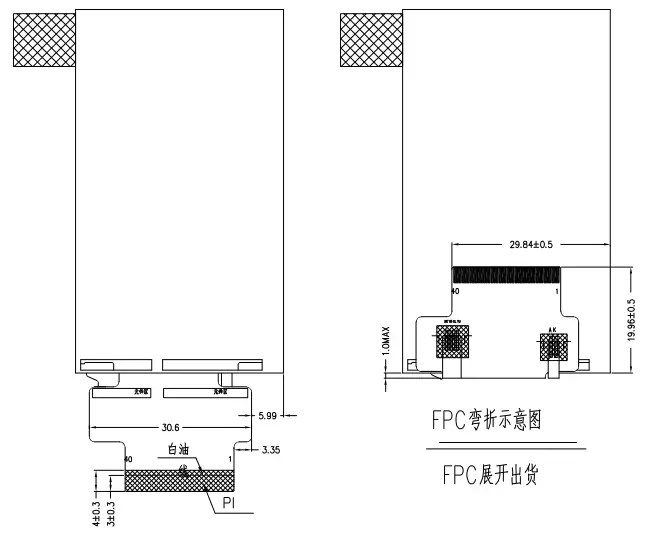

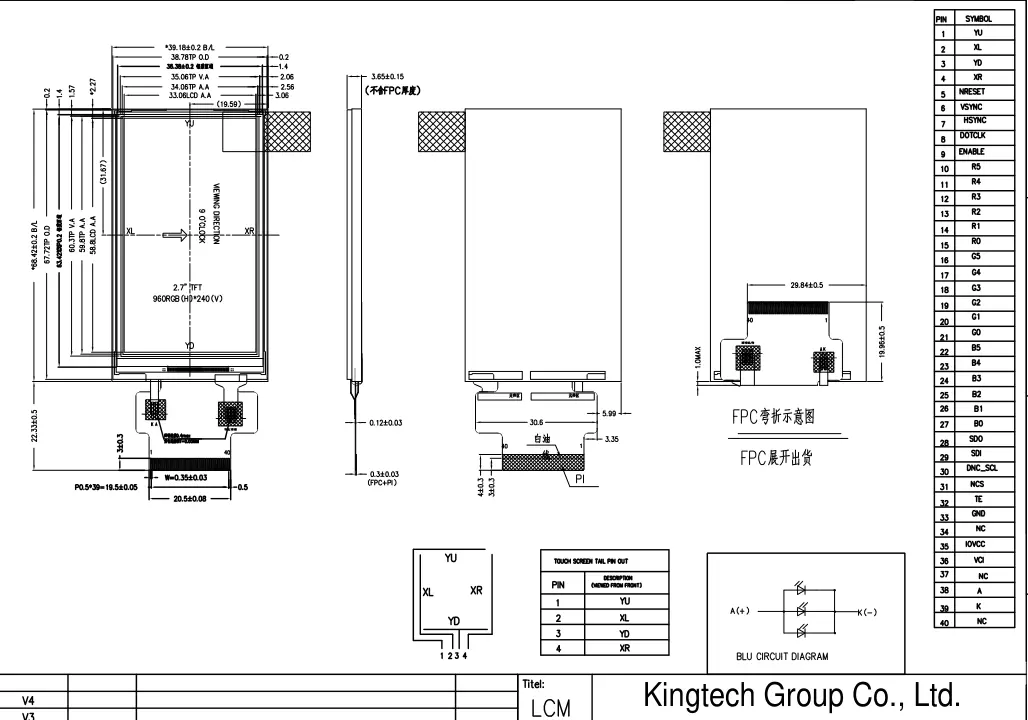

2.7 inch bar display front view

front
