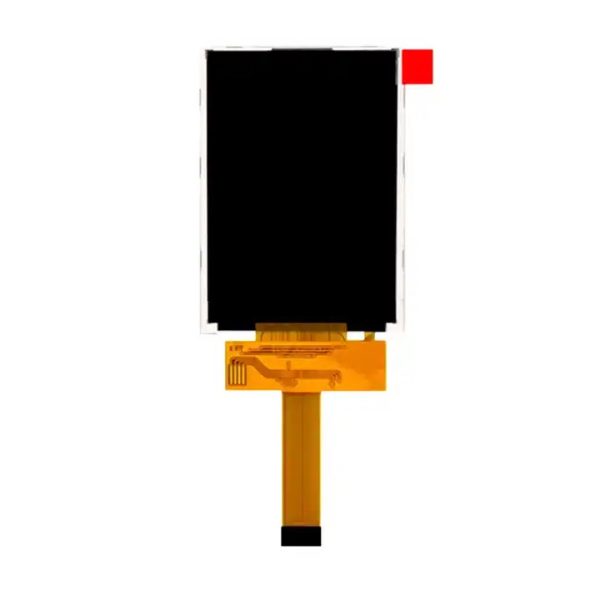

2.8 inch 240*320 TFT module display
| Item | 2.8inch TN 240*320 TFT display |
| Model No. | PV02823H0118Q |
| Resolution | 240*320 |
| Outline Dimension (mm) | 50*69.2*2.4 |
| Active Area (mm) | 43.2*57.6 |
| Viewing Angle | 12 O’clock |
| Brightness | / |
| Interface | SPI |
| Backlight | 1*4LED |
| Driving IC | ST7789T3 |
| PIN No. | 18 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, smart-home |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- QVGA resolution
- Can custom resistive touch and capacitive touch
- The 2.8 inch 240*320 TFT display module can be used for E-bike, Medical, hand-held device, industrial or others
