Home > Products > 600 nit mcu 2 8 tft lcd shield

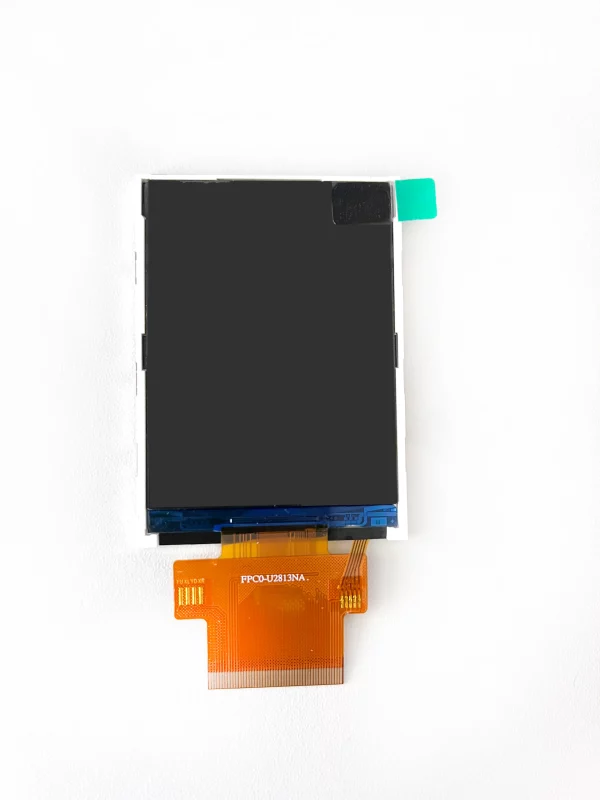

2.8 inch tft lcd module PV028QV ITB5001 front

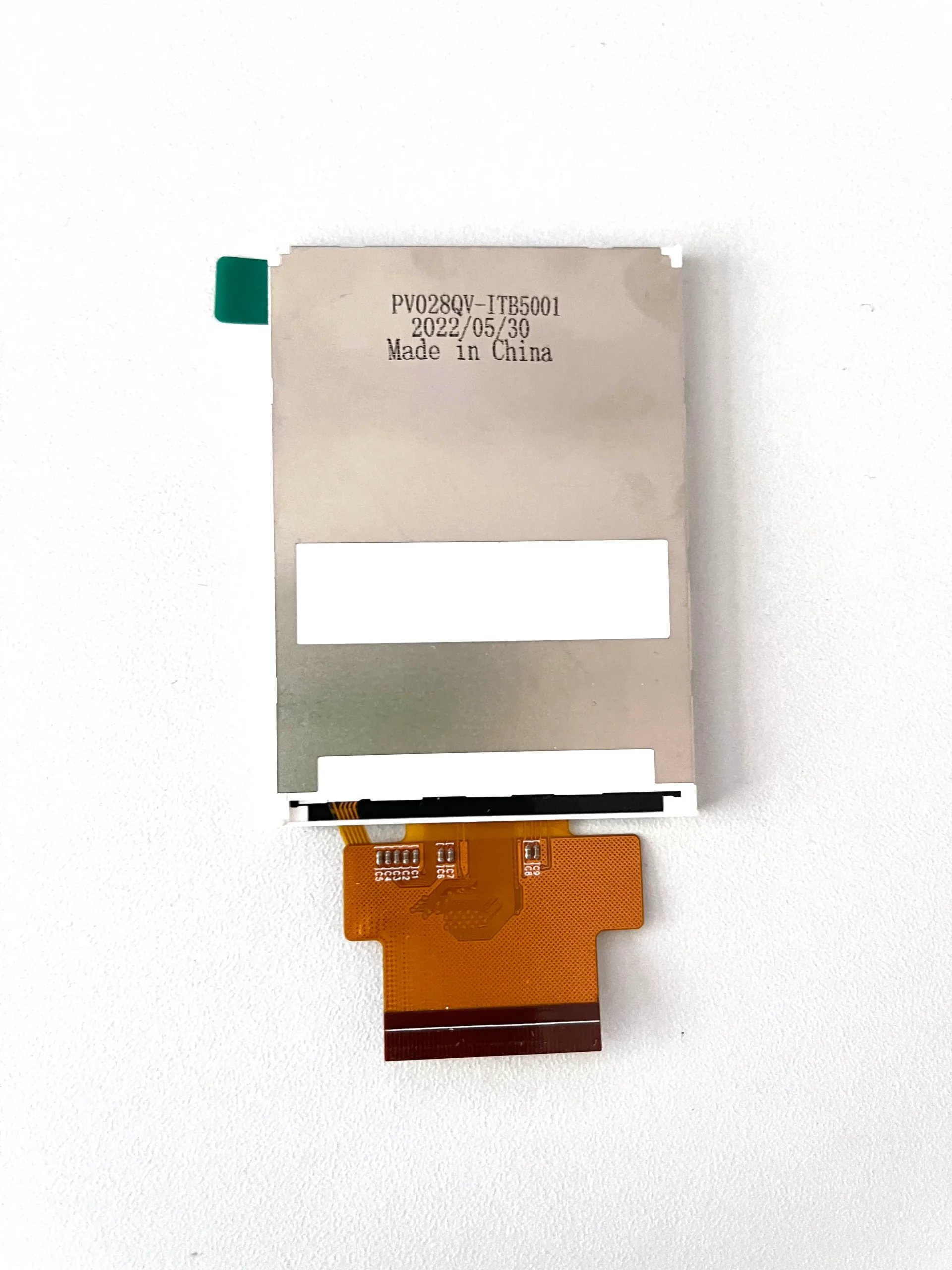

2.8 inch tft lcd module PV028QV ITB5001 back

600 nit mcu 2 8 tft lcd shield

Item	2.8” 600nits brightness LCD display
Model No	PV028QV-ITB5001
Resolution	240*320
Outline Dimension	50.0069.202.48
Active Area(mm)	43.20*57.60
Interface	MCU Interface
Viewing Angle	6 O’Clock
Display Mode	Transmissive / Normally Black
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Brightness	600nits

For product pricing,customization,or other inquiries:

2.8 inch MCU interface 240×320 high brightness TFT LCD display

1. PV028QV-ITB5001 mainly application for hand held device .
2. It with 240×320 resolution/QVGA, SPI / RGB / MCU interface, ILI9341 Driver IC, 600 nits high brightness,TN/ 6 O’Clock viewing angle, can support capacitive touch and resistive touch panel.
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device.

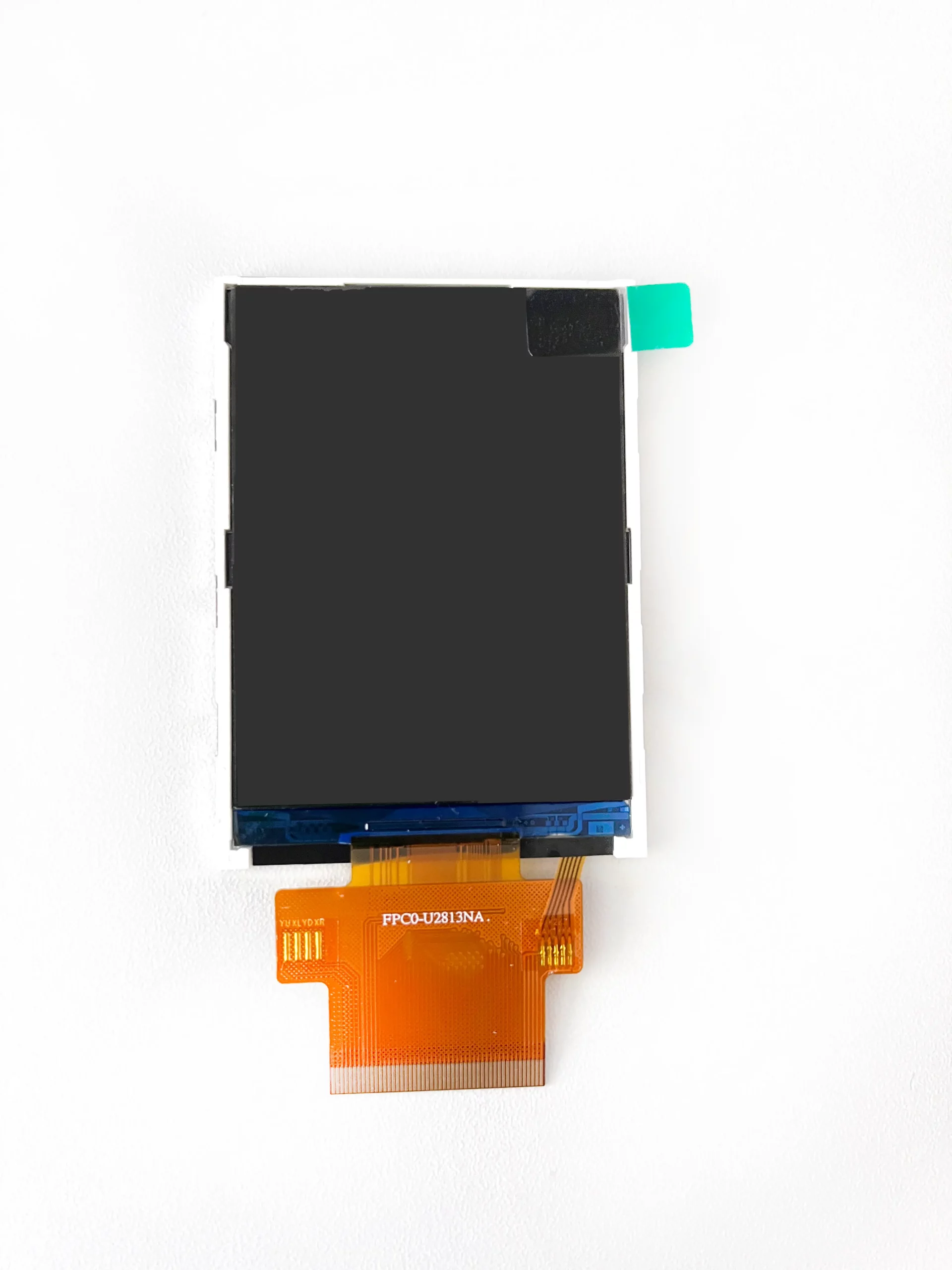

2.8” sunlight readable display screen front view
