24 bit rgb 40pin 800×480 5 inch lcd panel
| Item | 5 inch 800×480 TFT LCD display |
| Model No | PV0502LZR40D |
| Resolution | 800×480 |
| Outline Dimension | 120.7*75.8*2.9 |
| Active Area(mm) | 108*64.80 |
| Brightness | 500nits / 1000nits |
| Viewing Angle | 12 o’clock |
| Interface | 24-bit Parallel RGB |
| Driving IC | ILI6122+ILI5960 |
| PIN | 40 |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch | Can custom capacitive/resistive |
| Board | HDMI board |
For product pricing,customization,or other inquiries:
Share to:
5 inch 800×480 resolution RGB interface TFT LCD display
1. PV0502LZR40D mainly application for Industrial, medical equipment.
2. It with800x480 resolution , 24-bit Parallel RGB interface ,ILI6122+ILI5960 driver IC , 500nits/1000nits high brightness, existing capacitive touch and resistive panel .
3. It also support HDMI board to support Raspberry PI .
4. It is A grade product , the good quality well use for Industrial ，medical application. An it can be well used for both indoor and outdoor

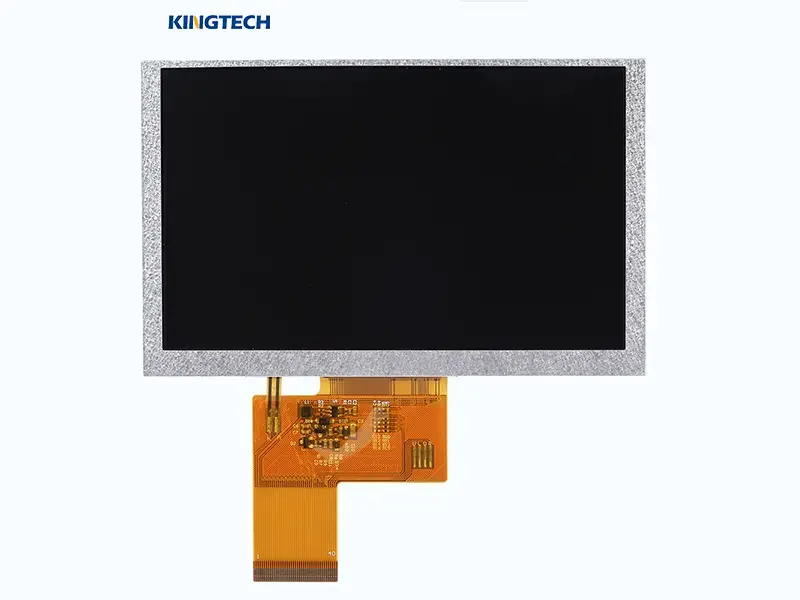

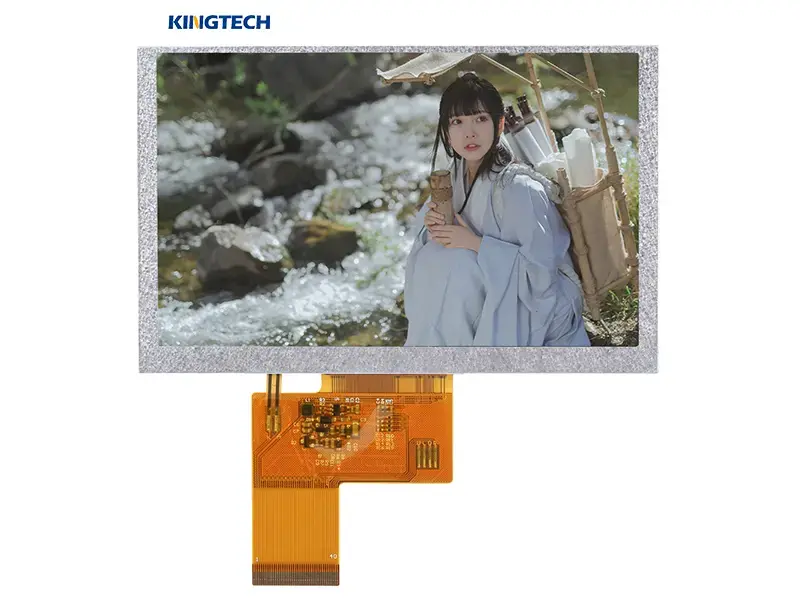

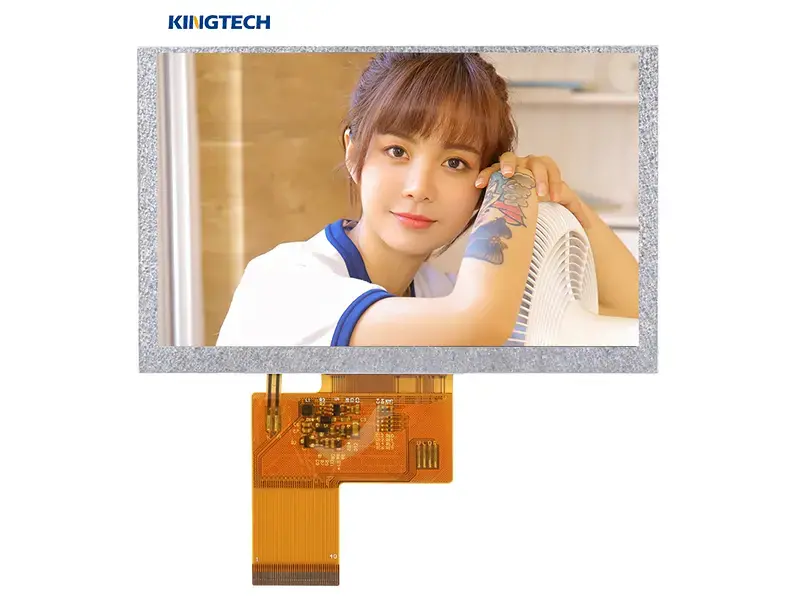

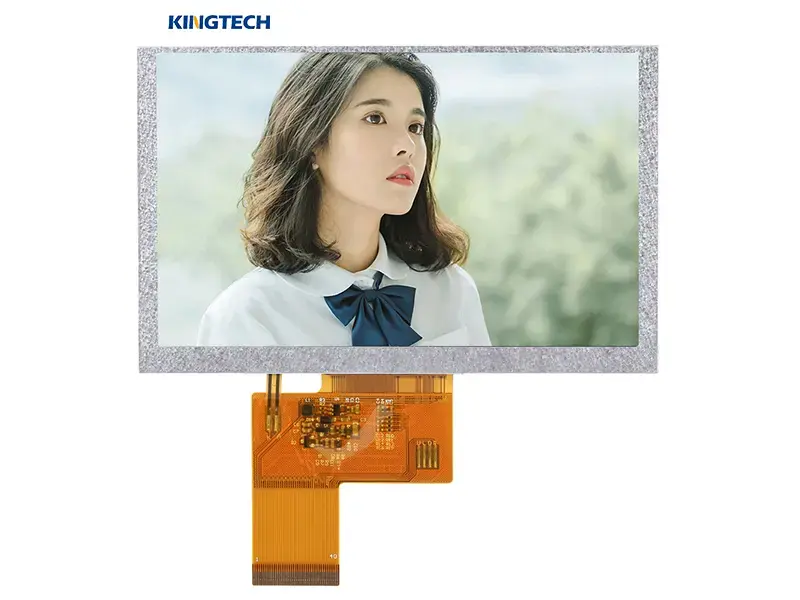

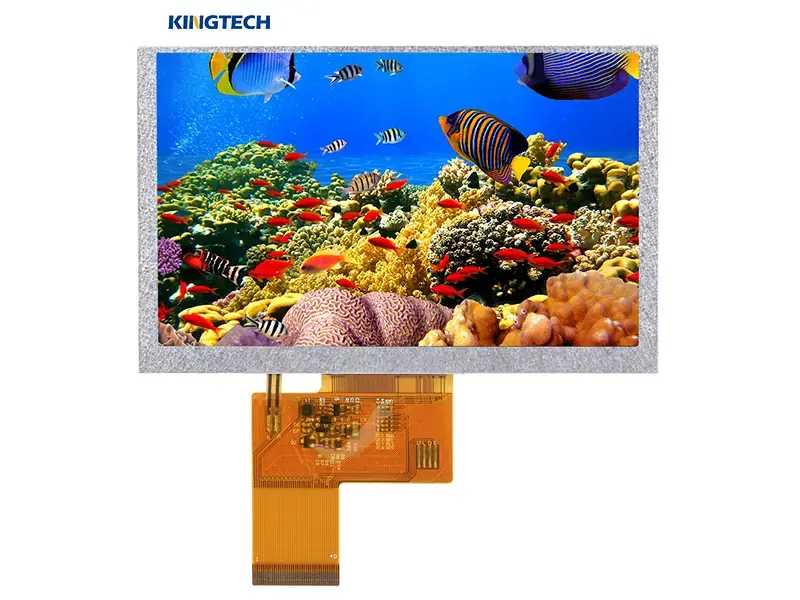

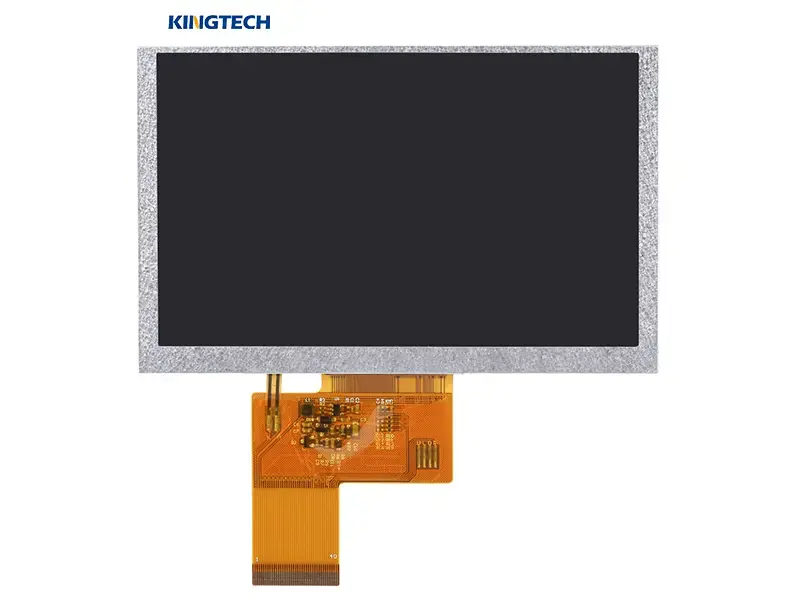

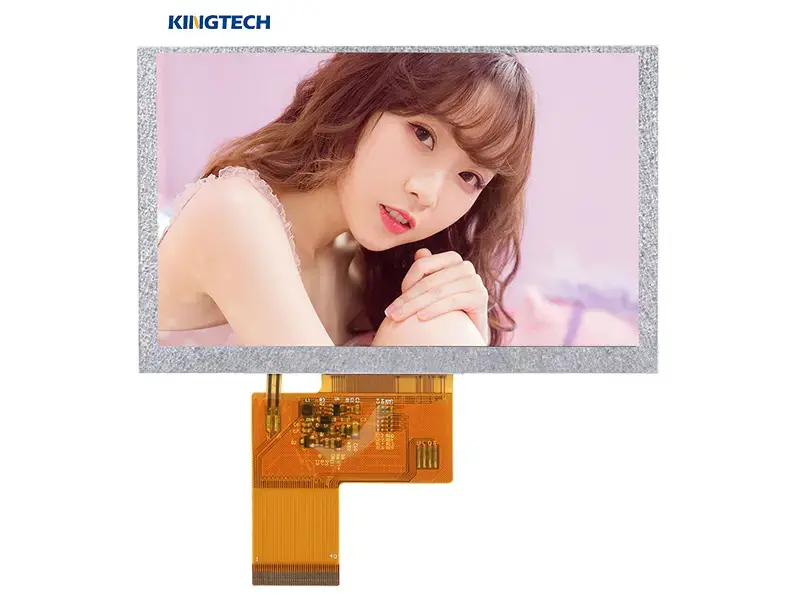

5 inch 800×480 sunlight readable LCD display front view
5 inch 800×480 sunlight readable LCD display back view

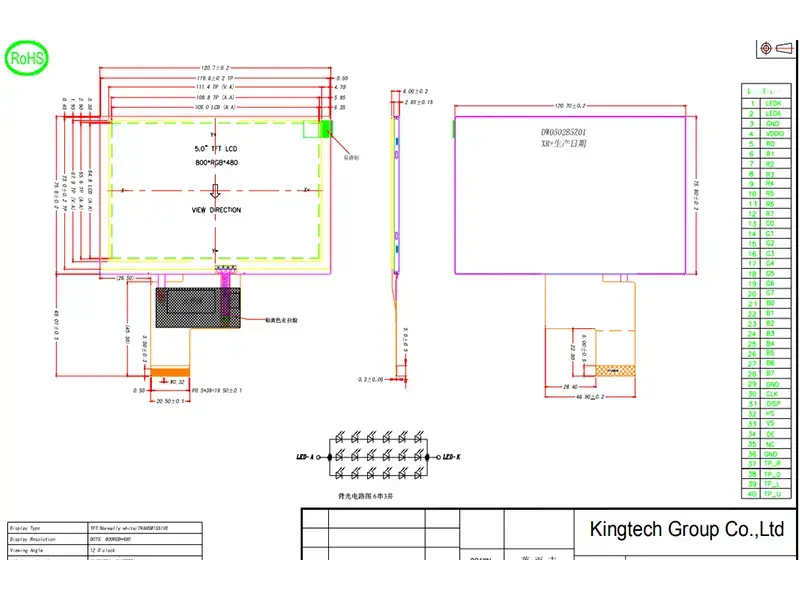

5 inch 800×480 sunlight readable LCD display Machine Drawing
