240×320 capacitive 3.2 tft lcd module touch panel

Item	3.2 inch 240×320 QVGA TFT display
Model No	PV03200DX39B
Resolution	240×320

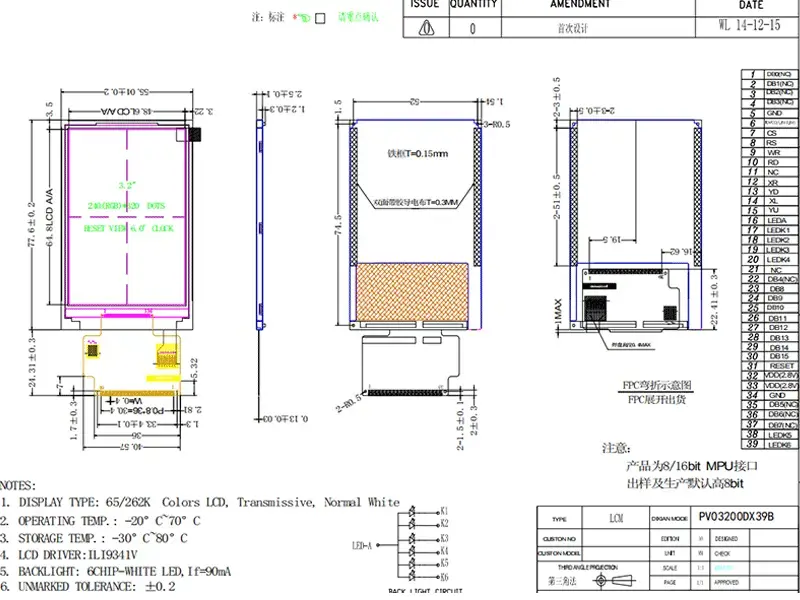

Outline Dimension	77.6(L)55.04(W)2.5(T)
Active Area(mm)	64.8 (L)*48.6(W)
Brightness	230nits
Viewing Angle	6 O’clock
Interface	MCU 8/16BIT
Driving IC	ILI9341V
PIN	39
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Touch	Can custom capacitive/ resistive touch

For product pricing,customization,or other inquiries:

3.2 inch 240×320 QVGA small / Tiny TFT LCD display
1. PV03200DX39B mainly application for handheld device, medical smart home equipment.
2. It with 240×320 resolution/QVGA, MCU 8/16BIT interface, 6 O’clock viewing angle, 230 brightness, ILI9341V Driving IC .
3. It also can custom resistive and capacitive touch scree as customer ‘s requirement .
4. It is A grade product , the good quality well use for handheld device, medical smart home equipment.

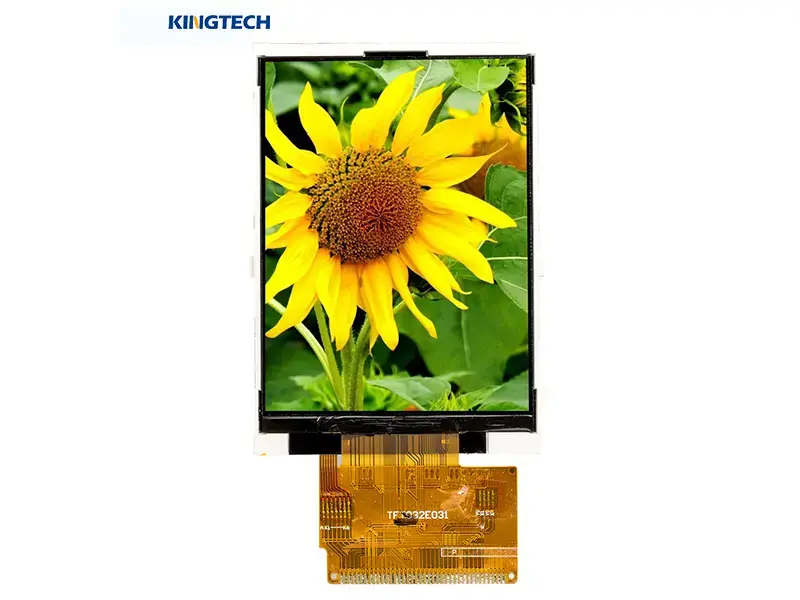

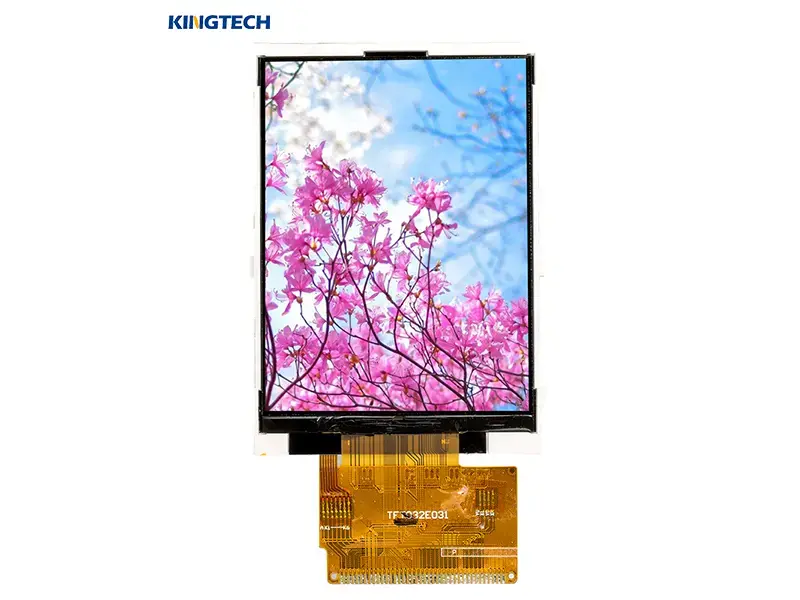

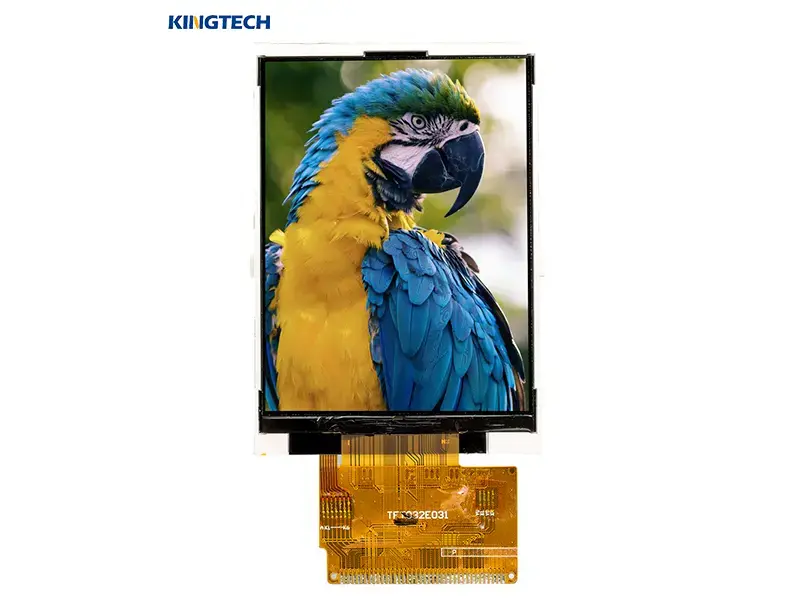

3.2 inch 240×320 Tiny TFT LCD display front view
