QVGA ST7789 20 pin 3.2 inch tft lcd screen

Item	3.2inch 240*320 LCD display
Model No	PV032005HZ20F
Resolution	240RGB x 320 dots

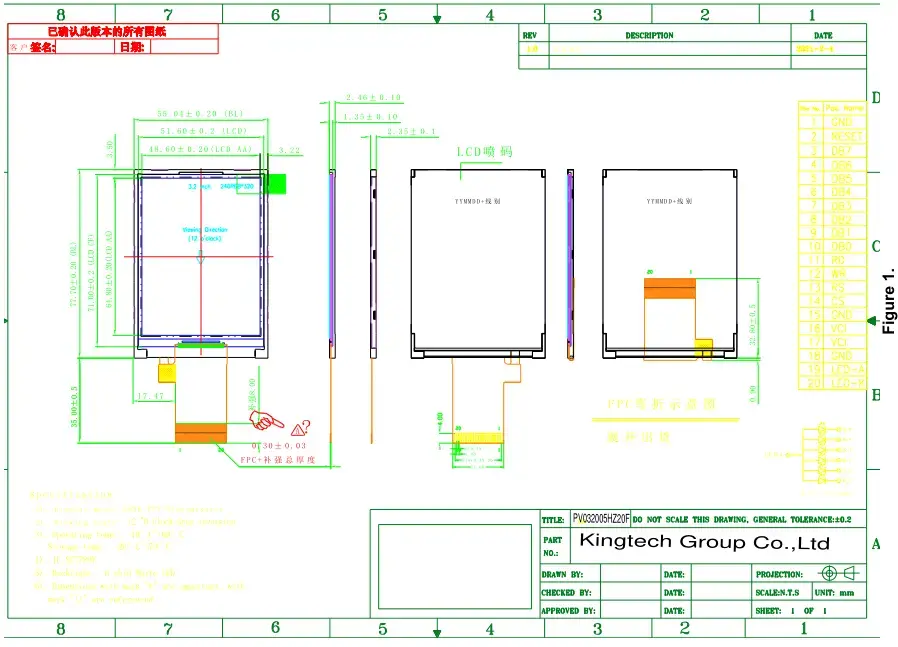

Outline Dimension	55.04(H ) x77.70(V) x2.46(T)
Active Area(mm)	48.60(H) x64.80(V)
Interface	MCU 8bit
Viewing Angle	12 “O Clock Gray inversion
Driving IC	ST7789
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-10℃ ~ 60℃
Storage Temperature	-20℃ ~ 70℃
Brightness	150nits

For product pricing,customization,or other inquiries:

3.2 inch 240×320 resolution MCU 8 bits interface ST7789 lcd display
1.PV032005HZ20F mainly application for Industrial ，medical equipment handheld device .
2.It with 240×3202 resolution ,MCU 8bit interface ,ST7789 driver IC ,
3.It also can custom touch panel and interface, brightness as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

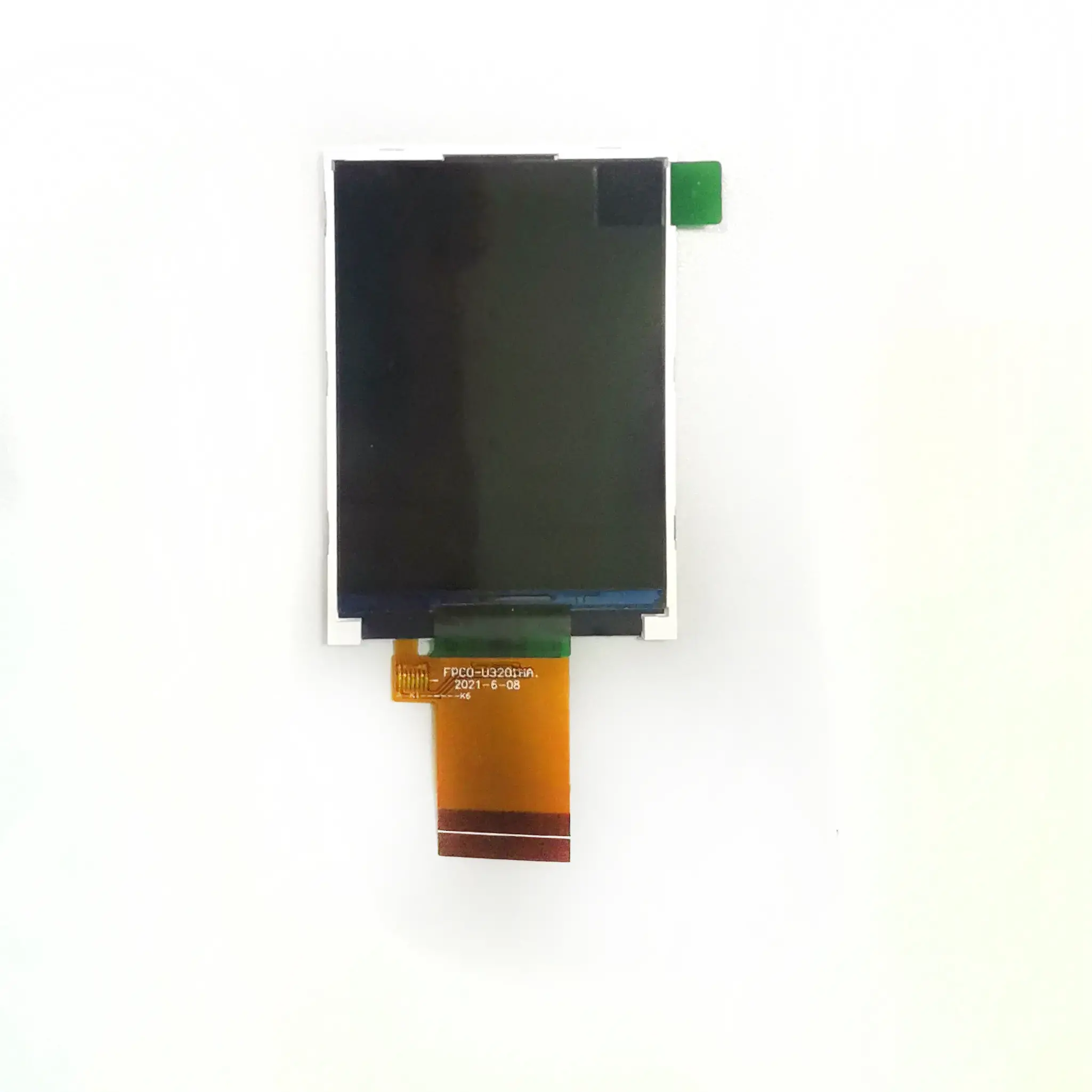

Front view

3.2 inch 240*320 LCD display
