SPI RGB mcu 45 pin 240×320 capacitive tft 3.2 touch

Item	3.2 inch 240×320 LCD display screen
Model No	PV032004YP45E
Resolution	240×320
Outline Dimension	48.40(W)× 81.50(H)×2.77(T)
Active Area(mm)	41.76(W)× 69.60(H)
Interface	SPI+18-BIT RGB/MCU interface
Viewing Angle	6 o’clock
Drive IC	ST7793
Display Mode	262K color TFT / Transmissive / Normally white
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Brightness	400nits
Touch screen	Can custom resistive touch and capacitive touch

For product pricing,customization,or other inquiries:

3.2 inch 240×320 resolution RGB/MCU interface 400nits brightness lcd display
1.PV032004YP45E mainly application for Industrial ，medical equipment .
2.It with 240×320 resolution , 400nit brightness , SPI+18-BIT RGB/MCU interface , TN/ 6 o’clock view angle, ST7793 driver IC.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

3.2 inch small screen front view

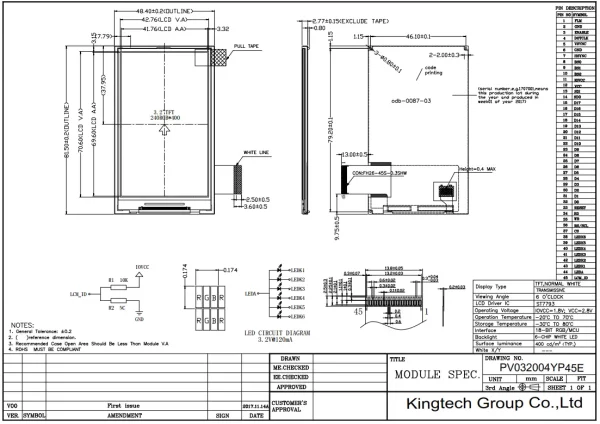

3.2 inch tft lcd module
