24 bit rgb sunlight readble 3.5 inch tft lcd module 320×240

Item	3.5 inch 1000nits LCD display module
Model No	PV03509LZR54J
Resolution	320×240

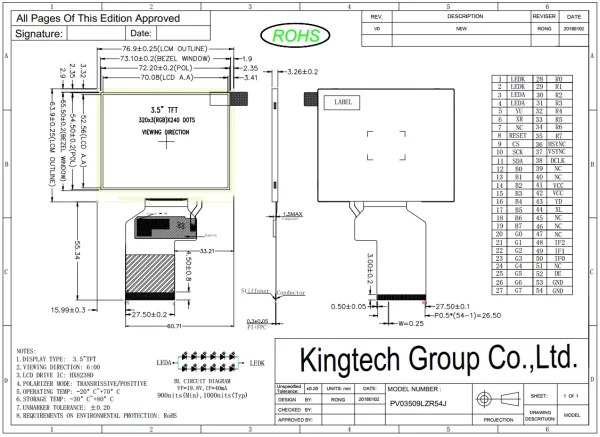

Outline Dimension	76.7063.703.26
Active Area(mm)	70.08*52.56
Interface	24-bit RGB interface
Viewing Angle	12 O’clock
Brightness	1000nits
Driver IC	HX8238-D
Display Mode	Transmissive / Normally Black
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃

For product pricing,customization,or other inquiries:

3.5 inch 320×240 QVGA 1000nits high brightness RGB/SPI /MCU interface LCD display

1. PV03509LZR54J mainly application for handheld device
2. It with 320×240 resolution , 1000nits high brightness/ sunlight readable/ outdoor, RGB interface , HX8238-D Driver IC, TN/12 O’clock view angle.
3. And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ，medical application .

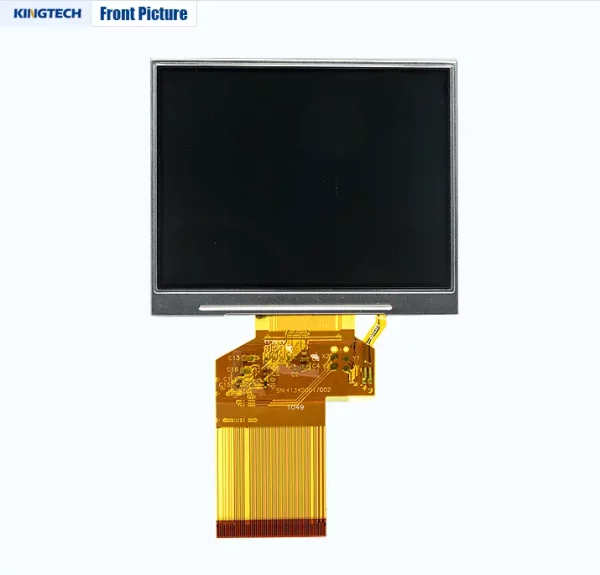

PV03509LZR54J front
