24 bit rgb 1000 nits 3.5 inch tft lcd module 320×240

Item	3.5 inch 320×240 LCD display
Model No	PV03501TYD54C
Resolution	320×240

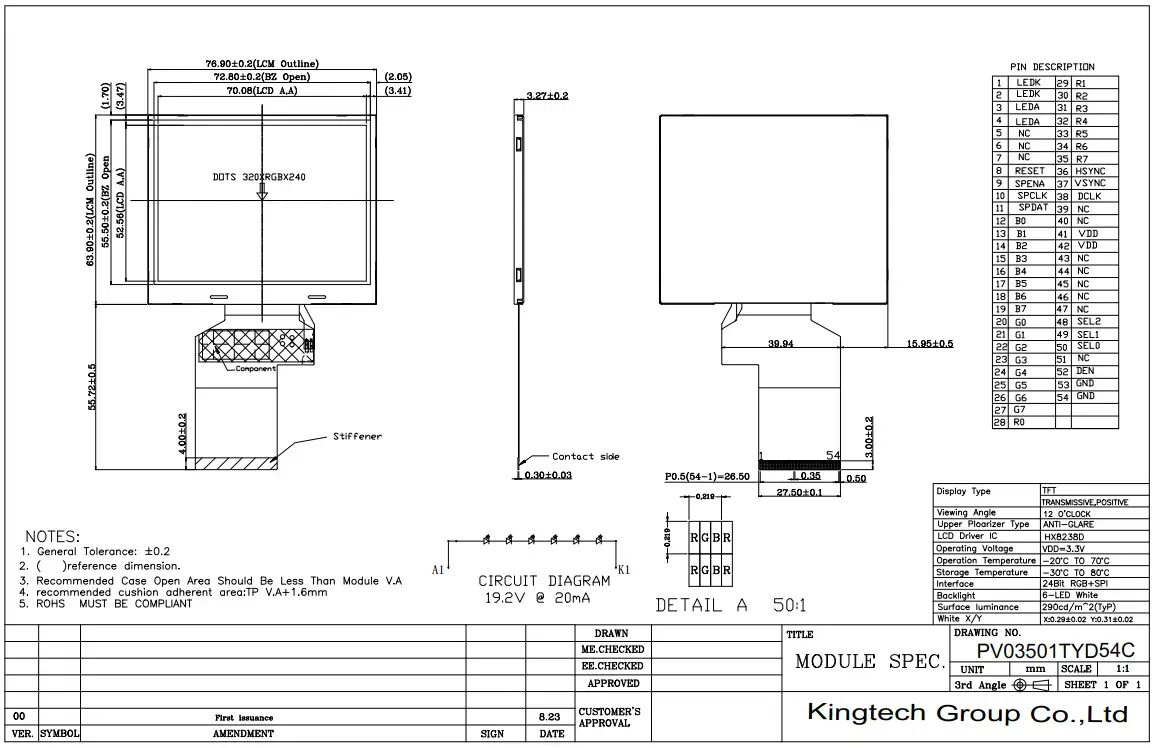

Outline Dimension	76.9063.903.27 MM
Active Area(mm)	70.08*52.56 mm

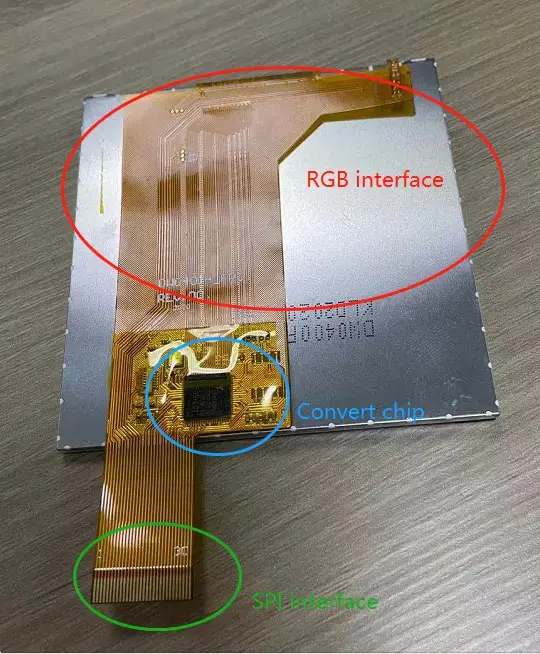

Interface	24BIT RGB+SPI / SPI MCU interface
Viewing Angle	12 O’clock
Driving IC	HX8238D / SSD2119
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	290nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

3.5 inch 320×240 resolution RGB/SPI/MCU interface LCD display
1.PV03501TYD54C mainly application for handheld device
2.It with 320×240 resolution . RGB, SPI and MCU interface , SSD2119 Driver IC.
3.And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4.It is A grade product , the good quality well use for Industrial ，medical application .

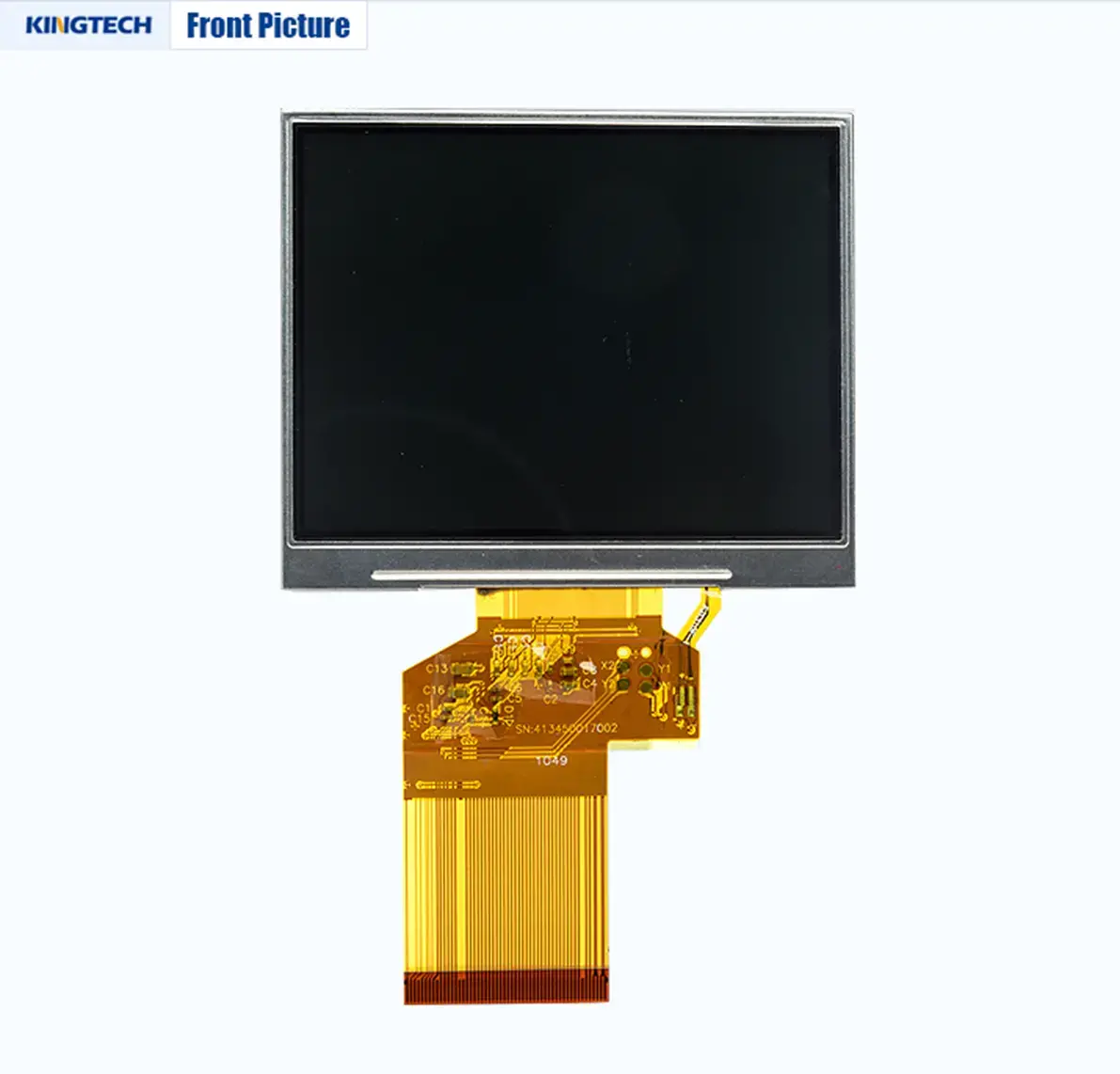

3.5 inch QVGA TFT LCD display Front view

3.5 inch QVGA TFT LCD display
