China custom tft 320 x 240 3.5 inch lcd screen

Item	3.5 inch 320×240 TFT display module
Model No	PV03516T0154P
Resolution	320×240
Outline Dimension	76.9063.903.15
Active Area(mm)	70.08*52.56
Brightness	540nits
Interface	RGB+SPI Interface
Viewing Angle	12 O’clock
Driver IC	NV3035GTC
Display Mode	Transmissive / Normally Black
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃

For product pricing,customization,or other inquiries:

3.5 inch 320×240 QVGA resolution 540 nits RGB+SPI interface LCD module

1. PV03516T0154P mainly application for handheld device
2. It with 320×240 resolution , SPI+RGB interface , NV3035GTC Driver IC, 540nits jigh brightness, TN/ 12 O’clock view angle.
3. And it can custom capacitive and resistive touch panel as customer ‘s requirement;
4. It is A grade product , the good quality well use for Industrial ，medical application .

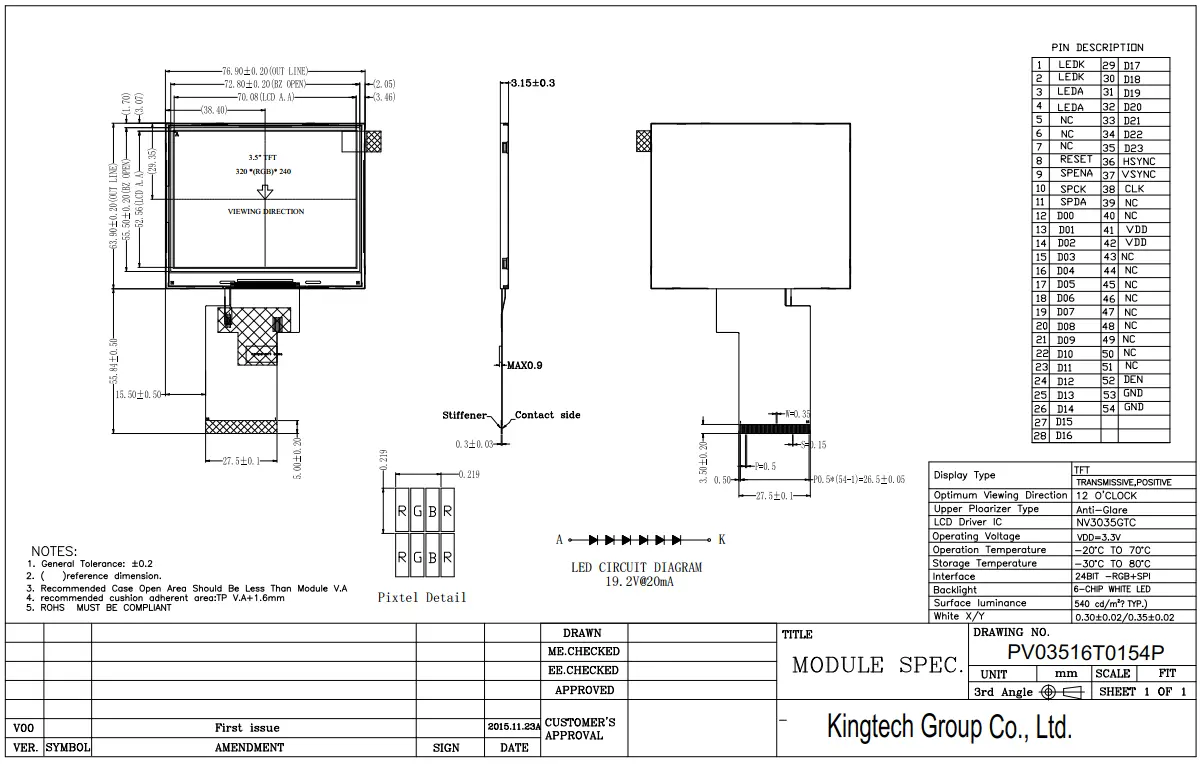

3.5 inch RGB+SIP interface LCD display front view
