3-line SPI 200 nits ips 1.54 inch ips capacitive tft touch screen

Item	1.54inch 240×240 TFT LCD module
Model No	PV15401KLD24D
Resolution	240×240
Outline Dimension	31.52(H)x33.72(W)x1.85(T)
Active Area(mm)	27.72(H)x27.72(W)
Interface	3-Line SPI
Viewing Angle	ALL
Driving IC	ST7789V
Display Mode	Transmissive / Normally Black
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	300nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

1.54 inch 240×240 IPS SPI square small / Tiny TFT LCD display .

1. PV15401KLD24D mainly application for smart watch, smart home,Industrial device and wearable devices
2. It with IPS Full viewing angel , 240×240 resolution , 3-Line SPI interface , ST7789V Driver IC, 300 nits brightness .
3. And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4. The small size popular for smart watch market.

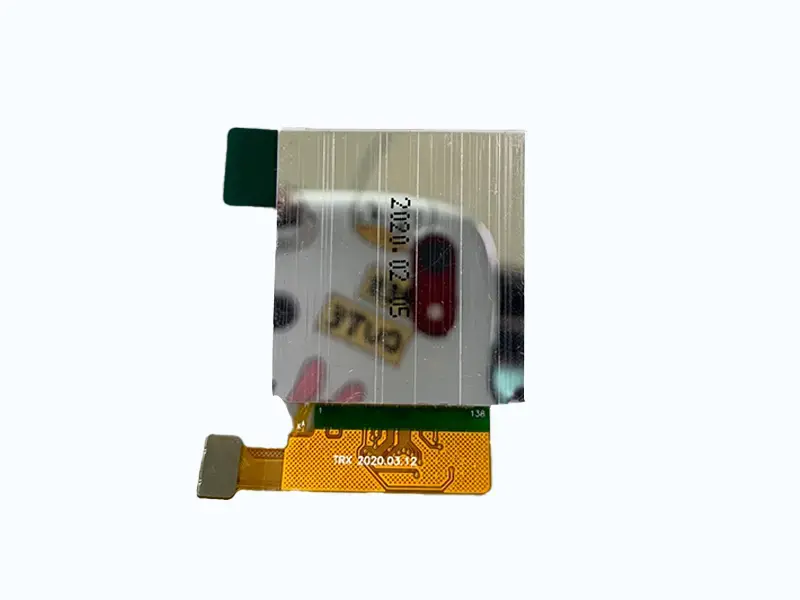

1.54 inch IPS 240×240 square LCD display front view

touch screen,small touch screen
