380 nits FULL HD ips 5 inch tft lcd display module

Item	5 inch ips 1080×1920 display
Model No	PV050FH-TONB4001
Resolution	1080×1920
Outline Dimension	63.68(W)116(H)0.66(T)
Active Area(mm)	61.52(W)*109.36(H)
Interface	MIPI
Viewing Angle	All
Brightness	380nits
Driving IC	RM67198
Display Mode	OLED / Normally Black
Operating Temperature	-20℃ to +60℃
Storage Temperature	-30℃ to +80℃
Touch screen	Capactive touch panel

For product pricing,customization,or other inquiries:

5 inch 1080×1920 High Resolution IPS MIPI AMOLED display .

1. PV050FH-TONB4001 mainly application for Smart Home Industrial ，medical equipment .
2. It with IPS free viewing angel , Super Thin 0.66mm, 1080×1920 High Resolution , 430 nits brightness, MIPI interface , existing capacitive touch .
3. And it can custom HDMI board to support Raspberry PI;
4. AMOLED display effect is better than the TFT LCD display . It is sunlight readable , super thin of … thickness, super power saving of … power. It can be well used for both indoor and outdoor.

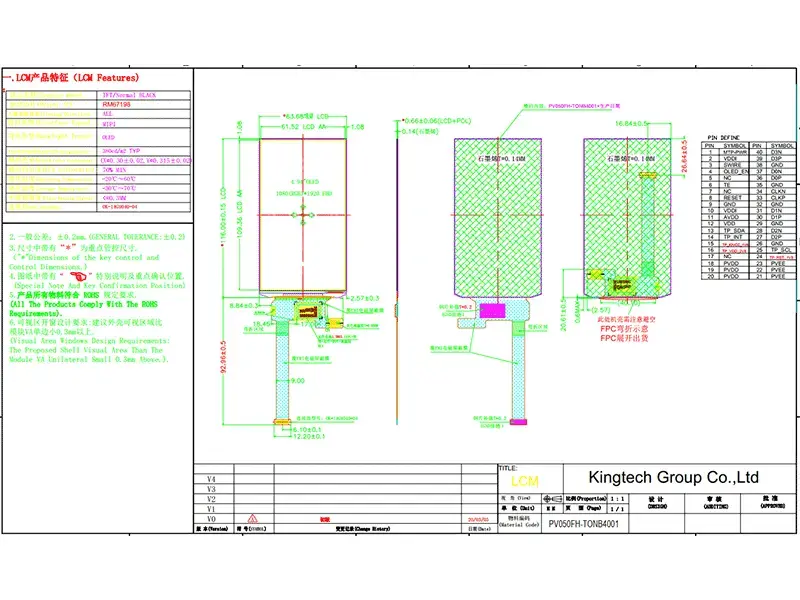

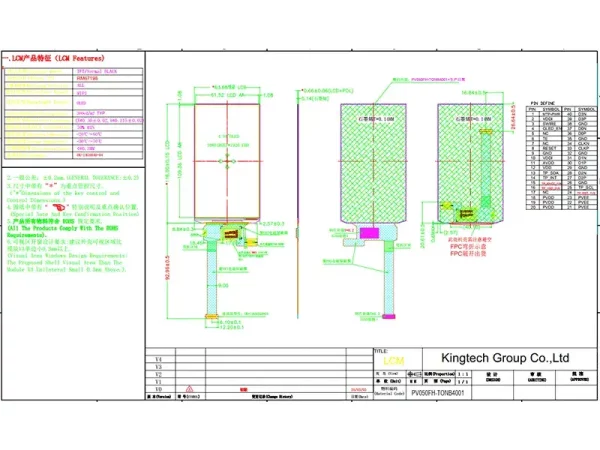

5 inch 1080X1920 MIPI interface portrait screen front view
