4.3 inch 24 BITS RGB 480×272 TFT LCD display with resistive touch

Item	4.3 inch 480X272 RGB interface lcd module
Model No	PV04301YP40B-R
Resolution	480×272
Outline Dimension	105.5067.204.20
Active Area(mm)	95.04*53.86
Interface	24 BITS RGB Interface
Viewing Angle	6 O’Clock
LED life	30000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Brightness	360nits
Touch screen	Resistive touch screen

For product pricing,customization,or other inquiries:

4.3 inch 480×272 resolution RGB interface 360nits brightness lcd display with resistive touch
1. PV04301YP40B-R mainly application for Industrial ，medical equipment .
2. It with 480×272 resolution , 360nit brightness , 24 BITS RGB interface existing resistive touch and capacitive touch.
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application .

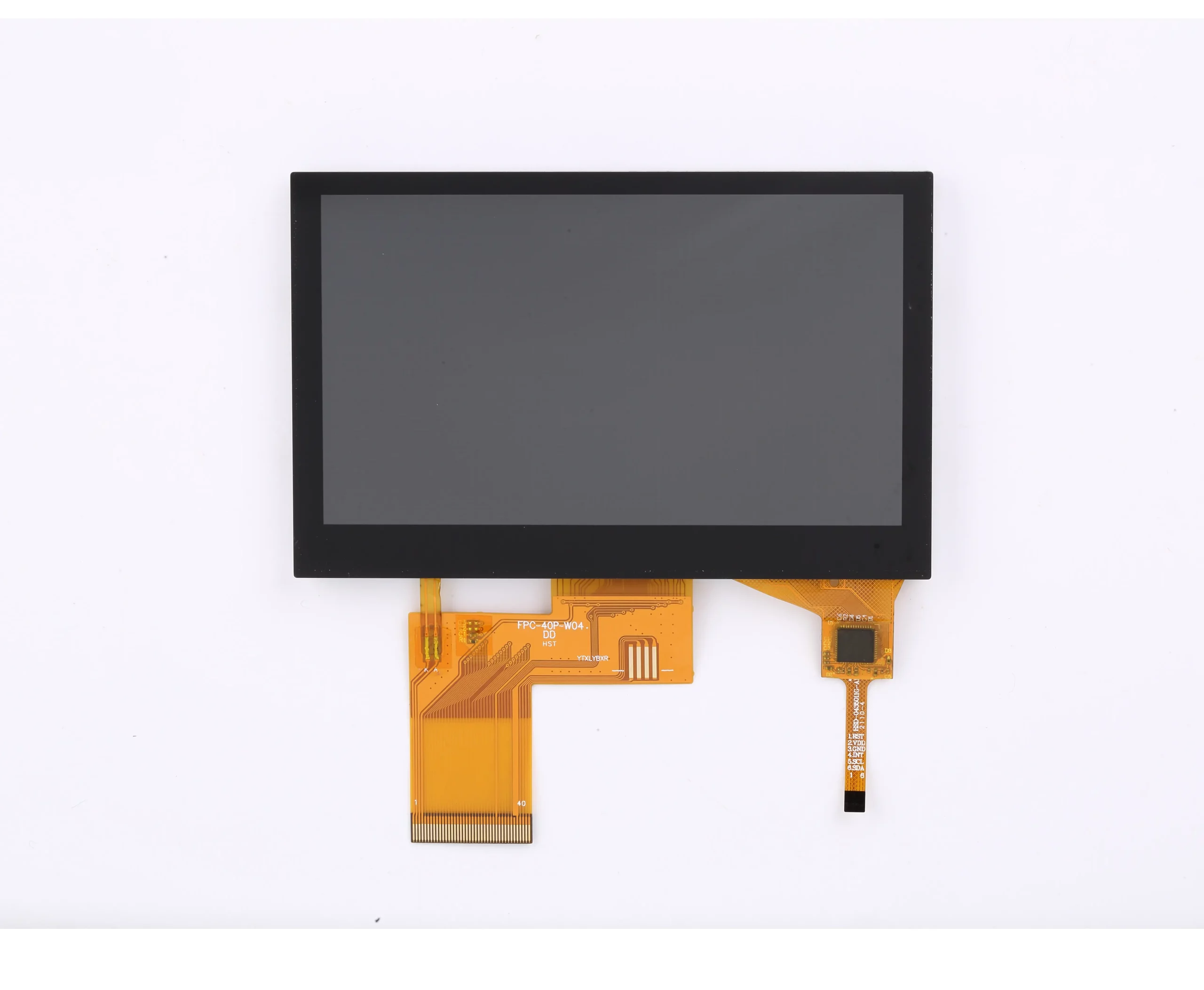

4.3” TFT with resistive touch front view
