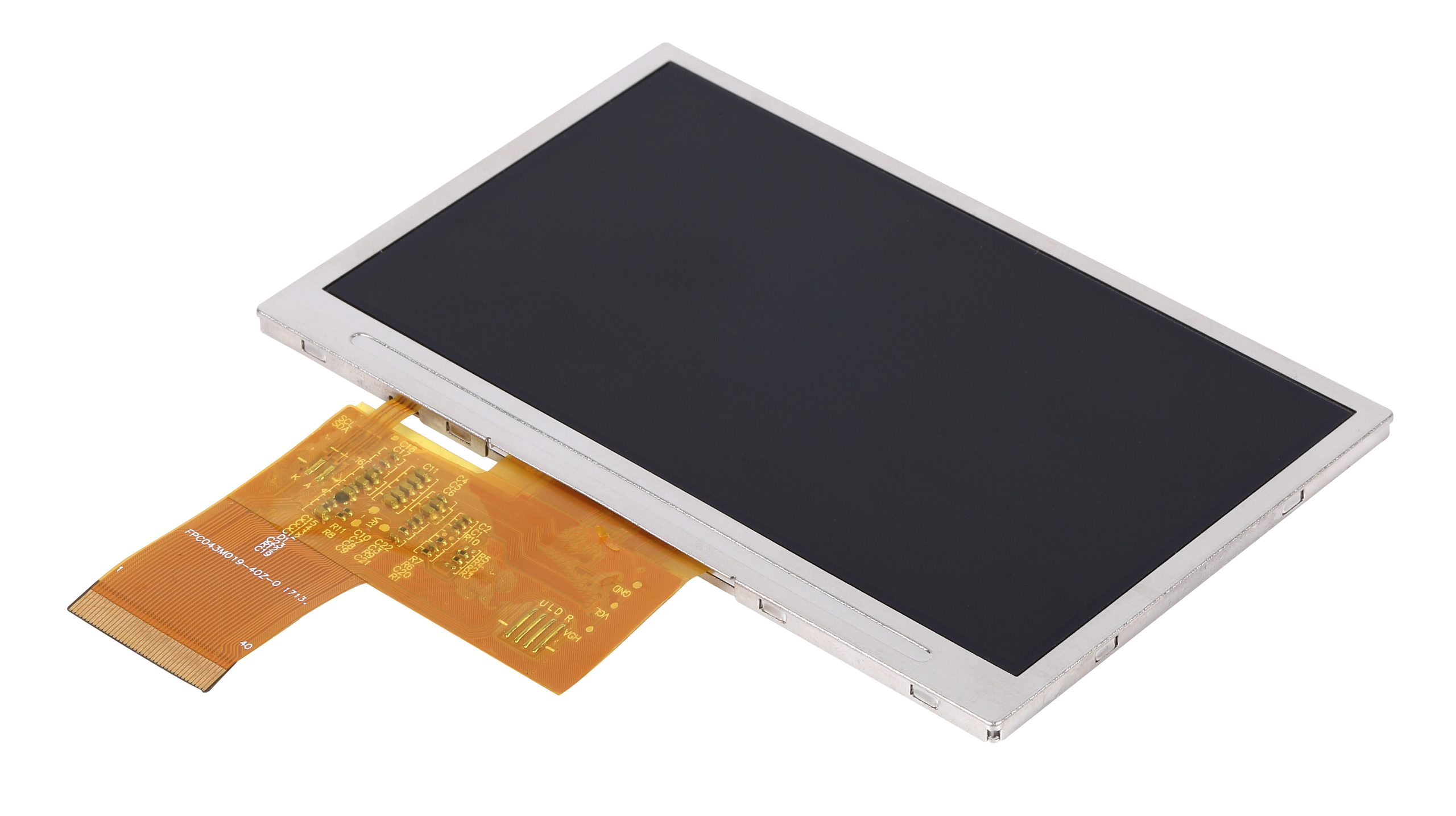

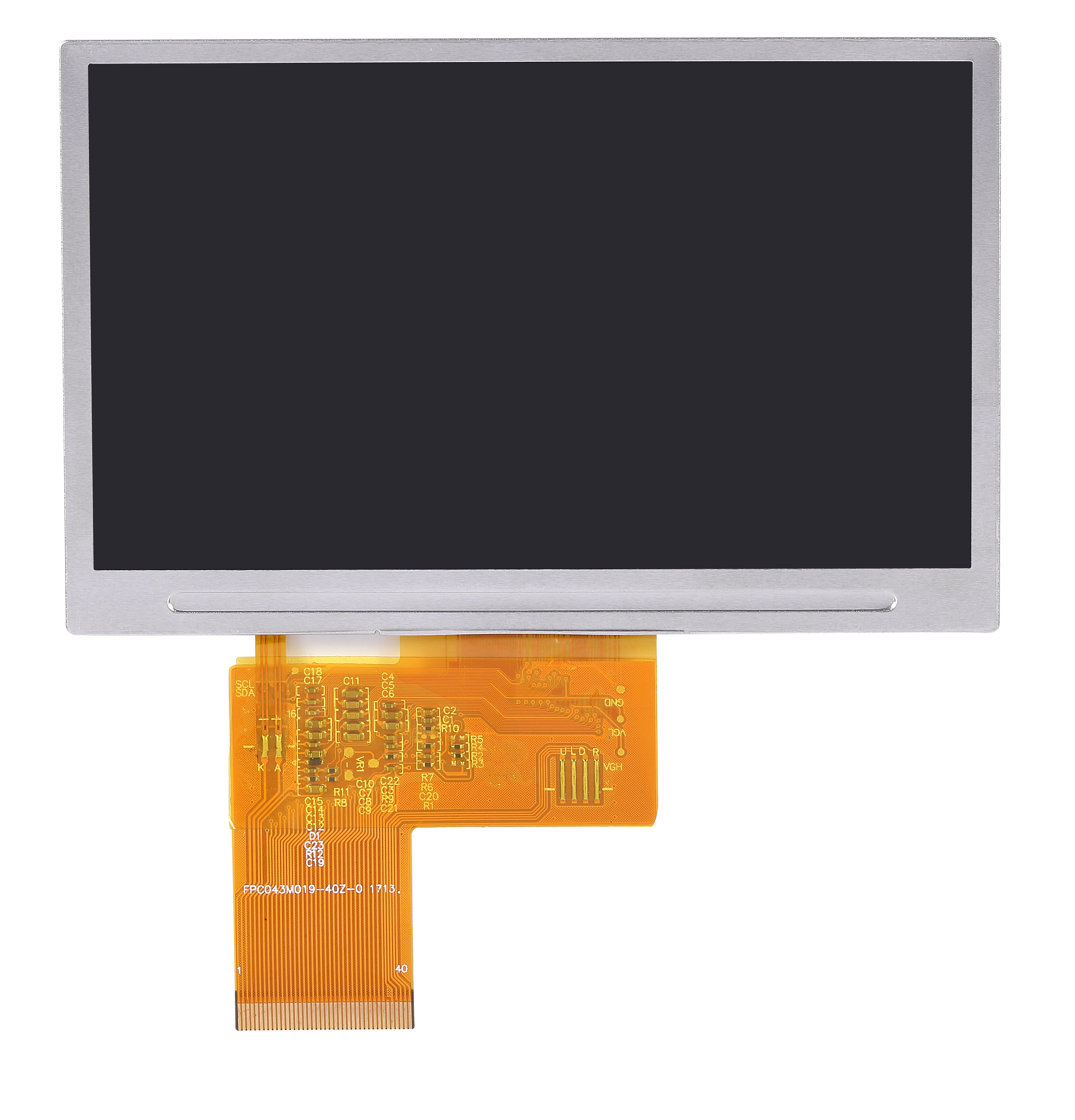

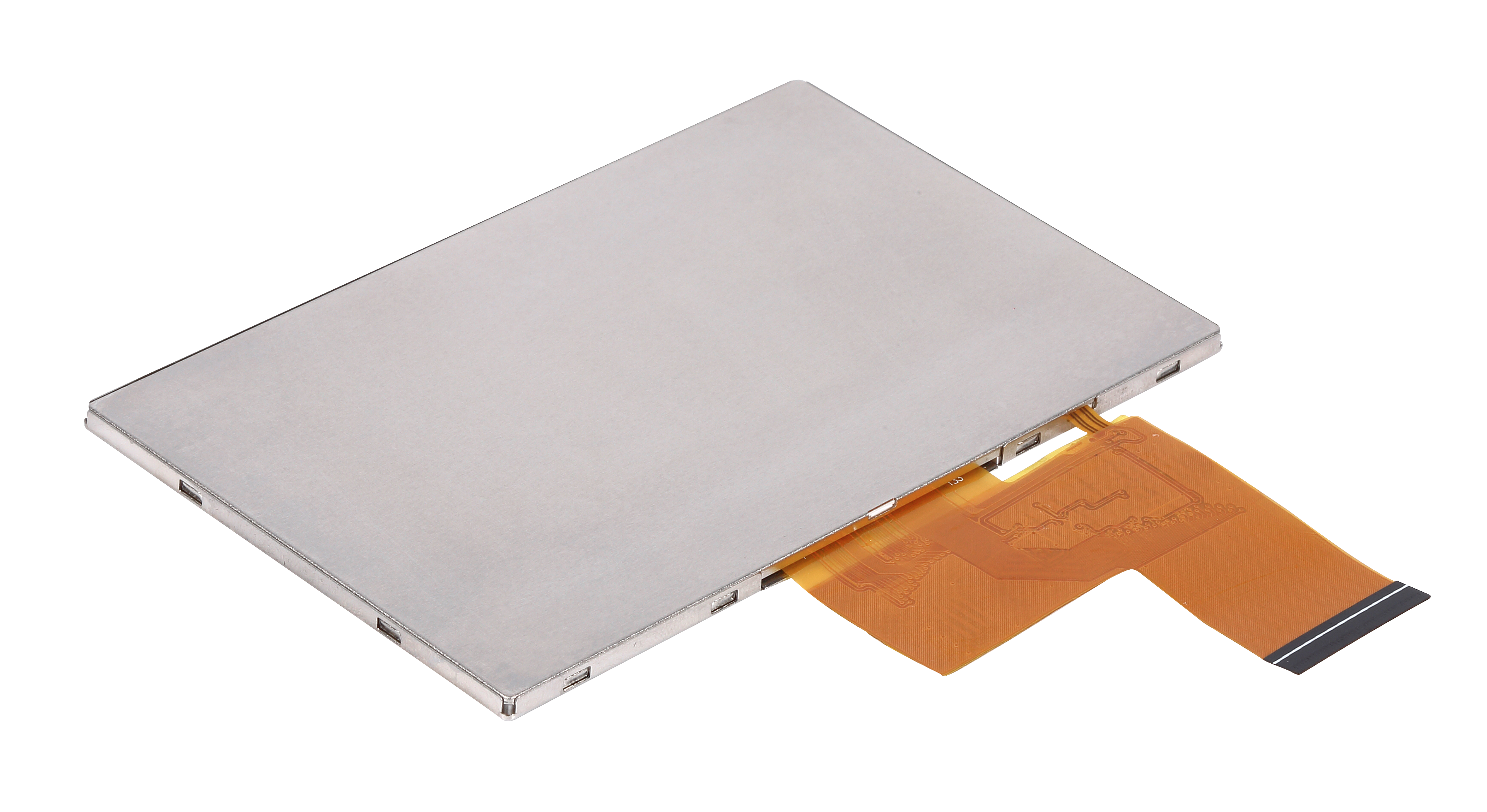

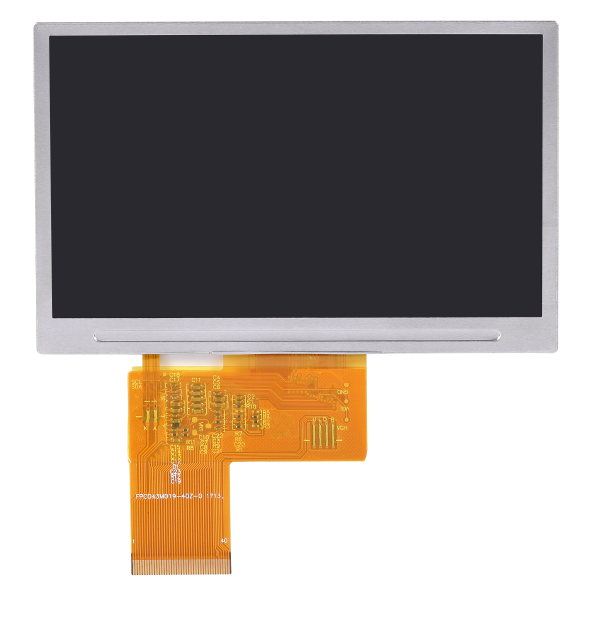

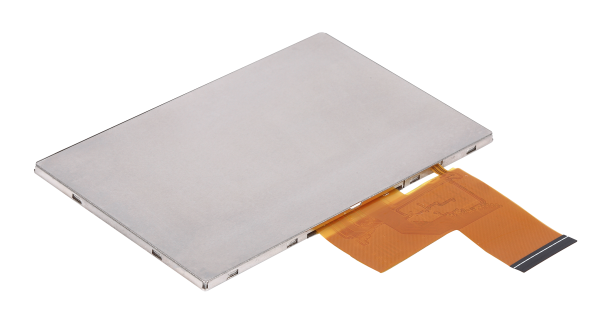

4.3 inch 480*272 TFT display module
| PV043027D0140X | 4.3 inch TN 480*272 TFT display |
| Model No. | PV043027D0140X |
| Resolution | 480*272 |
| Outline Dimension (mm) | 105.5*67.2*2.95 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | 12 O’clock |
| Brightness | 480nits |
| Interface | 24-BIT RGB |
| Backlight | 5*2 LED |
| Driving IC | HX8257A |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
For product pricing,customization,or other inquiries:
Share to:
- 4.3 inchTFTdisplay
- 480*272/WQVGA
- Stable supply
- 12 O’clock
- 24-BIT RGBinterface
- 480nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
