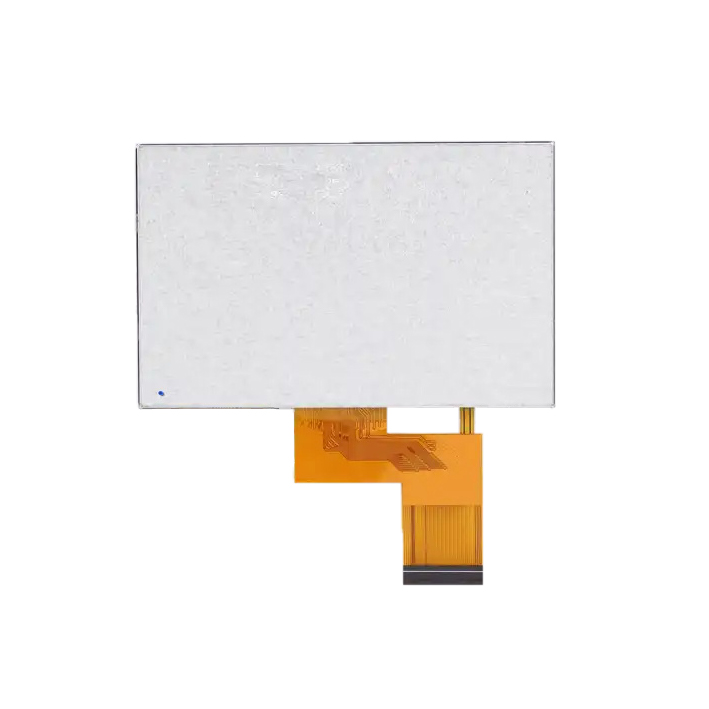

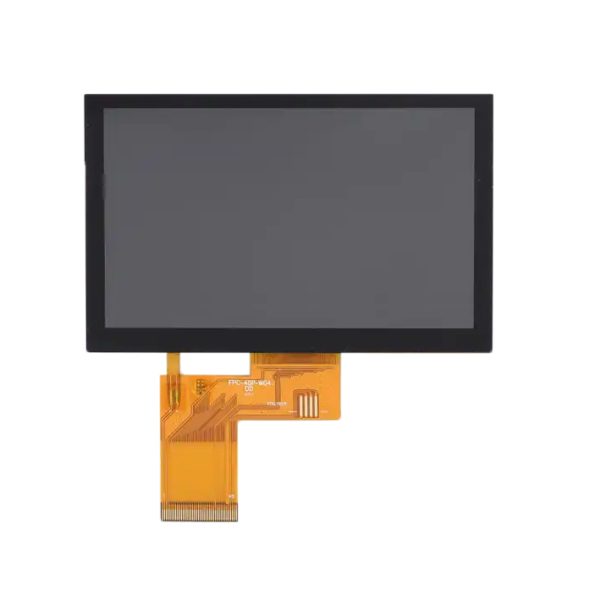

4.3 inch 480*272 TFT module display
| Item | 4.3 inch IPS 480*272 TFT display |
| Model No. | PV043031Y0140B |
| Resolution | 480*272 |
| Outline Dimension (mm) | 105.5*67.3*3 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 1100nits |
| Interface | RGB |
| Backlight | 8*2LED |
| Driving IC | SC7283 |
| PIN No. | 40 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike,Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- WQVGA resolution
- 1100nits brightness/Sunlight readable/High brightness/Outdoor
- -30~80C / Wide working temperature
- Can custom resistive touch and capacitive touch
