4.3 capacitive touch screen 4.3 inchlcd display

Item	4.3 inch TFT 480*272 display
Model No	PV043012HZ40M
Resolution	480(RGB)×272
Outline Dimension	105.567.23.0
Active Area(mm)	95.04*53.86
Interface	RGB 24 bits
Viewing Angle	6 O’CLOCK
Driving IC	ST7282
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	1000nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

4.3 inch 480×272 resolution RGB interface 1000nits brightness lcd display
1.PV043012HZ40M mainly application for Industrial ，medical equipment .
2.It with 480×272 resolution , 1000nit brightness ,RGB interface ,4311+ST7282 driver IC , existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

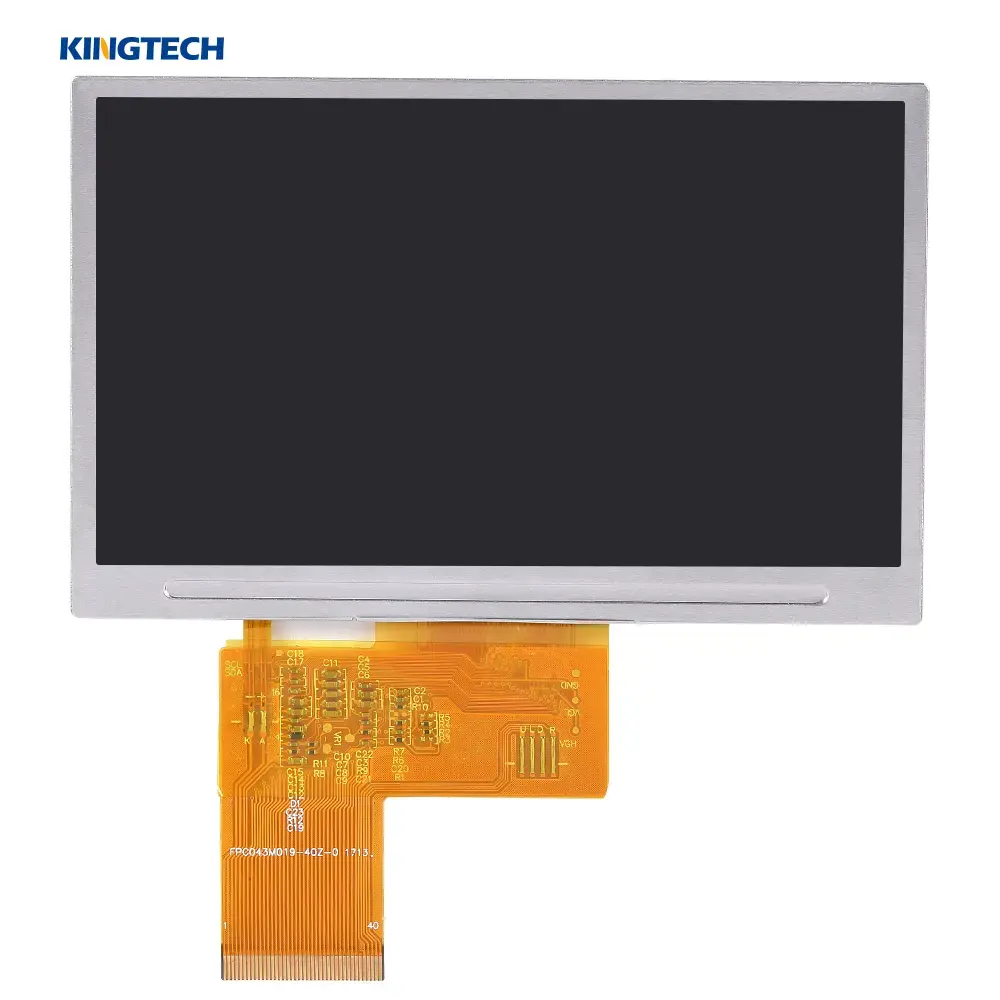

4.3 inch 480×272 lcd display Front View :

4.3 inchRGB 24 bits 480*272 display
