4.3 inch 480×272 resolution RGB interface display with capacitive touch
| Item | 4.3 inch 480×272 RGB lcd display |
| Model No | PV04300TYD40A-C |
| Resolution | 480×272 |
| Outline Dimension | 105.5*67.2*4.68 |
| Active Area(mm) | 95.04*53.856 |
| Brightness | 280nits |
| Viewing Angle | 12 O’Clock |
| Interface | 24 BITS RGB |
| Driving IC | HX8257A |
| PIN | 40 |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch | Capacitive/ resistive touch |
For product pricing,customization,or other inquiries:
Share to:
4.3 inch 480×272 resolution RGB interface display with capacitive touch
1. PV04300TYD40A-C mainly application for Industrial ，medical equipment .
2. It with 480×272 resolution 280nits brightness , RGB interface , HX8257A driver IC , 280nits brightness, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application .

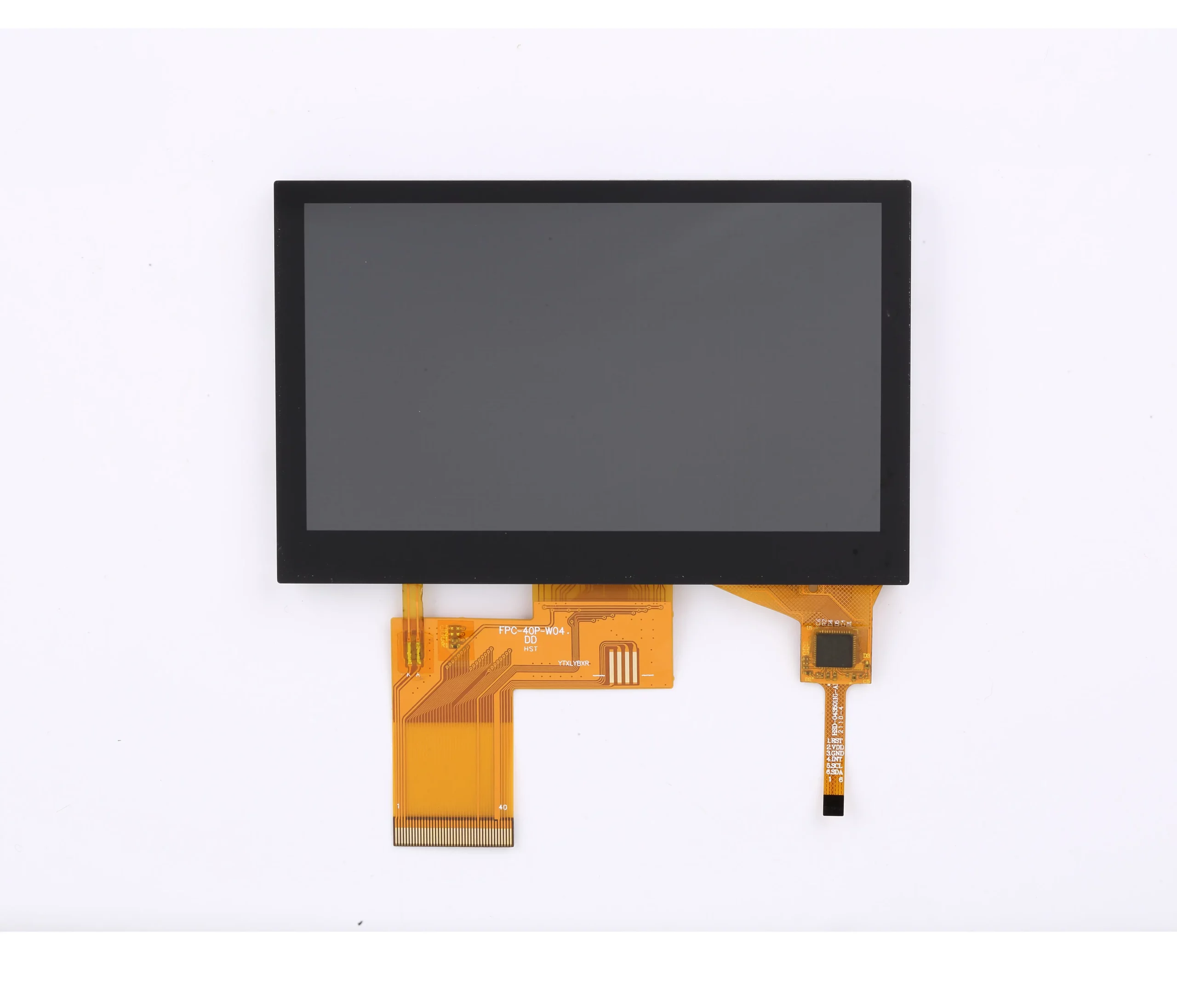

4.3 inch 480×272 lcd display front view
4.3 inch RGB lcd display back view

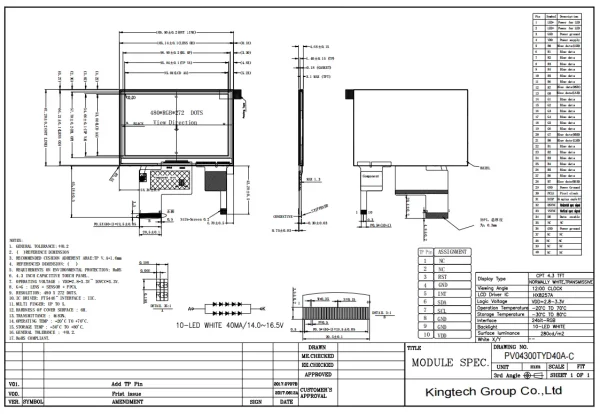

4.3 inch 480×272 RGB TFT lcd Machine Drawing
