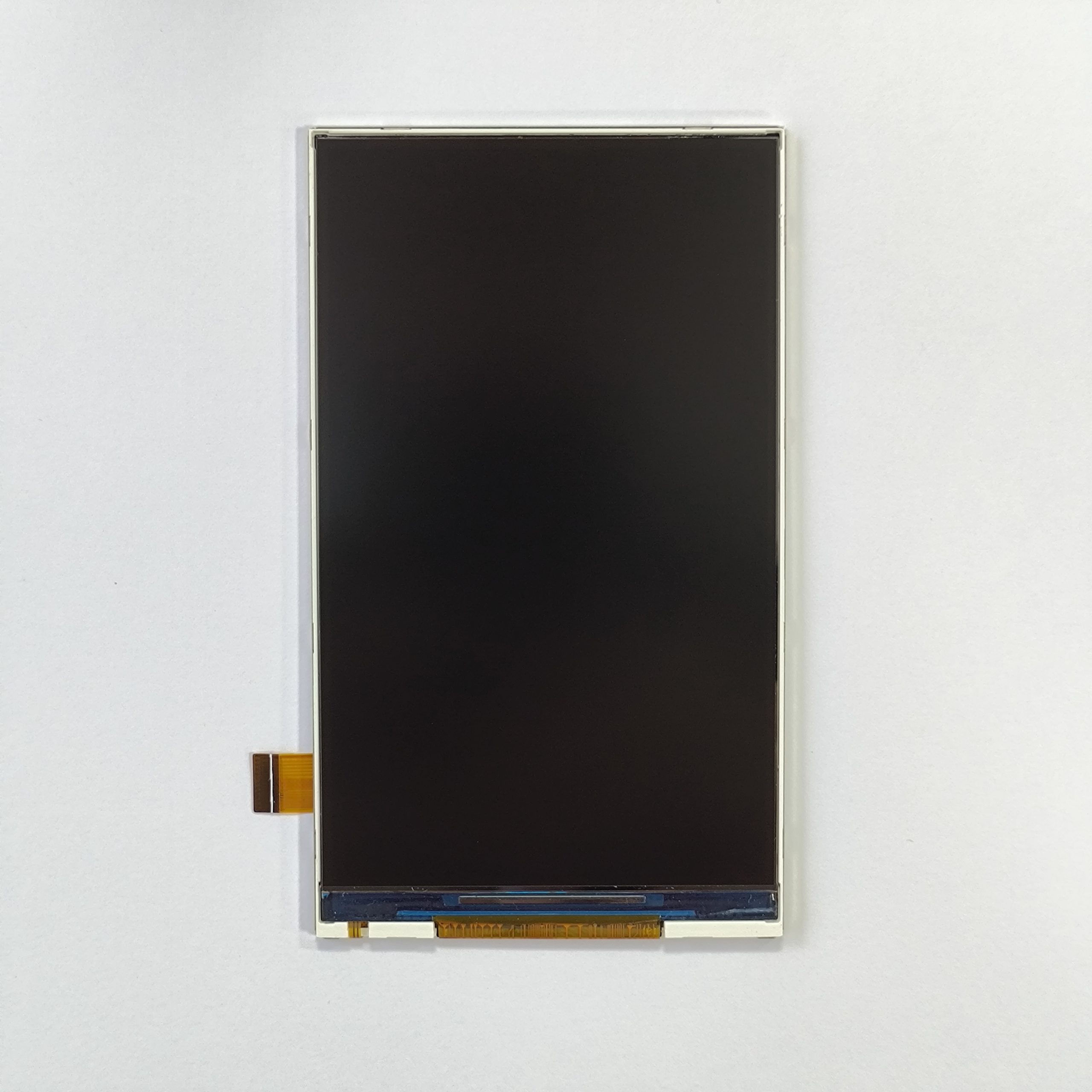

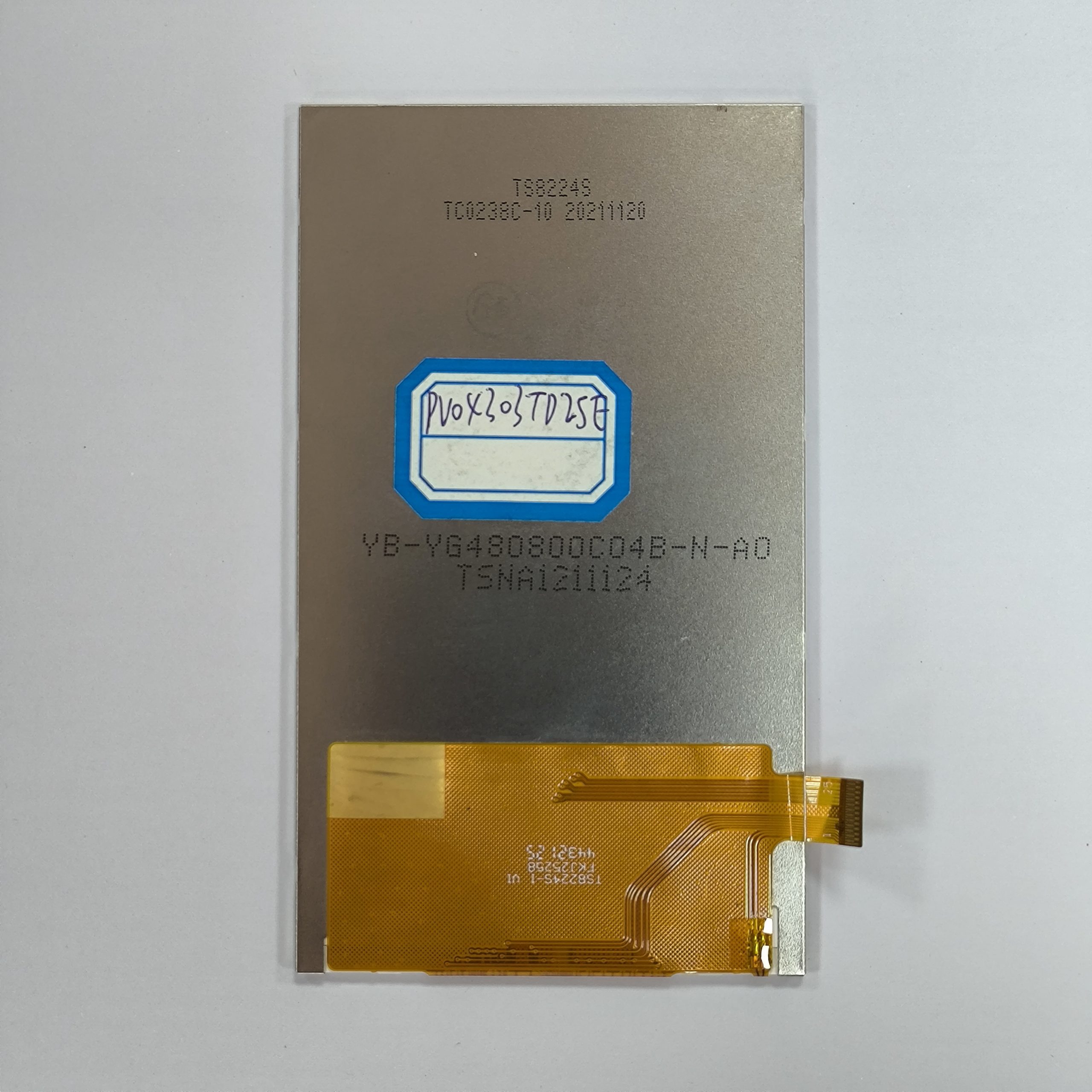

4.3 inch TFT-LCD module WVGA 480×800
Item 4.3 inch IPS TFT 480×800 module display
Model No. PV04303TD25E
Resolution 480*800

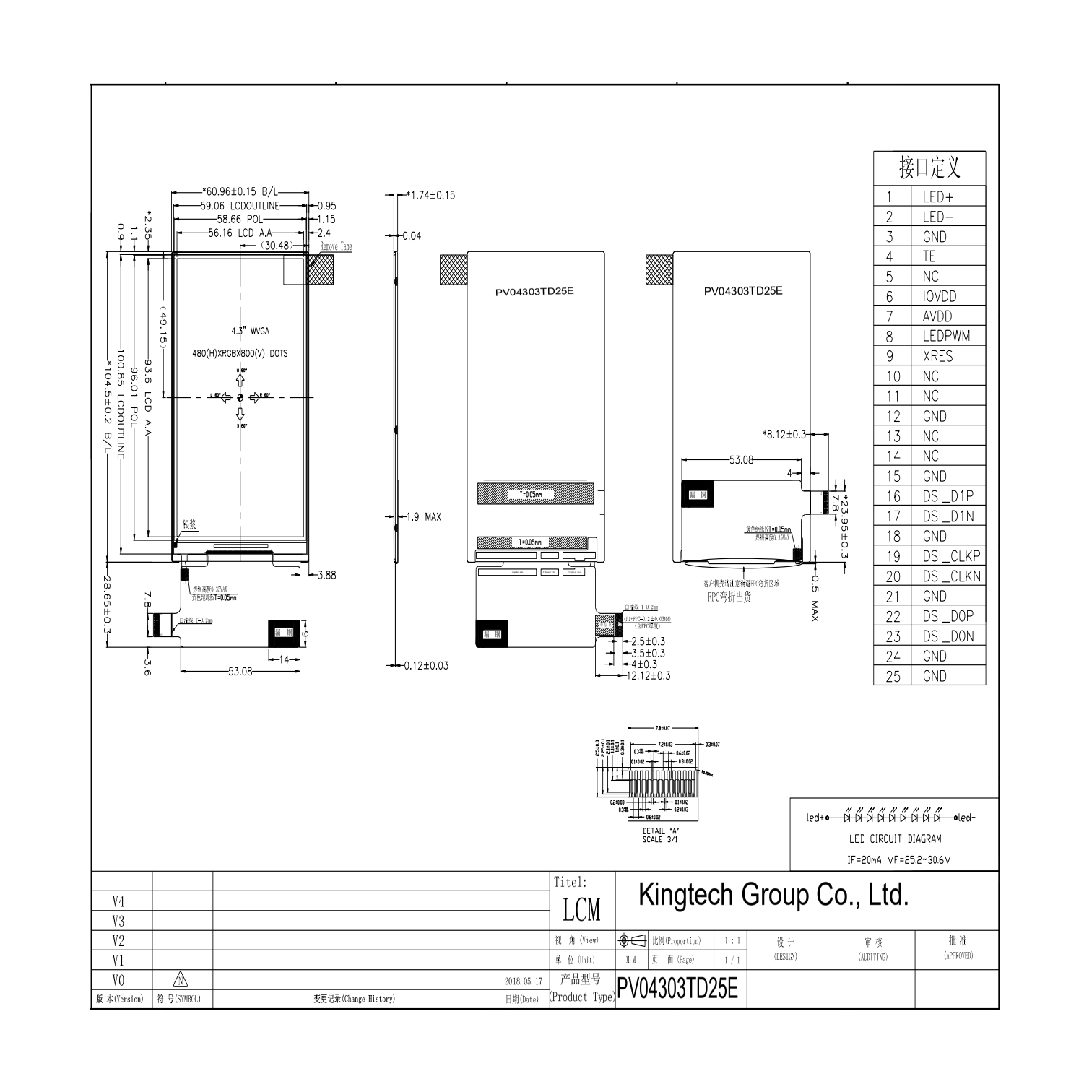

Outline Dimension (mm) 60.96*104.5*1.74
Active Area (mm) 56.16*93.60
Viewing Angle IPS
Brightness 400nits
Interface MIPI
Backlight 9*1LED
Driving IC ST7701S
PIN No. 25
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen Can customize resistive and capacitive touch screen
Application Medical, industrial, Smart home Appliance
For product pricing,customization,or other inquiries:
Share to:
- TFTdisplay
- 480*800/WVGA
- Stable supply
- Full Viewing angle80/80/80/80/IPS/Wide and All viewing angle
- MIPI Video Mode interface
- 400nits brightness
- Can custom resistive touch and capacitive touch
- Medical, industrial, Smart home Appliance
