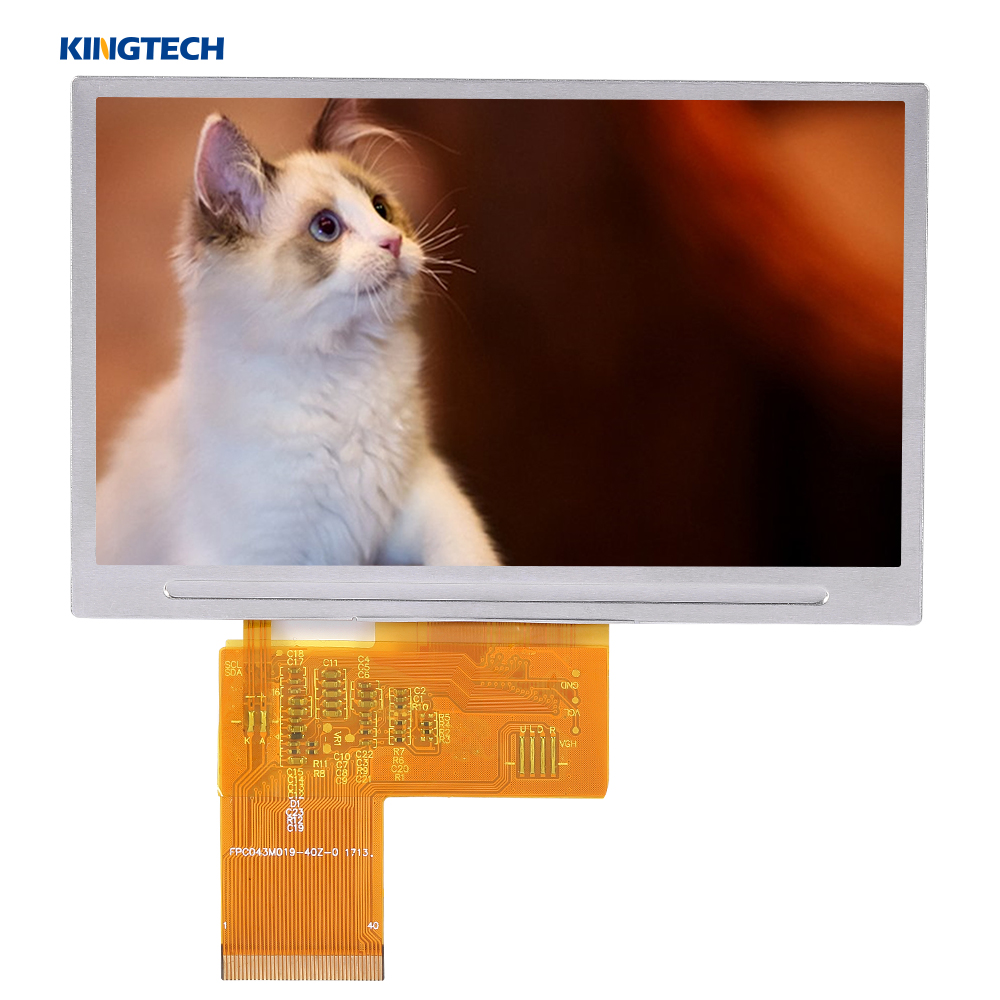

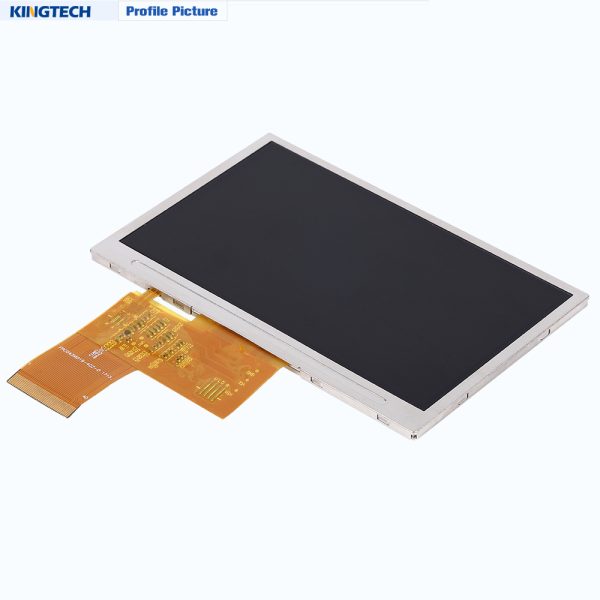

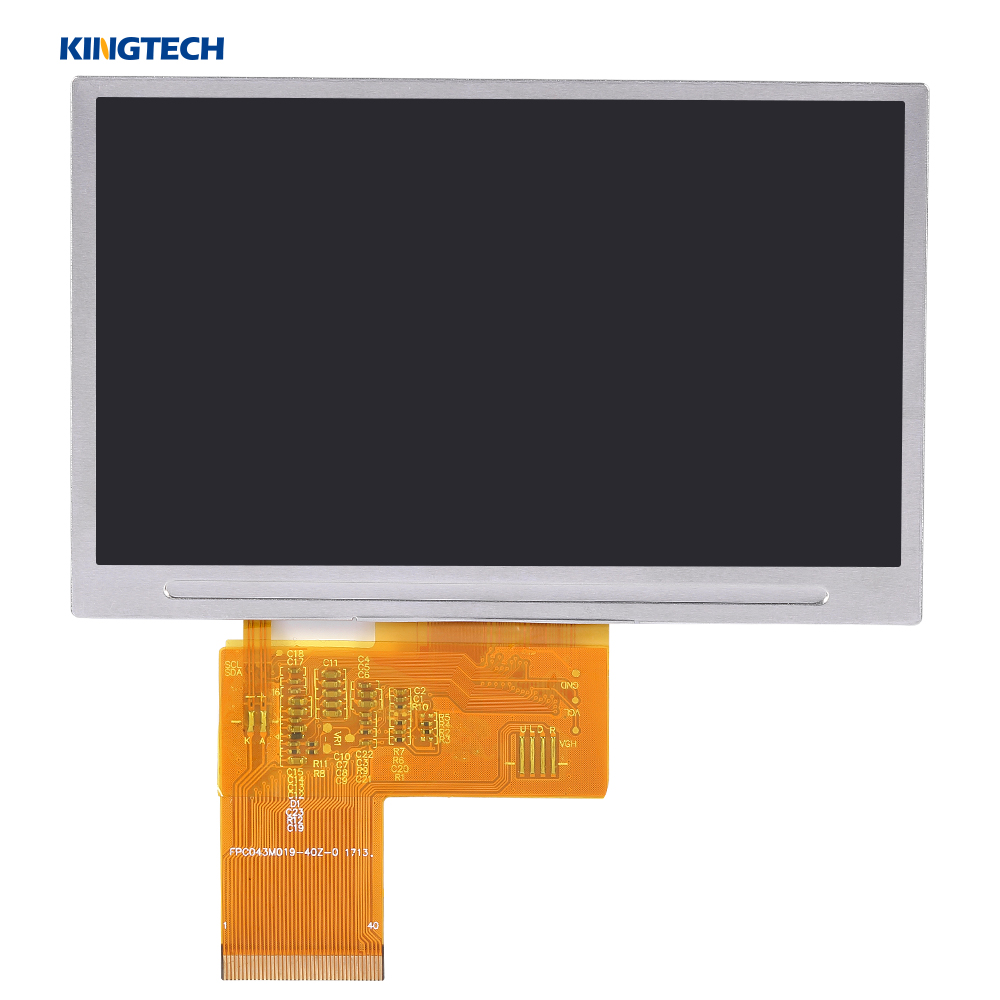

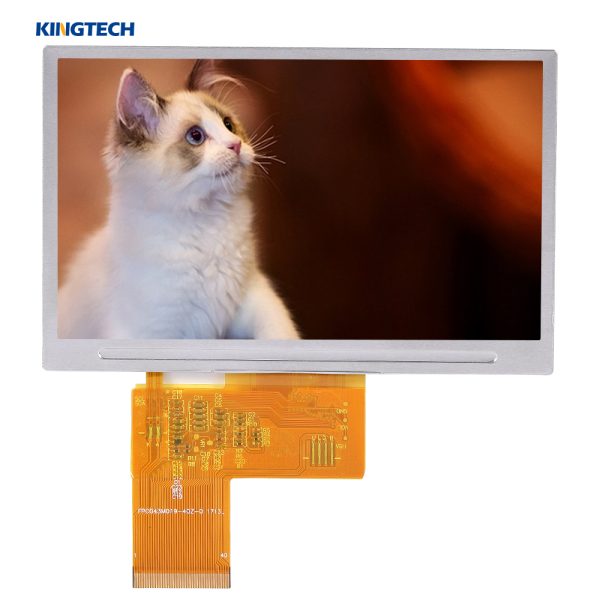

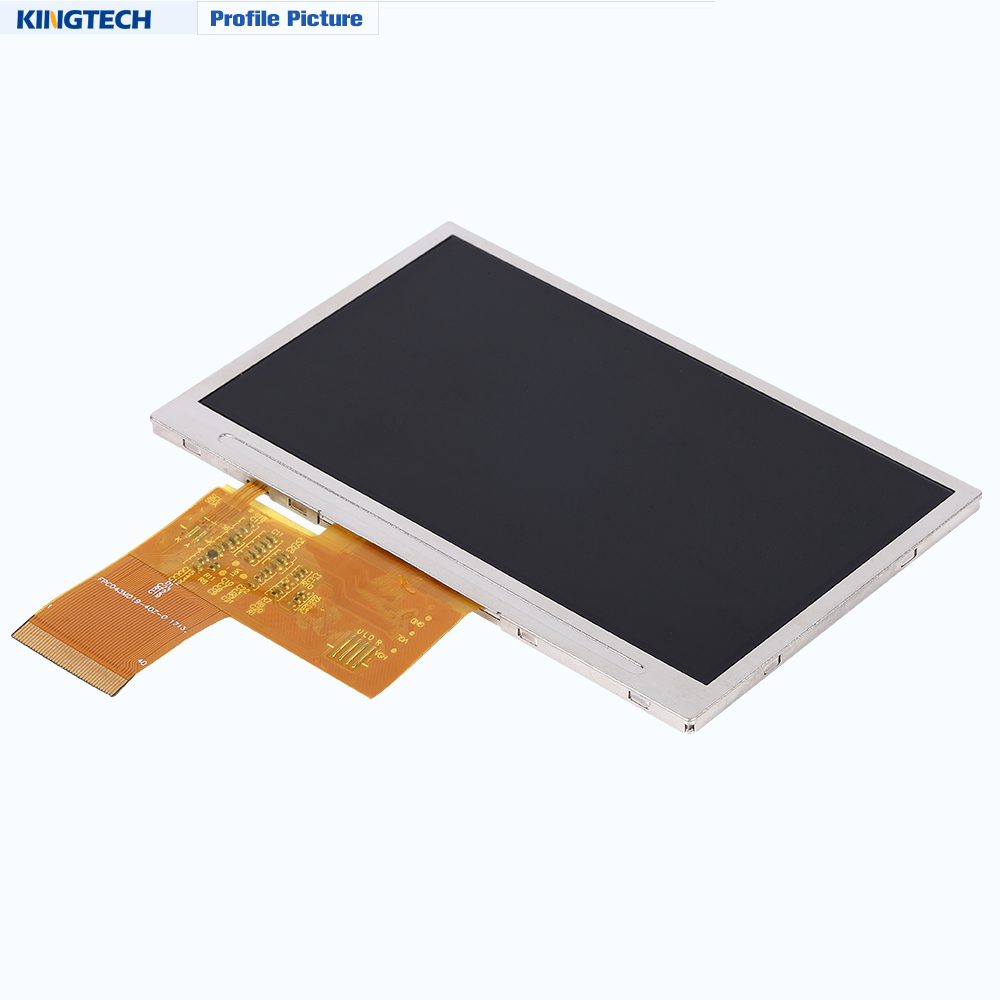

4.3 inch TFT-LCD module WVGA 800×480
| Item | 4.3 inch TFT 800×480 module display |
| Model No. | PV043029Y0130Z-CT |
| Resolution | 800*480 |

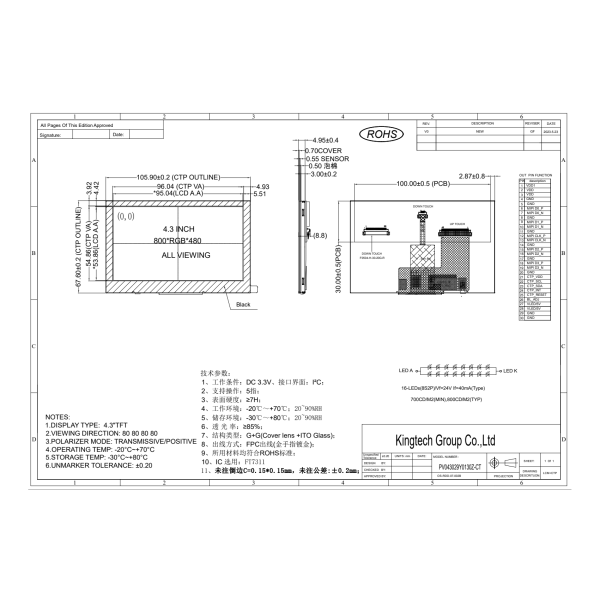

| Outline Dimension (mm) | 105.9*67.60*8.8 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | IPS |
| Brightness | 400-1000nits |
| Interface | MIPI |
| Backlight | 8*2LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Capacitive touch screen |
| Application | Medical, hand-held device, industrial, Smart home Appliance |
For product pricing,customization,or other inquiries:
Share to:
- TFTdisplay
- 800*480 /WVGA
- Stable supply
- All/ Wide/All viewing angle/IPS
- MIPIinterface
- 400-1000nits brightness/Sunlight readable/High brightness
- Capacitive touch
- Medical, industrial, Smart Home Appliance, Security device
