4.3 inch with capacitive touch RGB interface 300nits 480×272 resolution IPS LCD display

Item	4.3 inch 480X272 touch screen
Model No	PV043013HZ40N-CT1
Resolution	480×272
Outline Dimension	105.567.25.02
Active Area(mm)	95.04*53.86
Interface	RGB Interface
Viewing Angle	All
LED life	30000h
Display Mode	Transmissive / Normally Black
Operating Temperature	-30℃ to +80℃
Storage Temperature	-30℃ to +80℃
Brightness	300nits
Touch screen	With capacitive touch

For product pricing,customization,or other inquiries:

4.3 inch with capacitive touch IPS 480×272 resolution RGB interface 300nits brightnes LCD isplay

1. PV043013HZ40N-CT1 mainly application for Industrial ，medical equipment .
2. It with 480×272 resolution , with IPS/ all/ free/ wide view angle, 300 nit high brightness , RGB interface, ST7283 driver IC , existing capacitive touch and resistive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application.

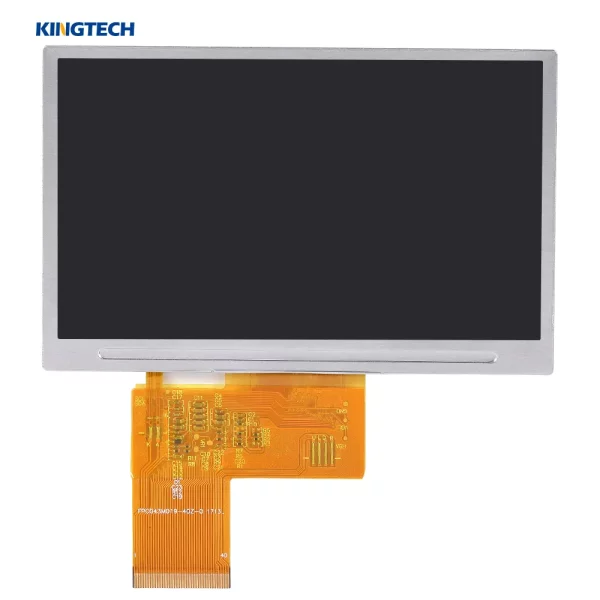

IPS 4.3 inch LCD display front view
