40 pin 480×272 4.3 tft lcd module
| Item | 4.3 inch IPS wvga TFT display |
| Model No | PV04305LZR40E |
| Resolution | 480×272 |
| Outline Dimension | 105.5(W)x67.2(H)x3.0(T) |
| Active Area(mm) | 95.04(W)x53.86(H) |
| Interface | 24bit RGB |
| Viewing Angle | All |
| Driving IC | SC7283 |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 500nits |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
4.3 inch 480×272 resolution RGB 500nits high brightness lcd display
1.PV04305LZR40E mainly application for Industrial ，medical equipment .
2.It with 480×272 resolution , 500nit high brightness, 24bit RGB interface , SC7283 driver IC.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application . It is sunlight readable can be well used for both indoor and outdoor.

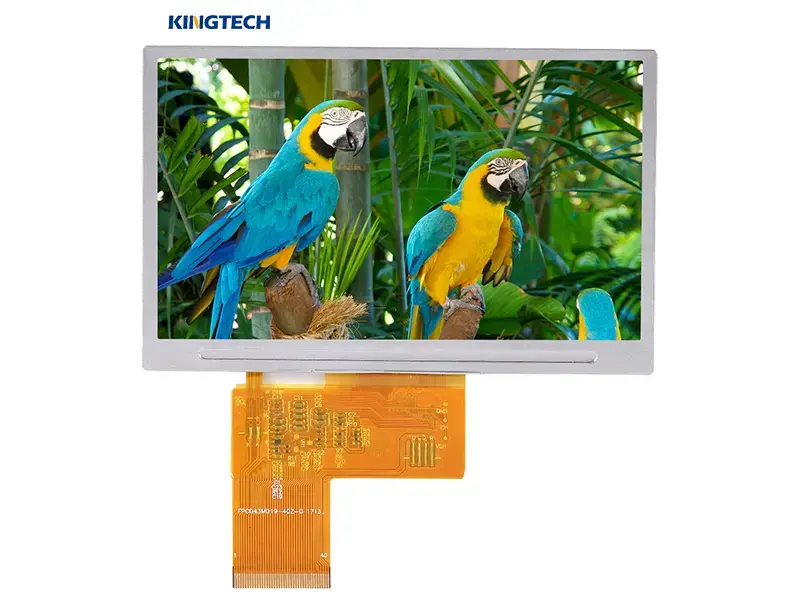

4.3 inch IPS wvga TFT display Front view

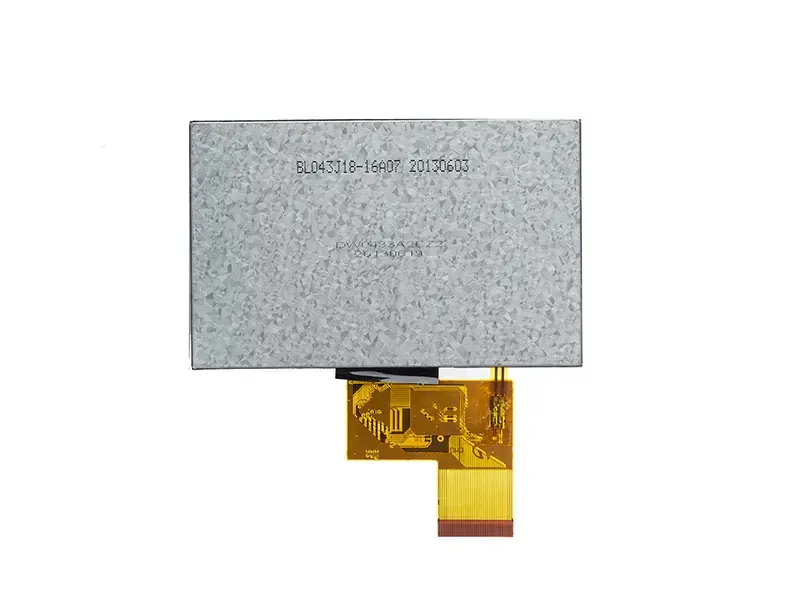

4.3 inch IPS wvga TFT display Back view

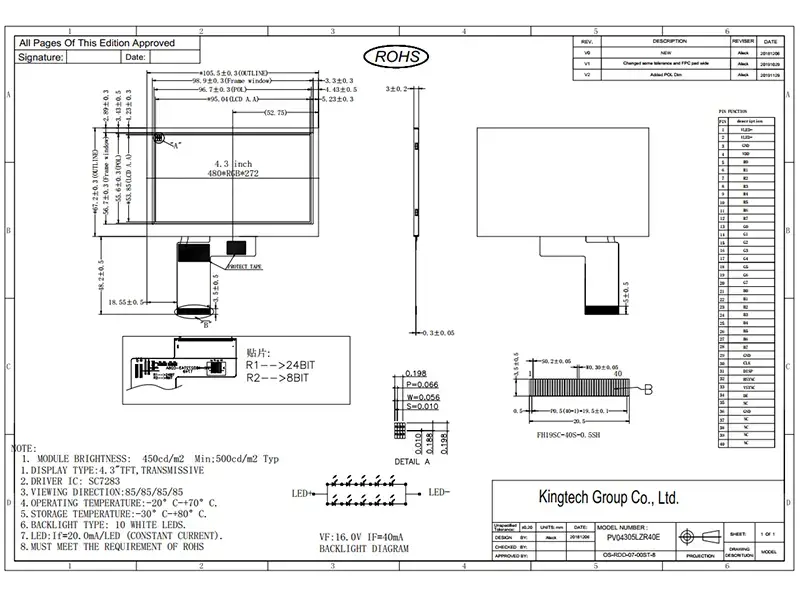

480×272 resolution 4.3 inch lcd display machine drawing
