40 pin 720×720 lcd screen tft monitor 4 inch

Item	4.0 inch 720×720 MIPI display module
Model No	DW04002YB30B-C
Resolution	720×720
Outline Dimension	84.084.02.6
Active Area(mm)	71.93*71.93
Interface	SPI+RGB,I2C+RGB
Viewing Angle	All
Driver IC	YY1821
Display Mode	Transmissive / Normally Black
Operating Temperature	-30℃ to +80℃
Storage Temperature	-30℃ to +80℃
Brightness	300nits
Touch screen	capacitive touch screen

For product pricing,customization,or other inquiries:

4.0 inch 720×720 SPI+RGB infterface IPS 300nits brightness square Transmissive lcd module with capacitive touch scree

1. DW04002YB30B-C mainly application for industrial device , logistics device
2. It with 720×720 resolution , IPS / Free / Full / Wide viewing angle, 300nits brightness, MIPI interface, YY1821 driver IC, existing capacitive touch.
3. And it can custom the capacitive or resistive touch panel as customer ‘s requirement .
4. It is the A grade product , with good quality for the industrial application

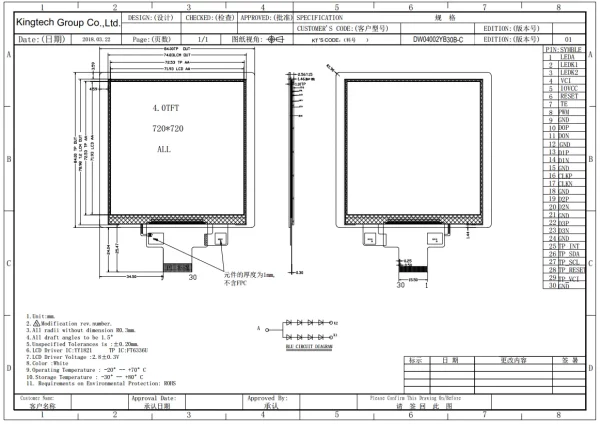

4.0” 720×720 square TFT lcd front view

4 inch front
