480×800 400 nits ST7701S slim 4 inch lcd panel
| Item | TFT LCD module 4.0 inch 480×800 |
| Model No | PV04005TD25E-C |
| Resolution | 480×800 |
| Outline Dimension | 62.5(H)x111.04(W)x3.47(T) |
| Active Area(mm) | 51.84(H)x86.4 (V) |
| Interface | MIPI-2 Lanes |
| Viewing Angle | All |
| Driving IC | ST7701S |
| Display Mode | TFT/TRANSMISSIVE |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 400nits |
| Touch screen | Resistive and capacitive touch screen |
For product pricing,customization,or other inquiries:
Share to:
4 inch 480×800 resolution MIPI interface all view angle lcd touch screen
1.PV04005TD25E-C mainly application for Industrial ，medical equipment .
2.It with 480×800 resolution , MIPI-2 Lanes interface ,ST7701S driver IC , IPS (all ) viewing angle, 400nits brightness, existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

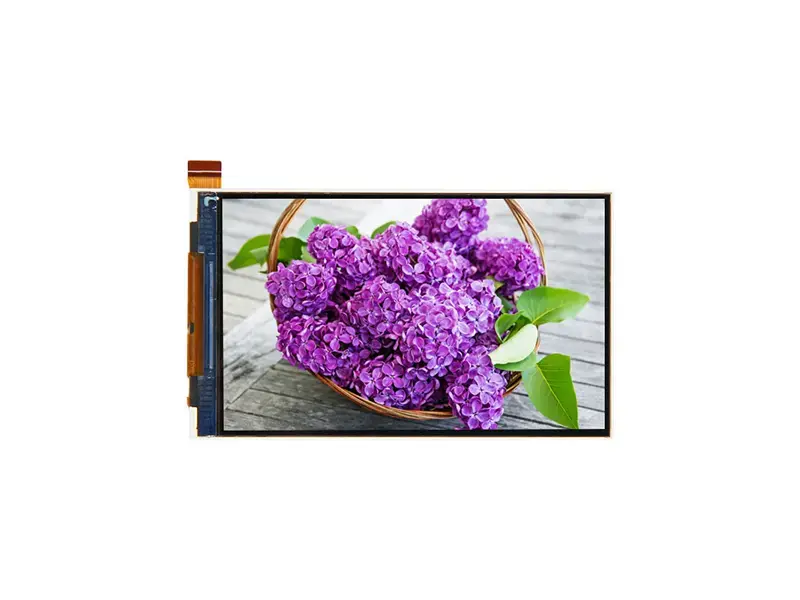

TFT LCD module 4.0 inch 480×800 Front view
