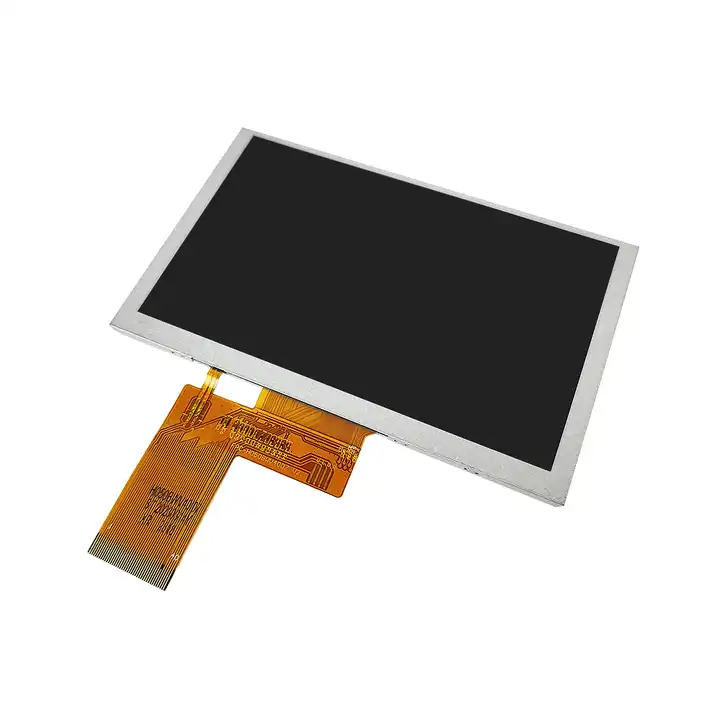

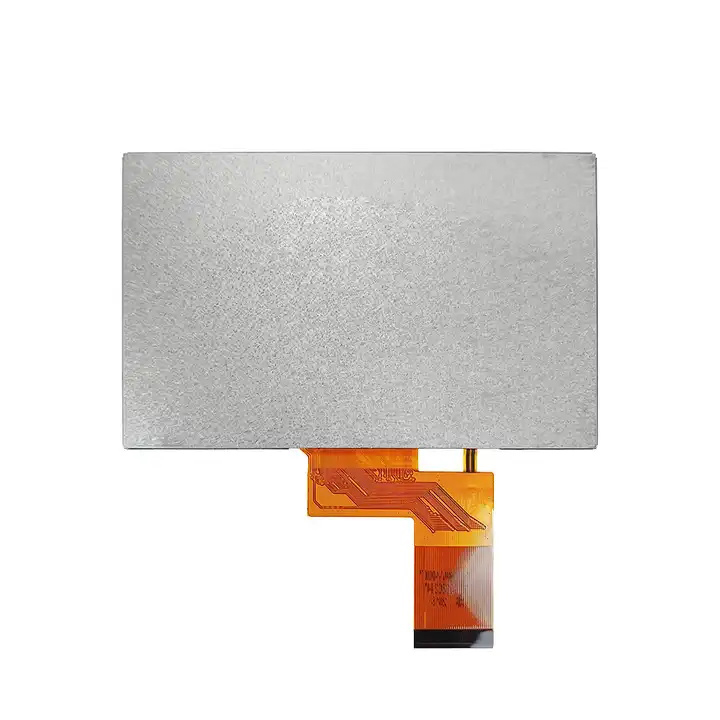

5.0 inch 800*480 TFT module display
| Item | 5.0 inch IPS 800*480 TFT display |
| Model No. | PV05035H0540G |
| Resolution | 800*480 |

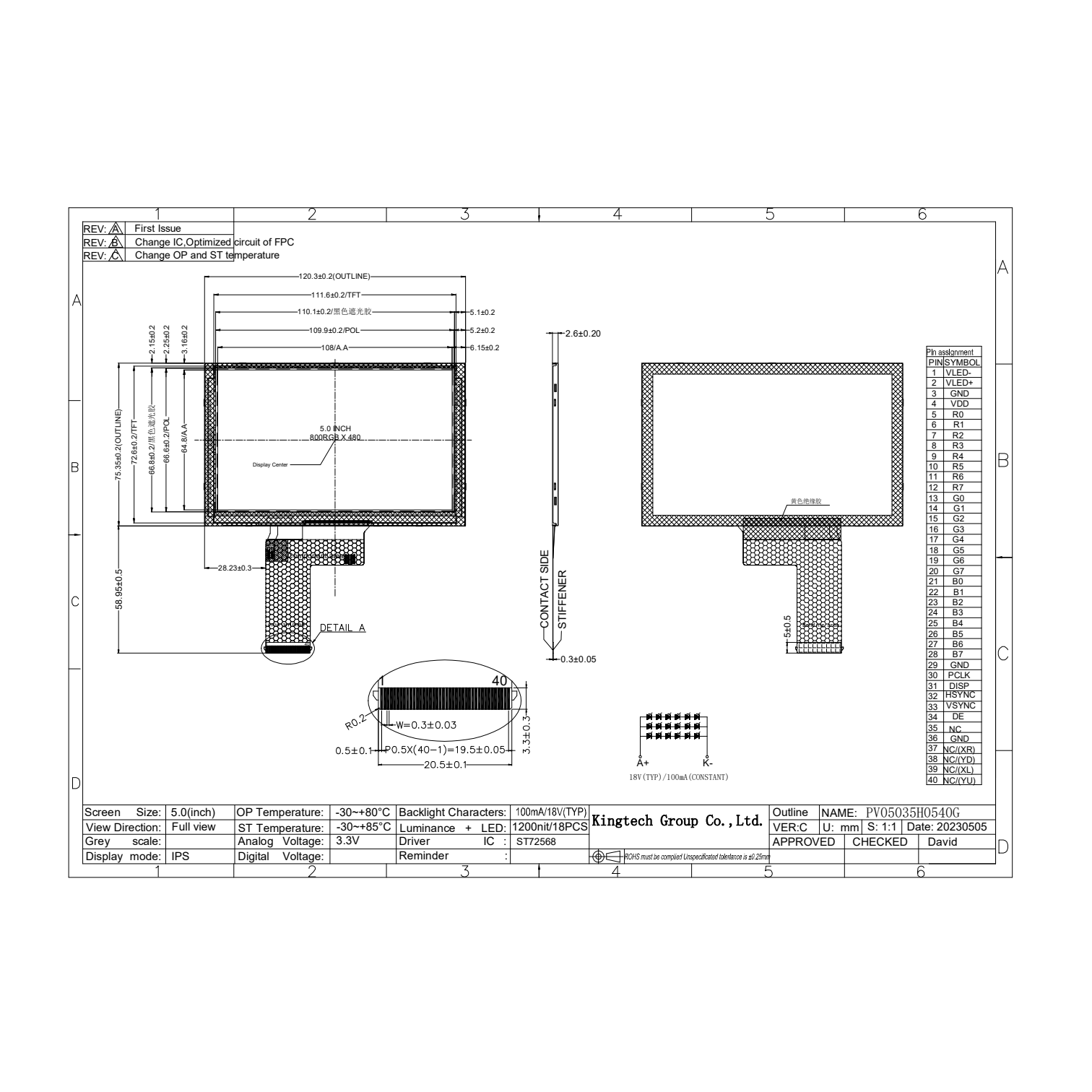

| Outline Dimension (mm) | 120.3 *75.35* 2.6 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1200nits |
| Interface | RGB |
| Backlight | 6*3LED |
| Driving IC | ST72568 |
| PIN No. | 40 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, E-bike |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- WVGA
- Full/Wide/All viewing angle
- Sunlight readable/High brightness/Outdoor device
- Wide working temperature
- Can custom resistive touch and capacitive touch
