5.5 inch 720×1280 resolution MIPI interface IPS portrati LCD display

Item	5.5inch 720×1280 IPS display
Model No	PV05505TD39C-C
Resolution	720×1280
Outline Dimension	144.4(W)x79(H)x2.84(T)
Active Area(mm)	68.04(H)x120.96(V)
Interface	MIPI-4Lanes
Viewing Angle	All
Driving IC	ST7703
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	390nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

5.5 inch 720×1280 resolution MIPI interface IPS portrati LCD display
1.PV05505TD39C-C mainly application for Industrial ，medical equipment .
2.It with 720×1280 resolution , 390nits high brightness , mipi interface , existing capacitive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

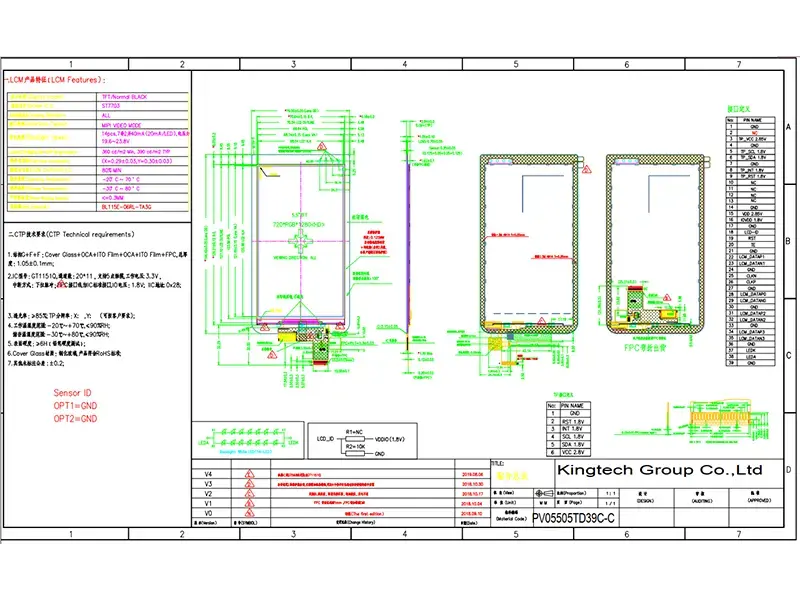

MIPI interface 5.5inch 720×1280 IPS display Front view

PV05505TD39C-C
