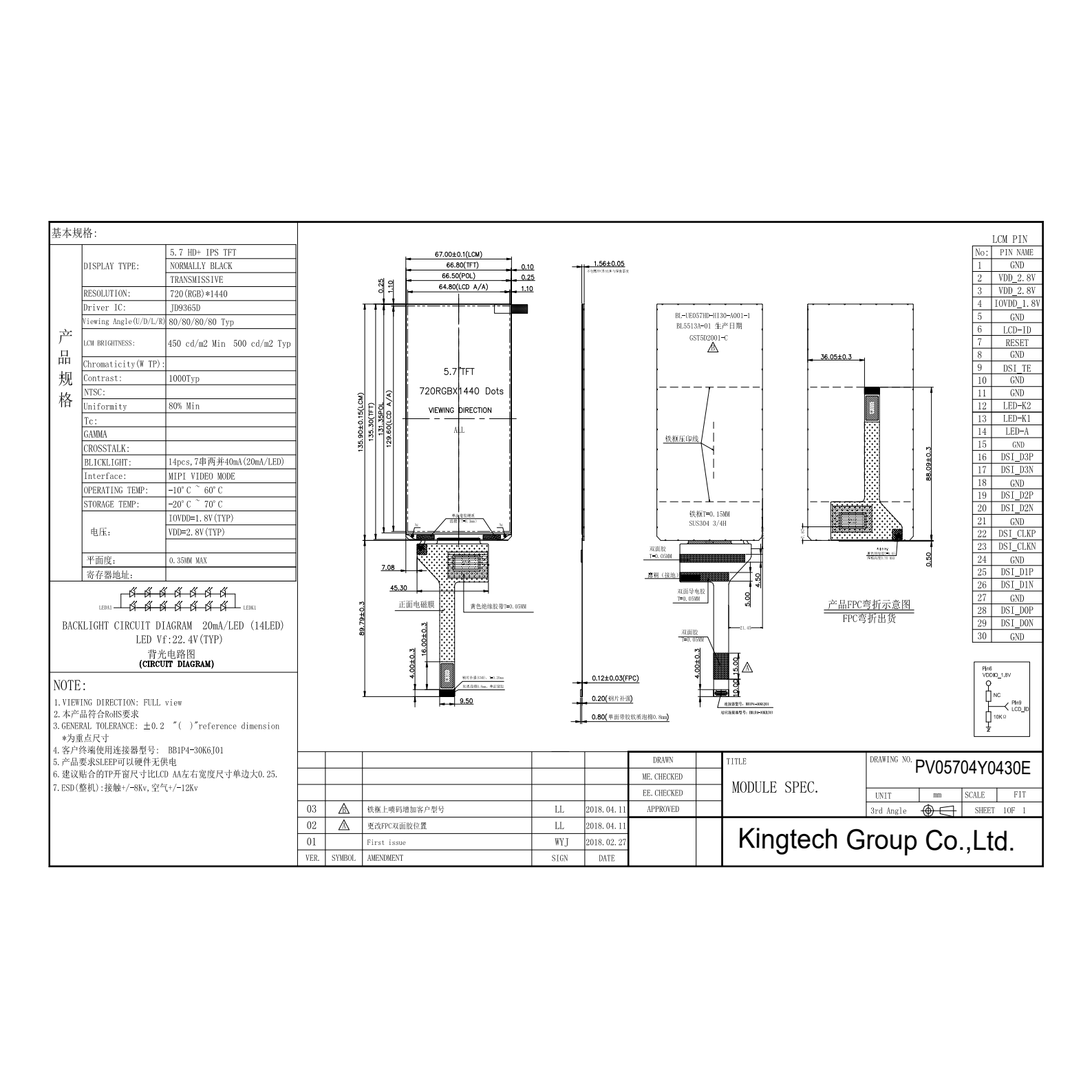

5.7-inch 720*1440 dots TFT LCD module
| Item | 5.7inch 720*1440 LCD Gorilla capacitive touch display |
| Model No. | PV05704Y0430E |
| Resolution | 720*1440 |
| Outline Dimension (mm) | 73.23*145.99*2.93 |
| Active Area (mm) | 64.8*129.60 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI 4 lane |
| Backlight | 7*2LED |
| Driving IC | JD9365D |
| Pin No. | 30 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Capacitive touch optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter, outdoor |
For product pricing,customization,or other inquiries:
Share to:
- 7inch 720*1440LCD with capacitive touch
- Full/Wide/All viewing angle
- High brightness/Sunlight readable/Outdoor
- Support MIPI interface.
- Can custom capacitive touch
