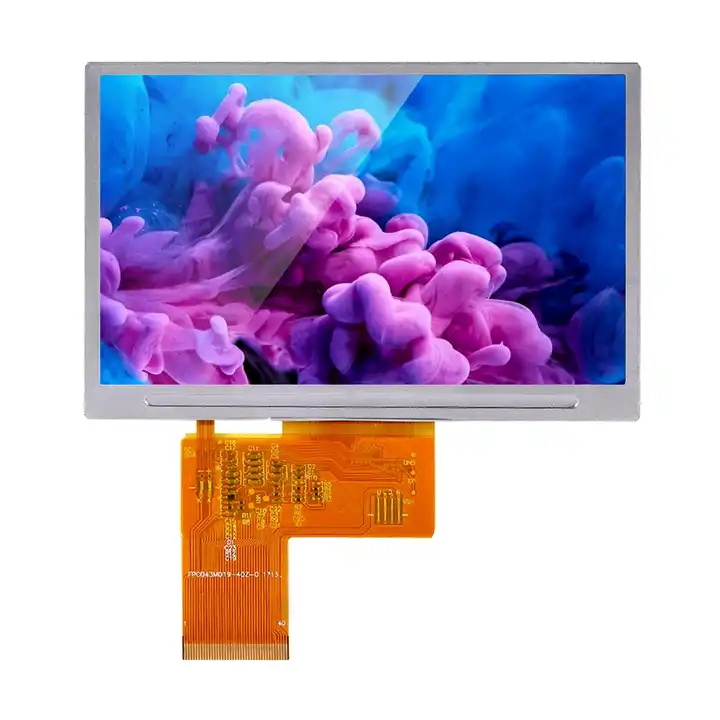

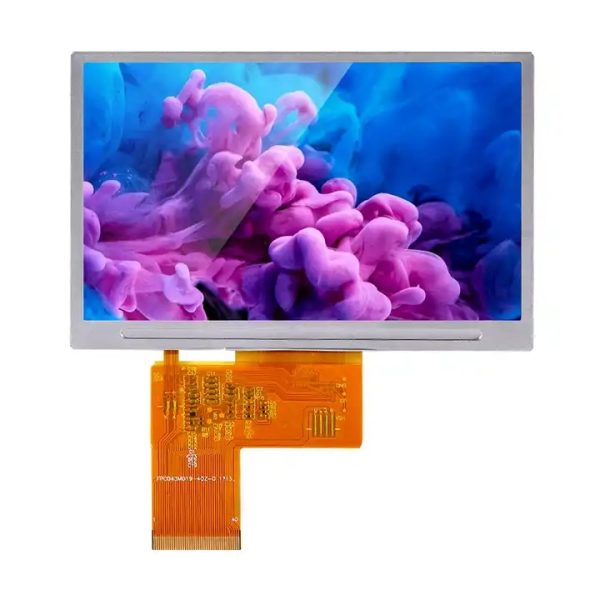

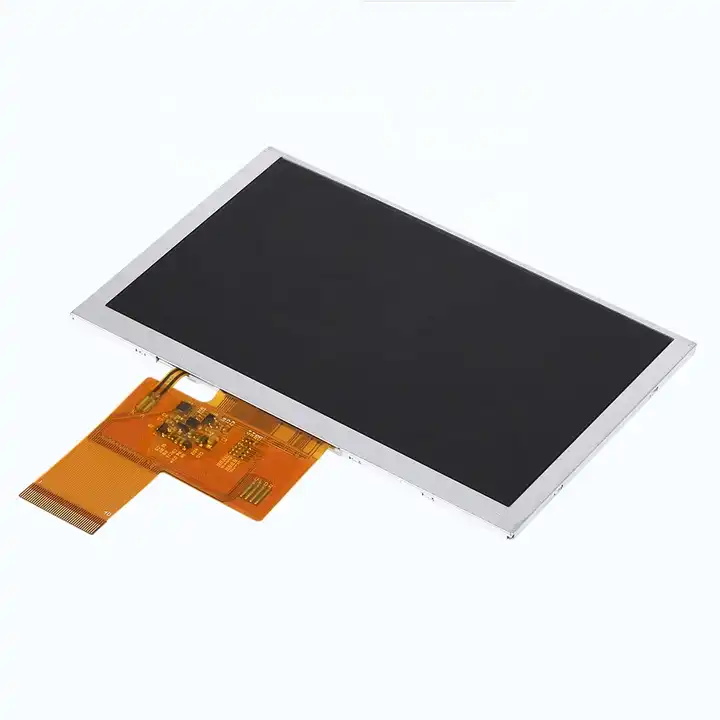

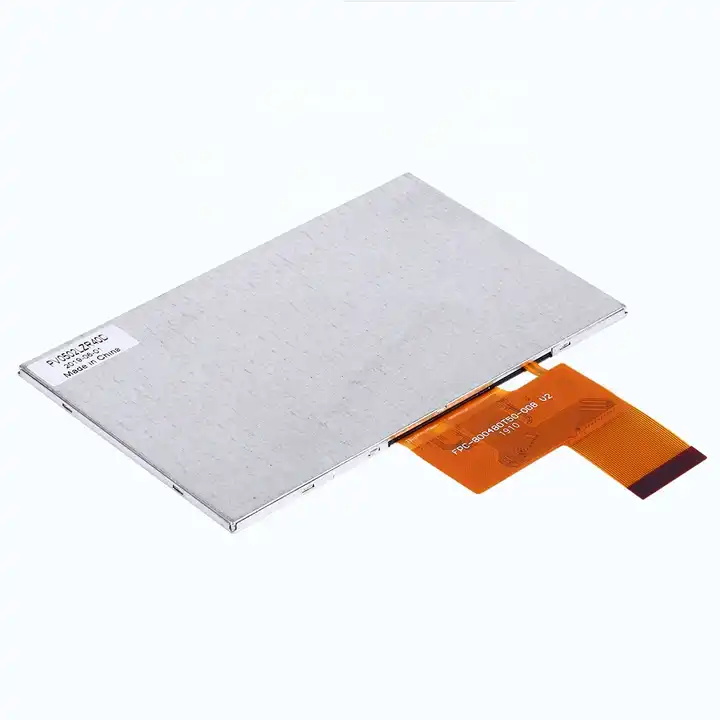

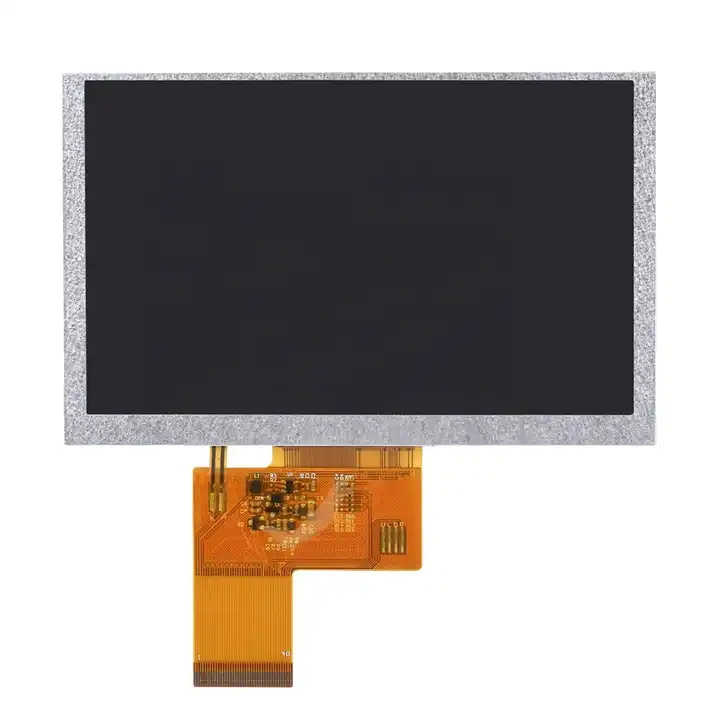

5 inch TFT LCD module resolution is WVGA 800×480 pixels

Item	High brightness 5.0 inch TFT 800×480 module screen
Model No.	PV05030Y0140B
Resolution	800*480

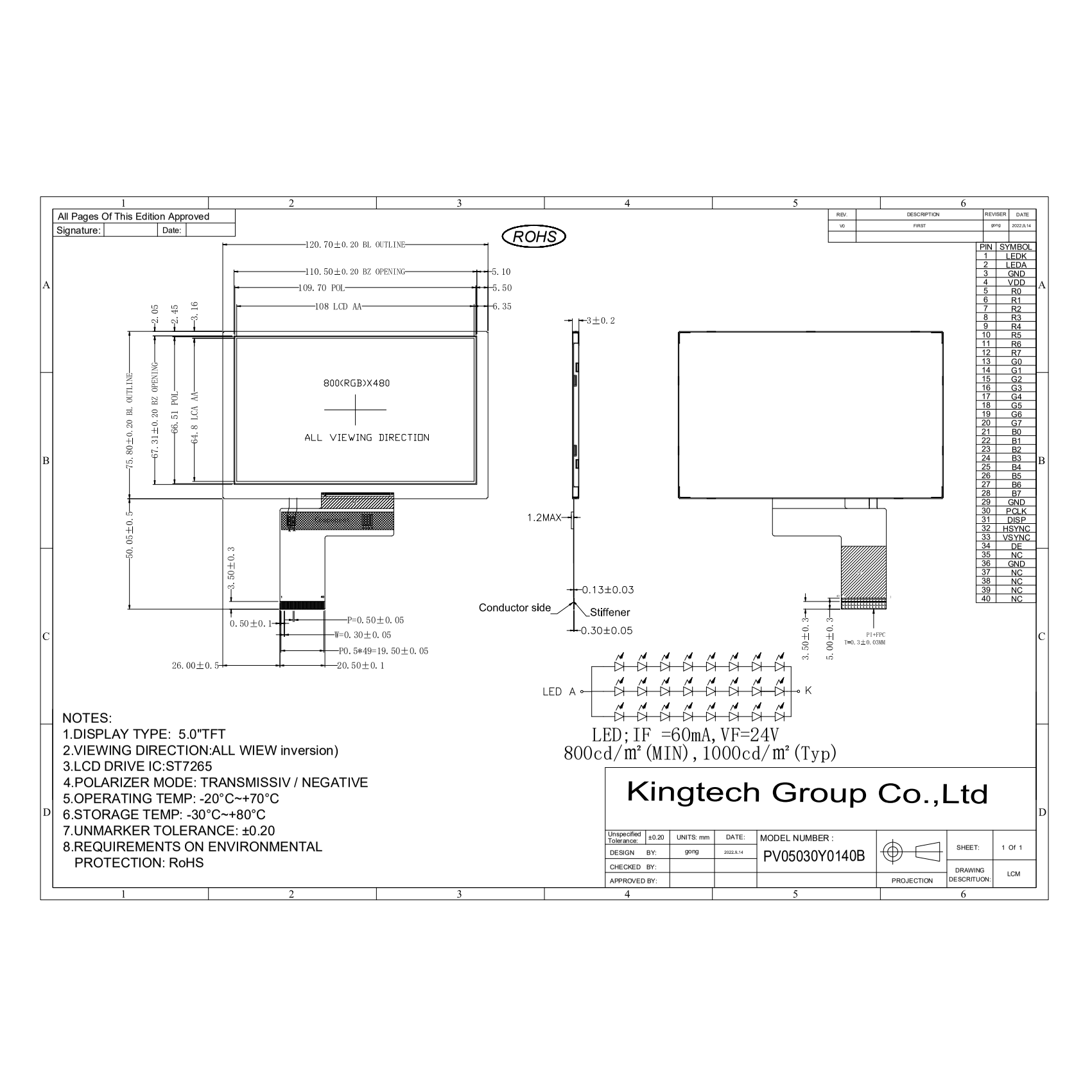

Outline Dimension (mm)	120.775.83.0
Active Area (mm)	108*64.8
Viewing Angle	All
Brightness	1000nits
Interface	RGB Interface
Backlight	8*3LED
Driving IC	ST7265
PIN No.	40
Operating Temperature	-20~70
Storage Temperature	-30~80
Touch screen	Support capacitive touch and resistive touch
Application	Outdoor self service Kiosks, Motorcycle or Scooter Dashboard,Gas pump,EV charging station,GPS devices

For product pricing,customization,or other inquiries:

5.0 inch TFTdisplay
800*480 /WVGA
Stable supply
Full View angle
RGB Interface
1000nits brightness
With capacitive touch and resistive touch
Outdoor use: Outdoor self service Kiosks,Motorcycle or Scooter Dashboard, Gas pump, EV charging station, GPS device, Fish Finder, Yacht & speed-boat control panels, radios, and navigation displays
