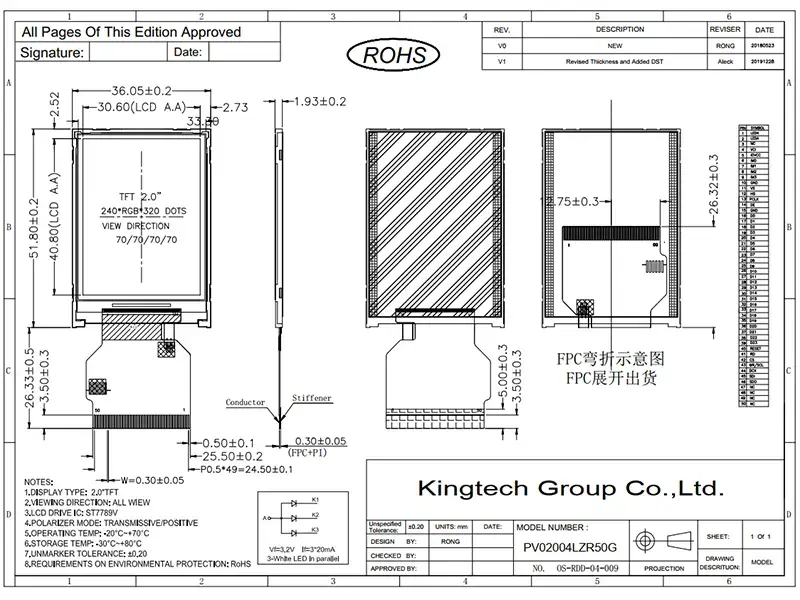

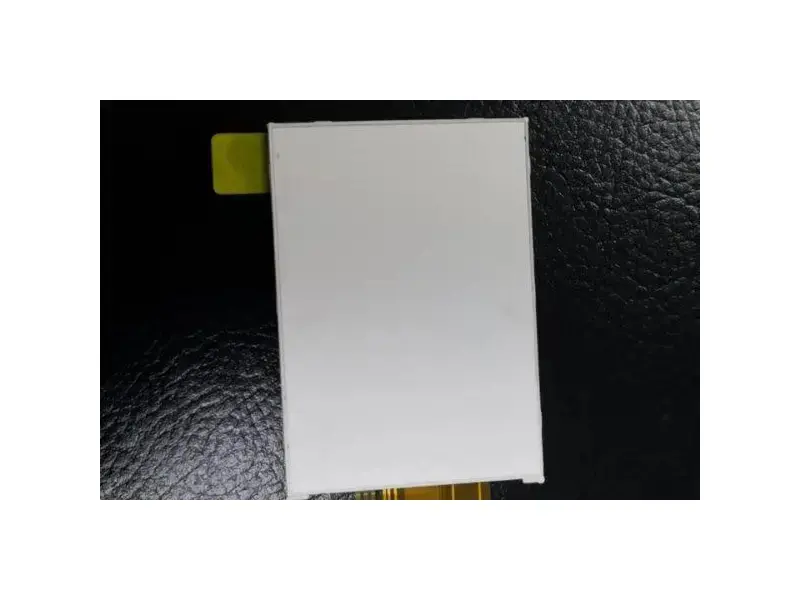

50 pins IPS ST7789V lcd screen 2 inch
| Item | 2.4inch rectangle TFT LCD module |
| Model No | PV02004LZR50G |
| Resolution | 240×320 |
| Outline Dimension | 36.05(W)x51.80(H)x1.78(T) |
| Active Area(mm) | 30.60(W)x40.80(H) |
| Interface | i80-system 8/16/18-bit MCU interface 3SPI/4SPI/ 16/18-bit RGB interface |
| Viewing Angle | All |
| Driving IC | ST7789V |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 400nits |
| Touch screen | Resistive and capacitive touch screen |
