6.5 inch 640*480 LCD Kingtech PV065000SW20A is specially designed for places with harsh temperature conditions
| Item | 6.5inch 640*480 LCD module display for vehicle |
| Model No. | PV065000SW20A |
| Resolution | 640*480 |

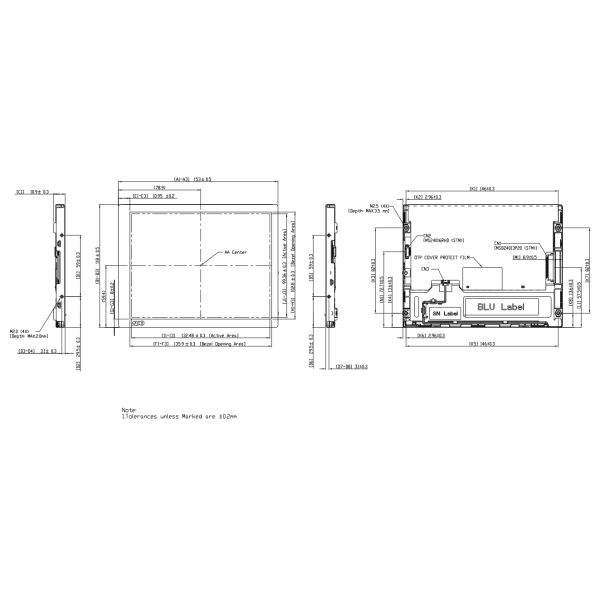

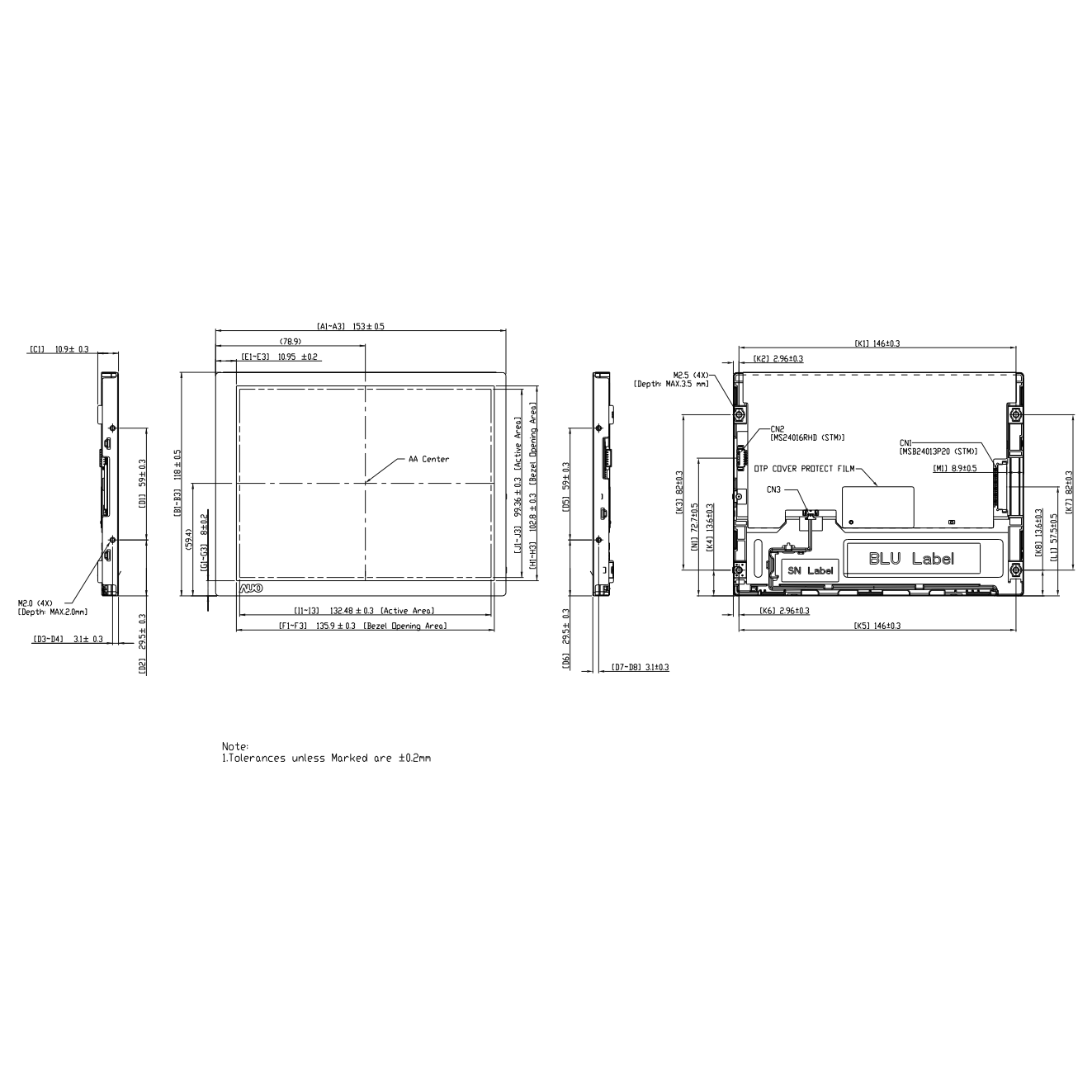

| Outline Dimension (mm) | 153.0*118.0*10.9 |
| Active Area (mm) | 132.48*99.36 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | LVDS |
| Backlight | / |
| Driving IC | TD4310 |
| PIN No. | 20 |
| Operating Temperature | -30~80C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive and capacitive touch optional |
| Application | Industrial,Medical,Handheld display devices, vehicle monitors, portable smart devices and temperature monitoring systems, outdoor |
For product pricing,customization,or other inquiries:
Share to:
- 6.5 inch 640*480 LCD
- Wide temperature:-30-80
- Full/All/Wide viewing angle
- High brightness/Sunlight readable/Outdoor
- Landscape
- LVDS interface:ensure accurate image transmission
- Touch optional
