Outdoor active matrix ips tft module display 1024×600 lcd 7

Item	7.0 inch IPS 1024×600 TFT module display
Model No	PV07025LZR50A
Resolution	1024×600
Outline Dimension	164.90(W)100.00(H)5.6(T)
Active Area(mm)	154.21(W)*85.92(H)
Interface	24-bit Parallel RGB Interface
Viewing Angle	All
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	-20 to +70℃
Storage Temperature	-30 to +80℃
Brightness	1000nits
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

7 inch 800×480 resolution TTL/RGB interface IPS LCD display
1.PV07028LSB40D mainly application for Industrial ，medical equipment .
2.It with 800X480 resolution , TTL/RGB interface ,wide work temperature -30~85 degrees , square 1:1 pixel
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

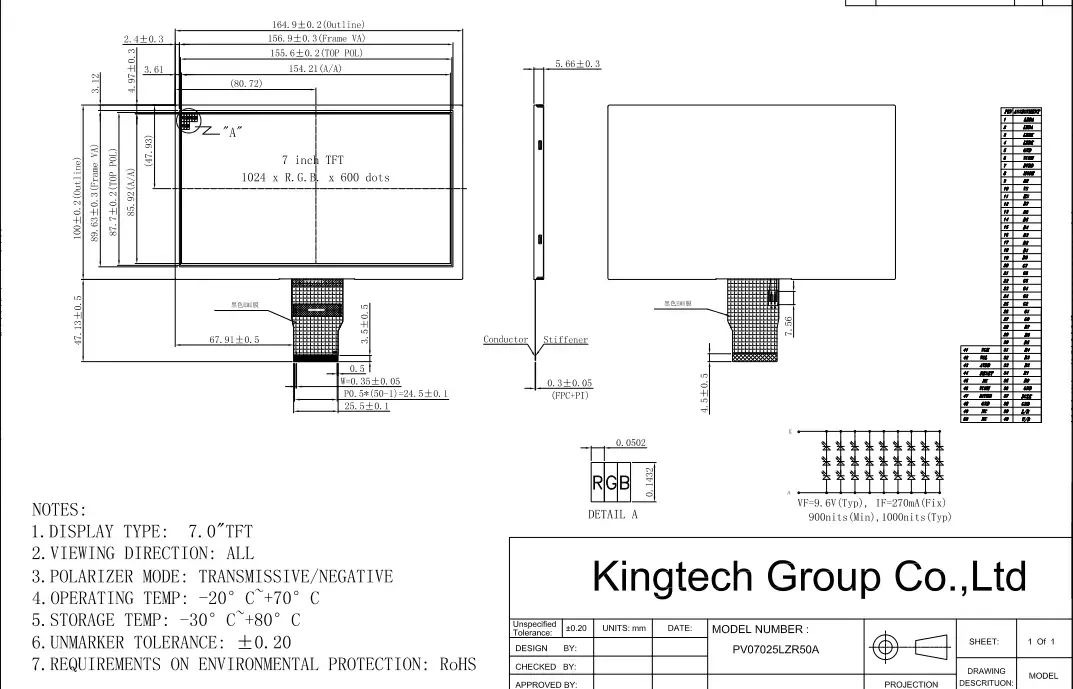

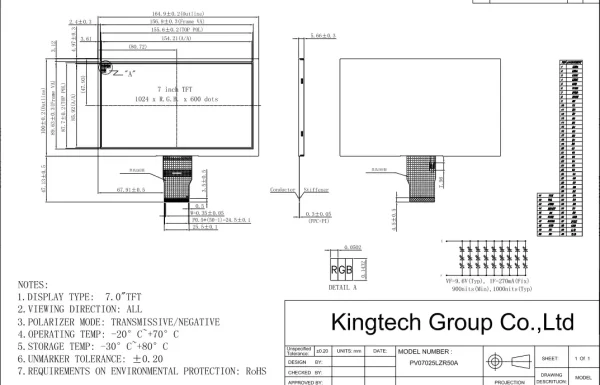

7.0 inch IPS 1024×600 TFT module display Front view

7.0 inch IPS 1024x600 TFT module display
