7 inch 800×480 resolution RGB interface TFT LCD with resistive touch
| Item | 7 inch 800×480 touch LCD display |
| Model No | PV07002LZR40B-R1 |
| Resolution | 800×480 |
| Outline Dimension | 164.9(W)×100(H)×7.0(T) |
| Active Area(mm) | 154.08(W)×85.92(H) |
| Brightness | 240nits |
| Viewing Angle | 12 O’clock |
| Interface | 24-bit Parallel RGB Interface |
| Driver IC | HX8664-B+HX8264-E |
| PIN | 40 |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Touch | Resistive touch screen |
For product pricing,customization,or other inquiries:
Share to:
7 inch 800×480 WVGA RGB interface IPS LCD with resistive touch
1. PV07002LZR40B-R1 mainly application for Industrial ,medical equipment or outdoor device.
2. It with 800×480 resolution, 24-bit Parallel RGB Interface, 240nits and 1000nit brightness, HX8664-B+HX8264-E driver IC, existing resistive touch.
3. It also can custom touch panel as customer ‘s requirement .
4. It is high brightness can be sunlight readable , can be well used for both indoor and outdoor .

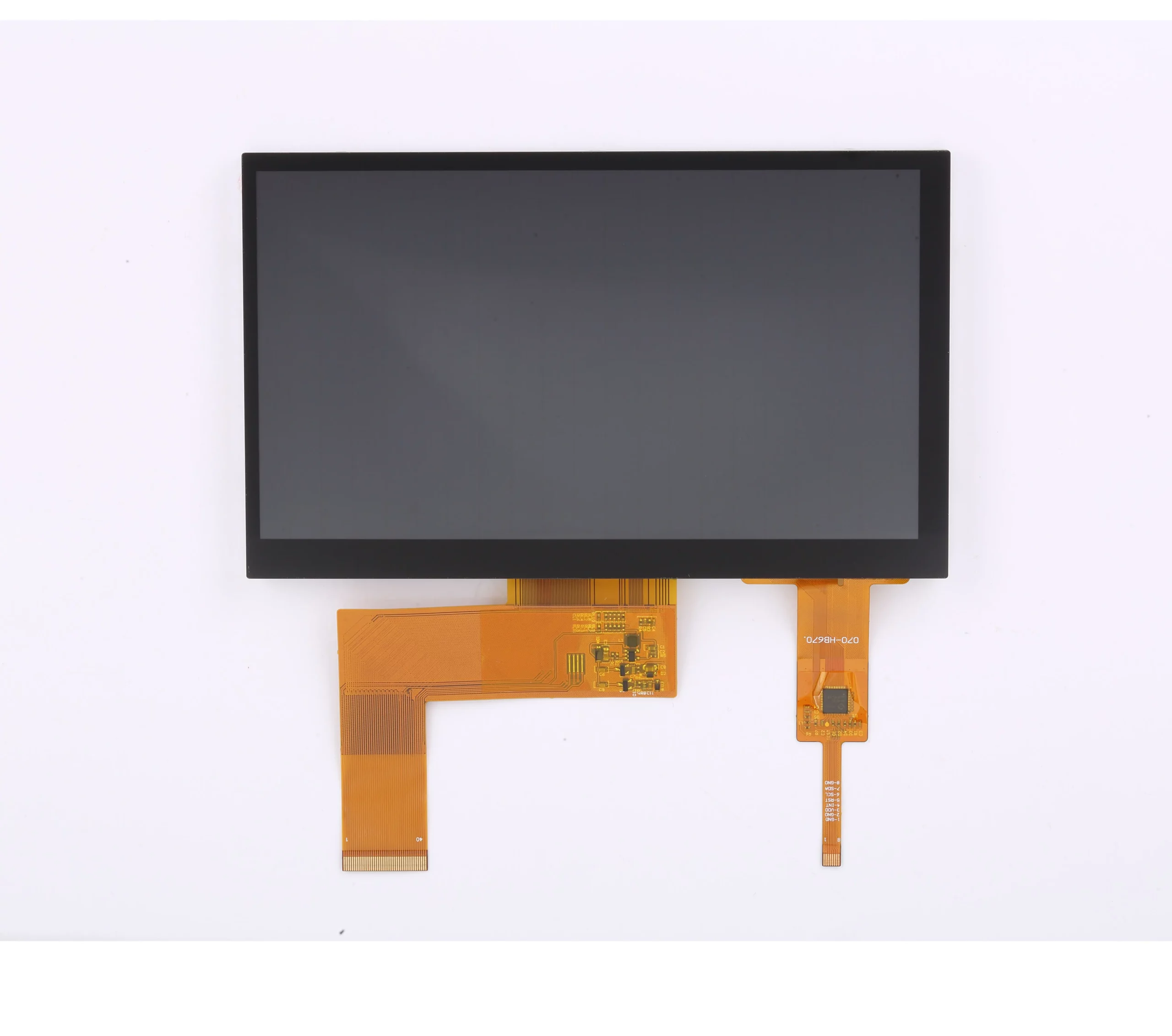

7 inch 800×480 touch LCD display fornt view

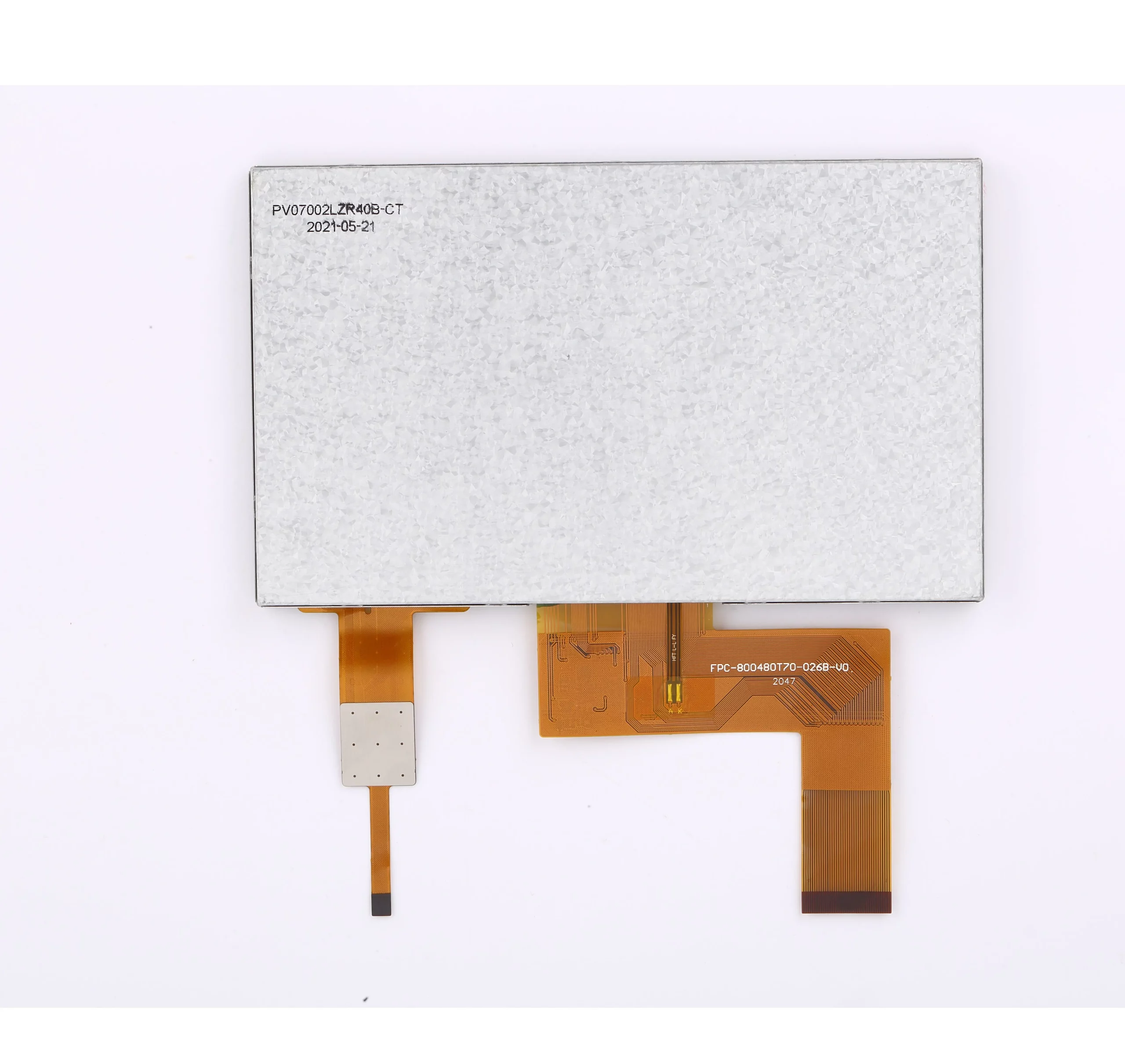

7 inch 800×480 capacitive touch display back view
7 inch 800×480 high brightness TFT LCD HDMI board

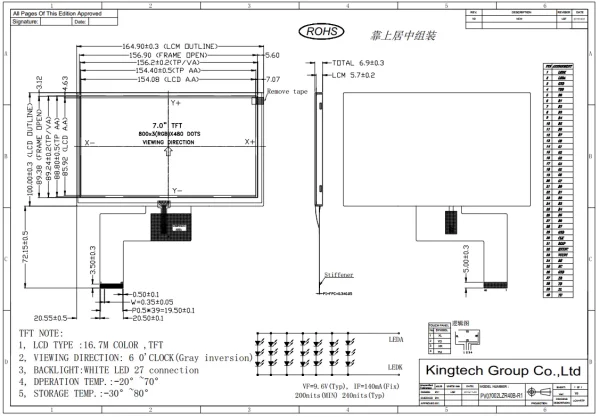

7” RGB display with resistive touch panel Machine Drawing
