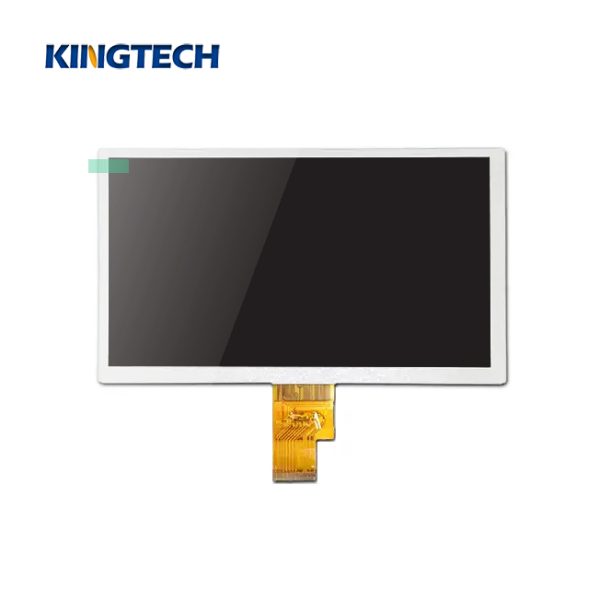

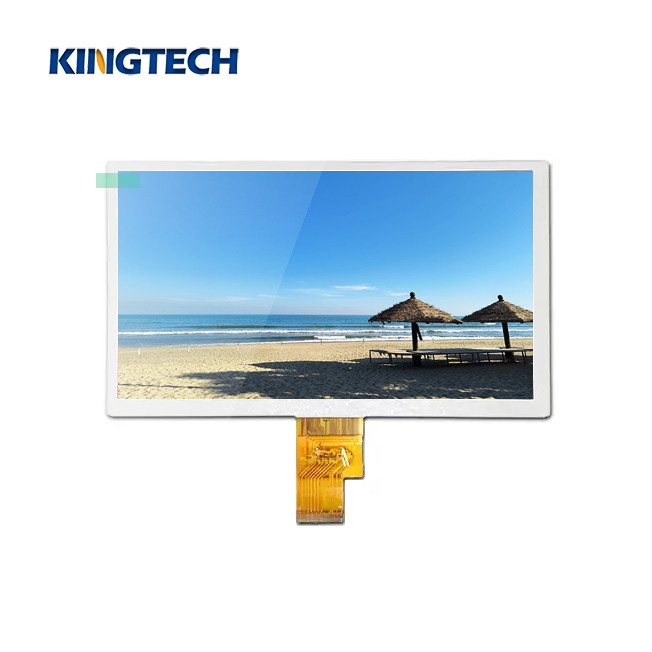

8.0 inch 1024×600 TFT LCD display
| Item | 8.0 inch TFT 1024×600 module display |
| Model No. | PV08013Y0140N |
| Resolution | 1024*600 |

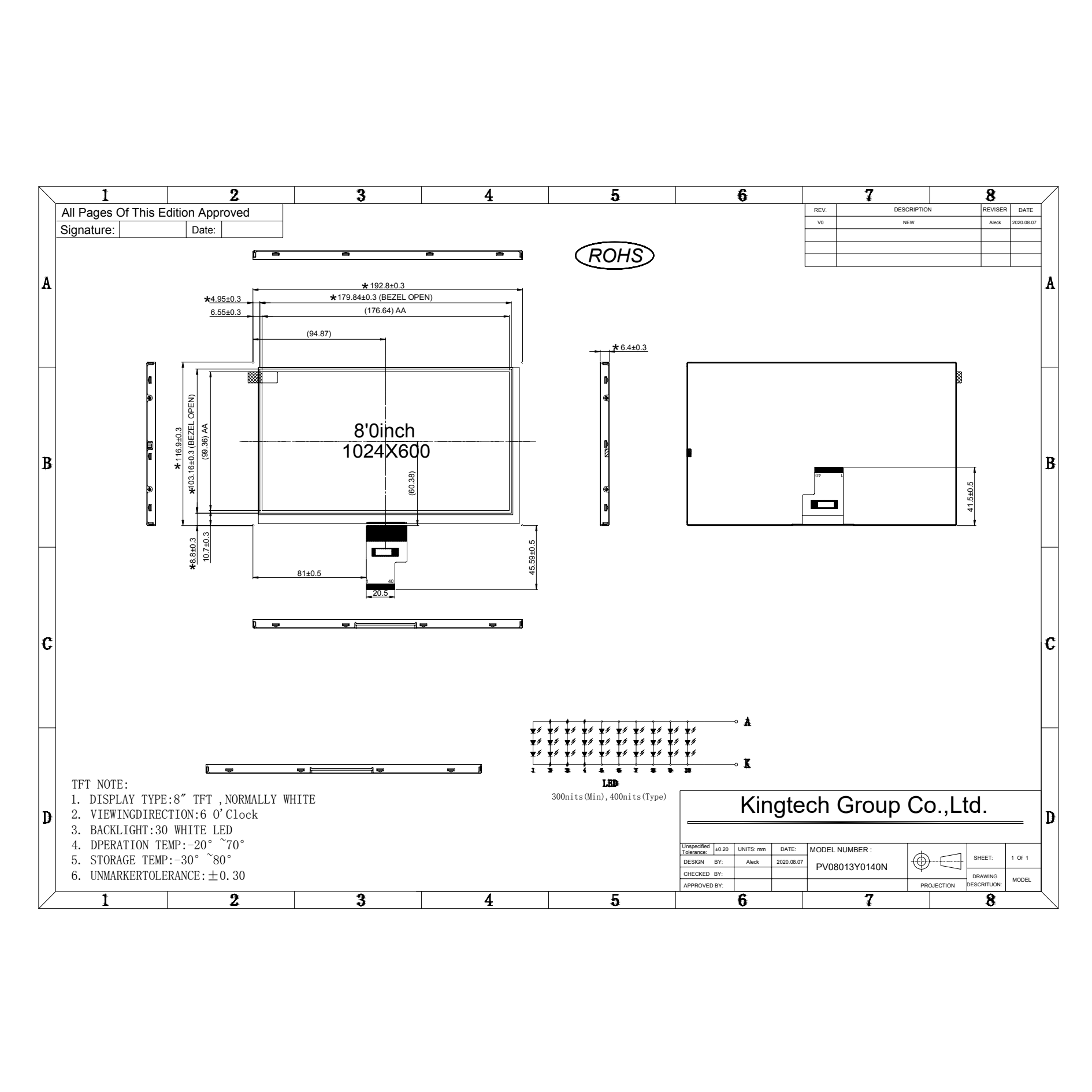

| Outline Dimension (mm) | 192.8*116.9*6.40 |
| Active Area (mm) | 176.64*99.36 |
| Viewing Angle | 6 O‘clock |
| Brightness | 300nits |
| Interface | LVDS |
| Backlight | 3*10LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch and resistive touch |
| Application | industrial application, and IOT, medical, automotive, home application, advertising display, measuring equipment. |
For product pricing,customization,or other inquiries:
Share to:
- 8 inch TFTLCD display
- 1024×600
- Stable supply
- 6 o’clock
- LVDS Interface
- 400 brightness
- Touch Optional
- Industrial application, and IOT, medical, automotive, home application, Security equipment
