9.7 inch 1024×768 TFT LCD module

Item	9.7 inch TFT LCD module
Model No	PV09704TX30D
Resolution	1024×768
Outline Dimension	210.10(W) ×164.25(H) ×4.8(D) mm
Active Area(mm)	196.608(W) ×147.456(H) mm
Interface	LVDS
Viewing Angle	IPS
Display Mode	TFT/TRANSMISSIVE
Operating Temperature	0~50
Storage Temperature	-20~60
Brightness	500NITS
Touch screen	Resistive and capacitive touch screen

For product pricing,customization,or other inquiries:

9.7 inch 1024×768 resolution LVDS IPS TFT LCD display
1.PV09704TX30D mainly for industrial application .
2.It with 1024×768 resolution , LVDS interface , IPS view angle , 500nit brightness .
3.And it can custom the capacitive resistive touch panel as customer ‘s requirement .
4.It is the A grade product , with good quality for the industrial application .

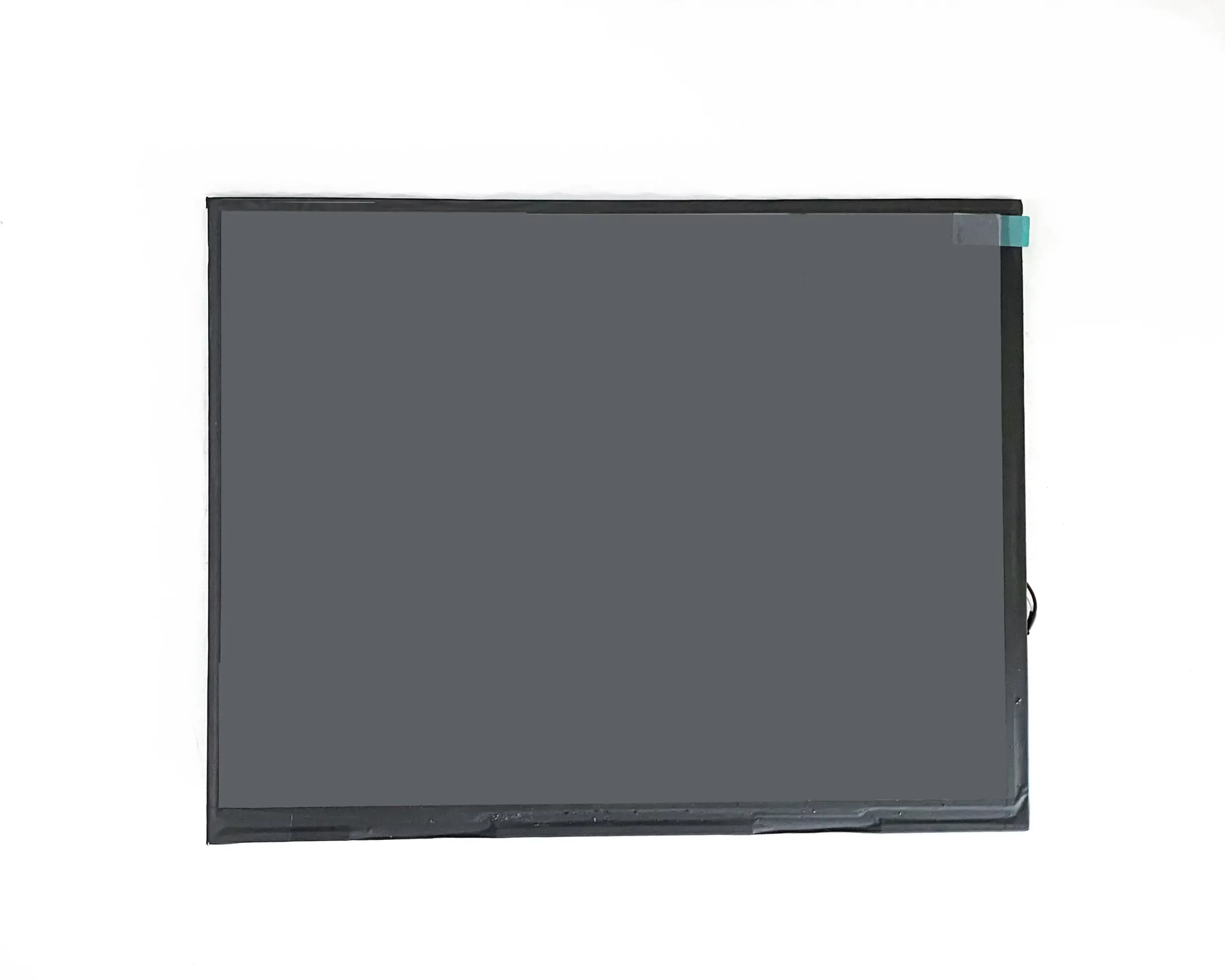

1024×768 resolution 9.7 inch LCD module Front View

9.7 inch 1024x768 TFT LCD module
